How to Replace a ZS3-4 Memory
7.

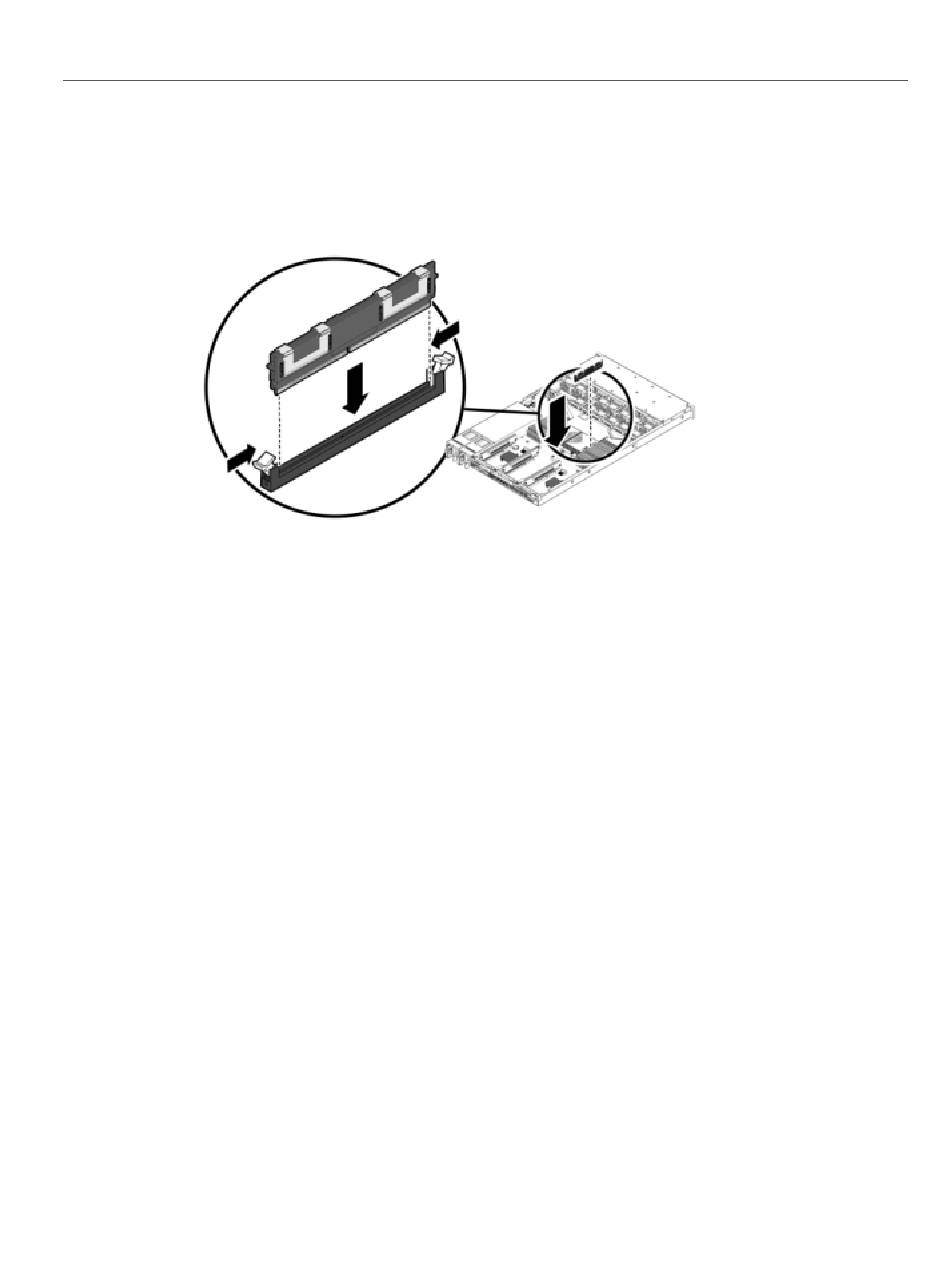

Line up the replacement DIMM with the connector, aligning the notch with the
key to ensure that the component is oriented correctly.
8.
Push the DIMM into the connector until the ejector tabs lock the component in
place.
To replace the cover:
9.
100
Oracle ZFS Storage Appliance Customer Service Manual • February 2016
