labeling are correctly positioned. The fan modules are keyed to ensure that they
are installed in the correct orientation.

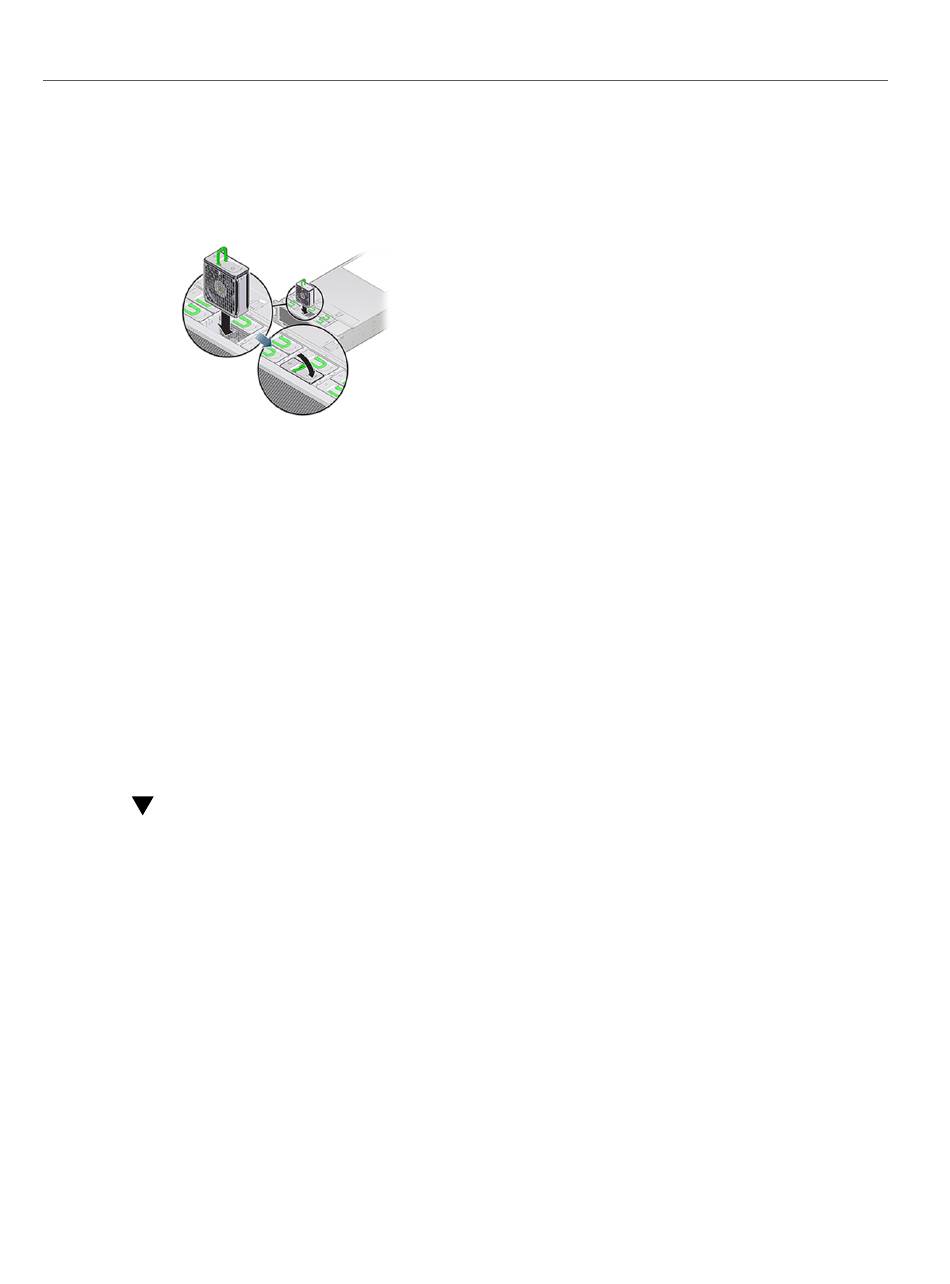

8. Slide the fan module into the slot until it stops.
9. Press downward on the top of the fan module, on the Press Here to Latch label,
until the fan module is fully seated.
10. Replace the top cover on the chassis.
11. Return the controller to the normal rack position by pushing the release tabs on
the side of each rail while slowly pushing the storage controller into the rack.
Verify that the green OK indicator is lit.
12.
Verify that the Top Fan indicator and the Service Action Required indicator on
13.
the front panel are not lit.
How to Identify a Faulted ZS4-4 Memory Module
Replacing a DIMM is a cold-swap procedure, and you must remove power from the storage
controller. Use the following procedure to identify a faulted ZS4-4 memory module.
1. To identify a general memory fault, go to the Maintenance > Hardware screen of
the BUI, and click the right-arrow icon for the controller. Then click DIMM and
note the ID of the faulted module, which has an amber icon. To highlight the
location of the memory module in the controller picture, click on the module ID.
To view details about the faulted module, click its information icon and then click
Active Problems.
2. Shut down the controller using one of the power-off methods described in
to Power off the Controller" on page
How to Identify a Faulted ZS4-4 Memory Module
41.
"How
