7420 Controller Fan Module LEDs

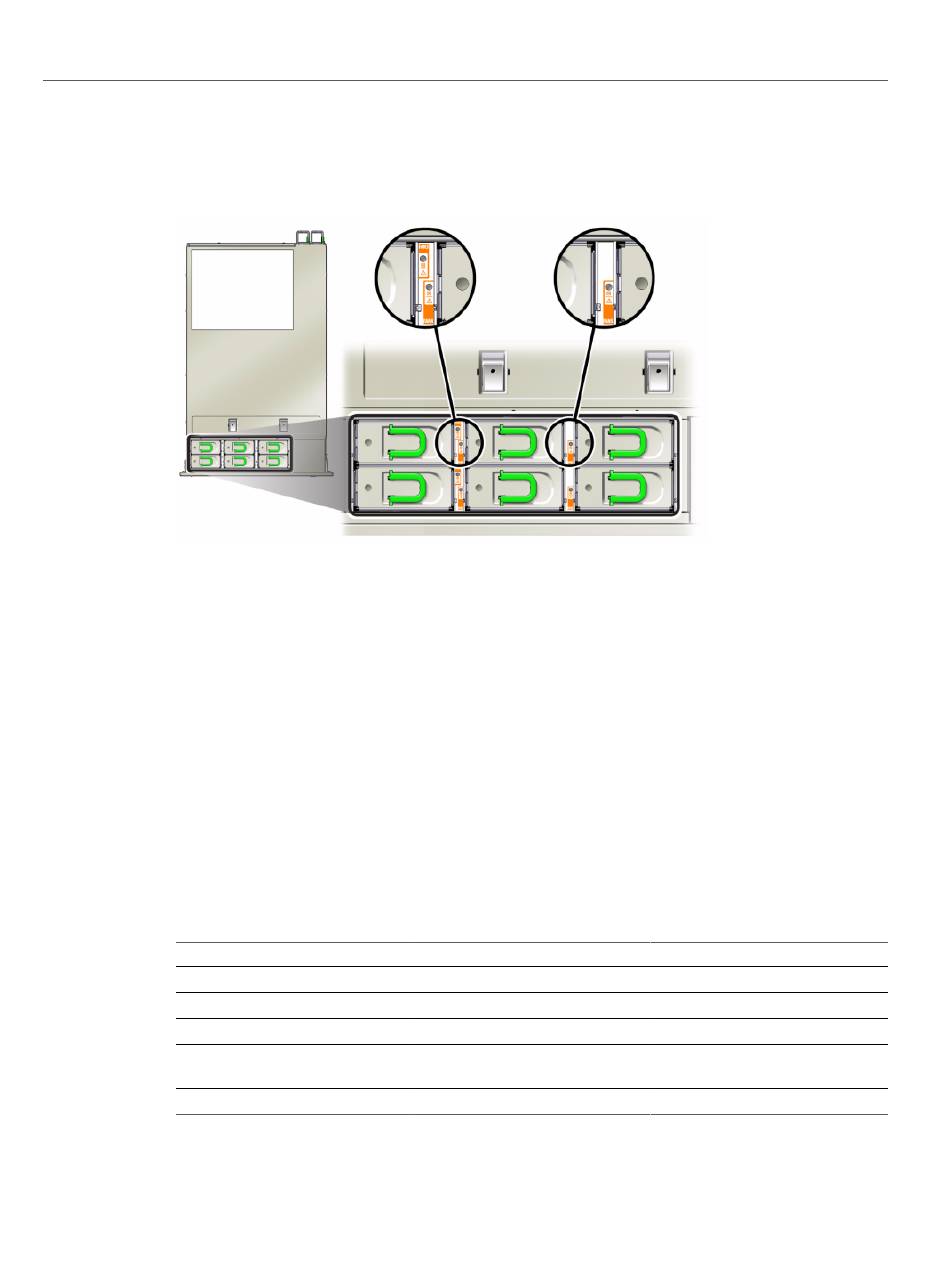

FIGURE 42
Front and rear Service Action Required LEDs
■
Fan Module Service Action Required (TOP) LED on the front of the server
■
Fan Fault LED on or adjacent to the faulty fan module
■
The system Overtemp LED might light if a fan fault causes an increase in system operating
temperature.
7420 NIC/HBA Options
This table describes NIC/HBA PCIe card options for standalone and cluster configurations.
TABLE 31 7420 Controller NIC/HBA Options
Mktg Part Number
SGX-SAS6-INT-Z
SG-XPCIE2FC-QF8-Z
SG-XPCIESAS-GEN2-Z
7105394
X4446A-Z-N
Description
8-port 6Gb/s SAS-2 internal HBA
2-port 8Gb FC HBA
2-port SAS (x4) external HBA
2-port SAS (x4) external HBA for
EU countries
4-port GigE UTP
Servicing the 7x20 Controller
Mfg Part Number
7054001
371-4325-02
F375-3609-03
7059331
7054739
