Servicing the ZS3-4 Controller
FIGURE 19
DIMM names in appliance logs and the Maintenance > Hardware view are displayed with the
full name, such as /SYS/MB/P0/D7.
ZS3-4 Fan Modules
The Fan Modules and Fan Module LEDs of the controller are shown in the following figure.
The following LEDs are lit when a fan module fault is detected:
84
Oracle ZFS Storage Appliance Customer Service Manual • February 2016

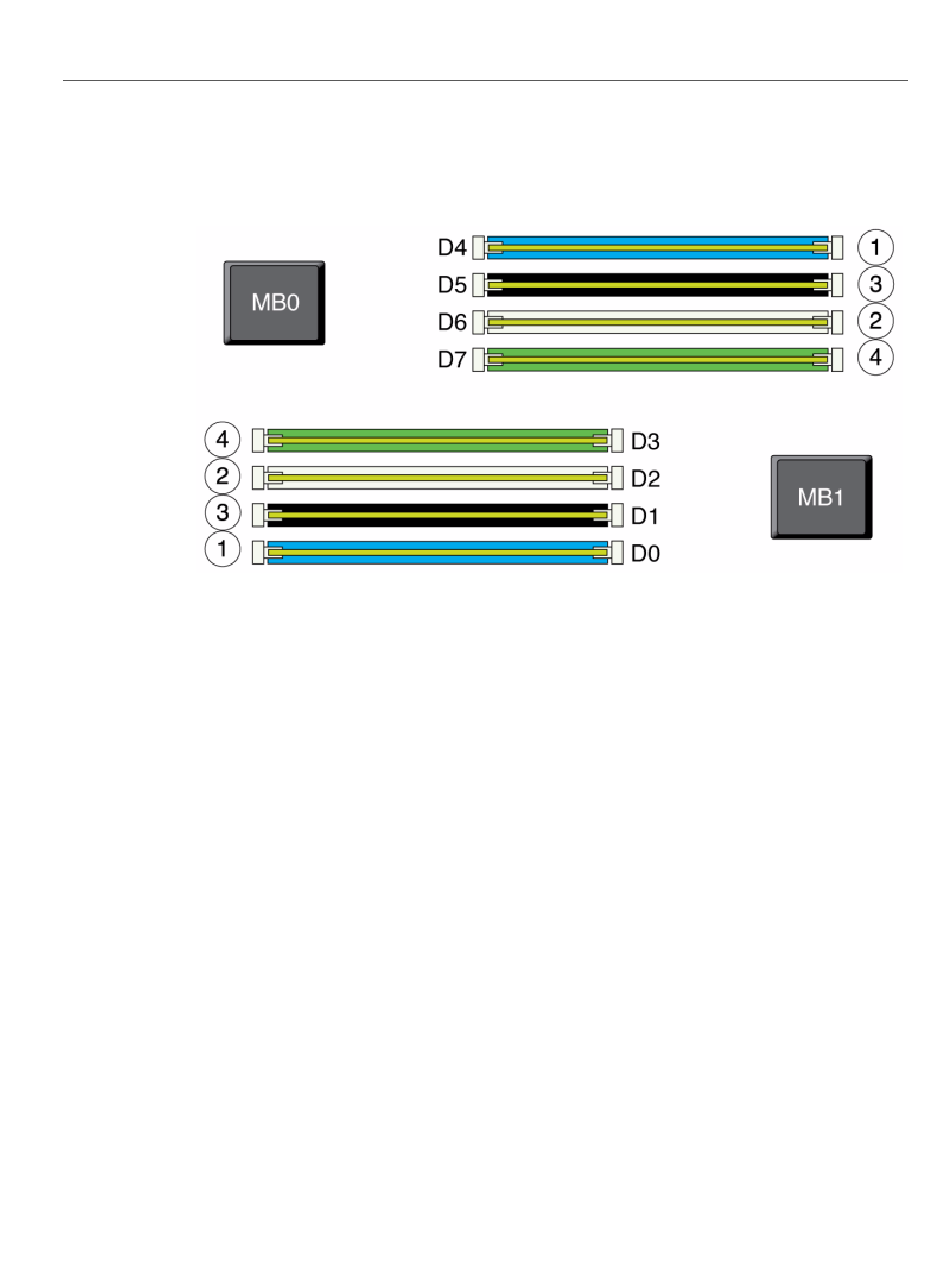

ZS3-4 Controller DIMM Placement
