8.

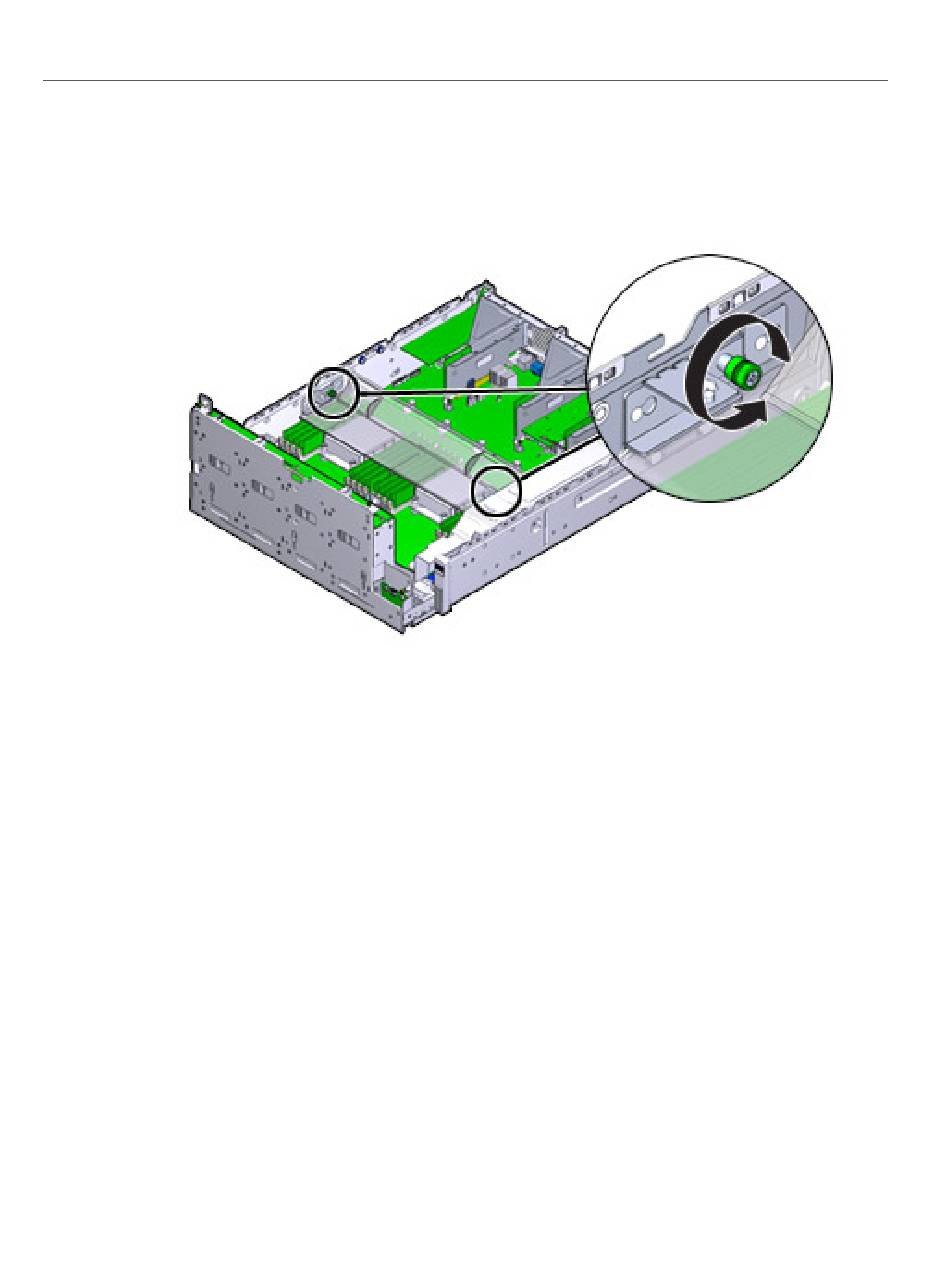

Fully loosen the thumbscrews that secure the air duct.
9.
Slide the left (L) thumbscrew bracket forward and off of the mounting pins.
10.
Slide the right (R) thumbscrew bracket rearward and off of the mounting pins.
Set the thumbscrew bracket aside.
How to Replace a ZS3-2 Memory
Servicing the Hardware
141
