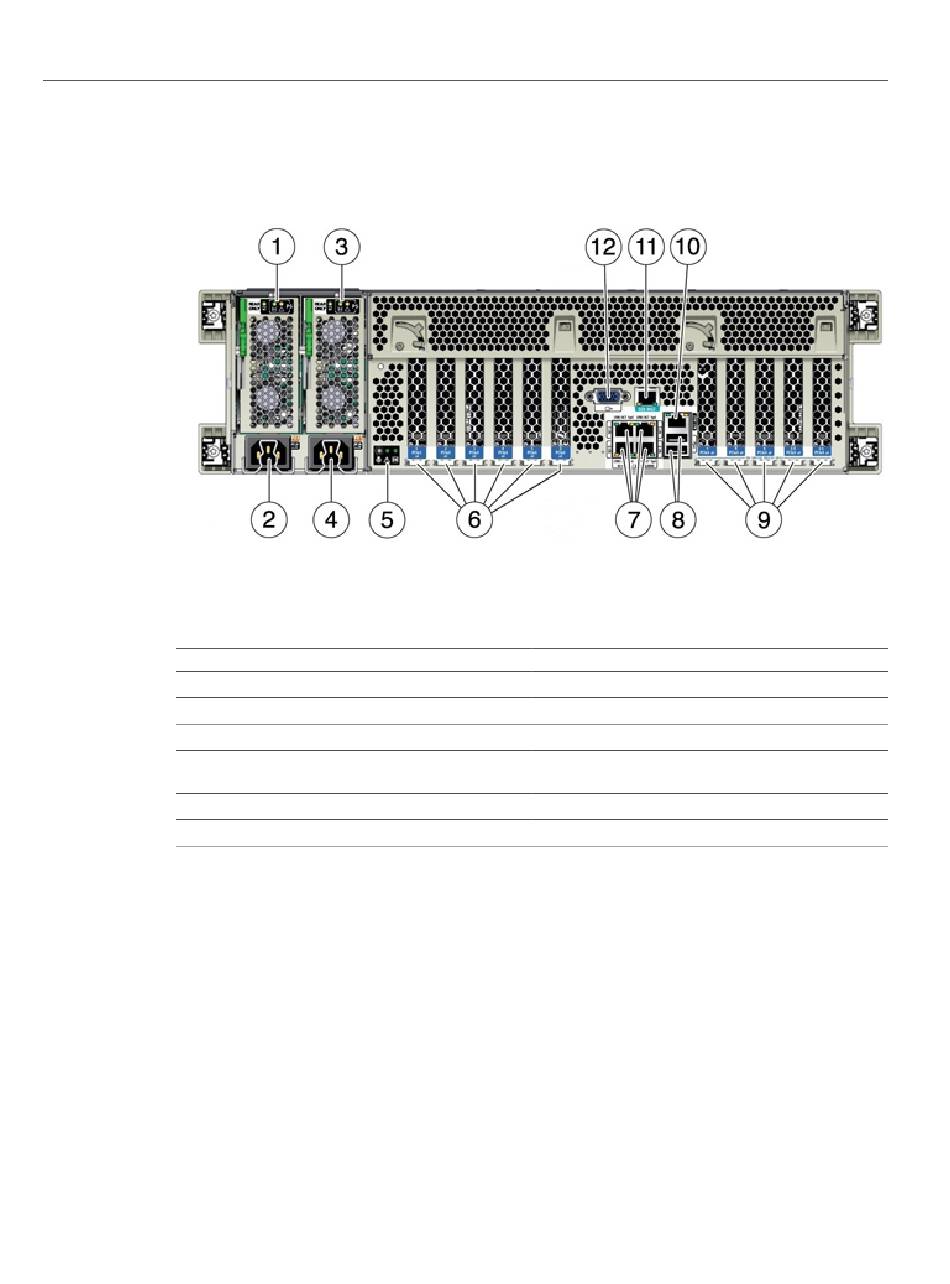

ZS4-4 Controller Rear Panel
FIGURE 4
Figure Legend
1 Power supply unit (PSU) 0 indicator panel
2 PSU 0 AC inlet
3 PSU 1 indicator panel
4 PSU 1 AC inlet
5 System status indicator panel
6 PCIe card slots 1-6
ZS4-4 4x4 SAS-2 HBA
The 4x4 SAS-2 HBA provides connectivity to external DE2-24 disk shelves. The HBA ports
are numbered 3-0, top to bottom, as shown in the following figure.
Servicing the ZS4-4 Controller
Figure Legend
7 Network (NET) 10 GbE ports: NET0NET3
8 USB 2.0 connectors (2)
9 PCIe card slots 711
10 Service processor (SP) network management (NET
MGT) port
11 Serial management (SER MGT) RJ-45 port
12 DB-15 video port
