ZS3-4 Controller Fan Modules

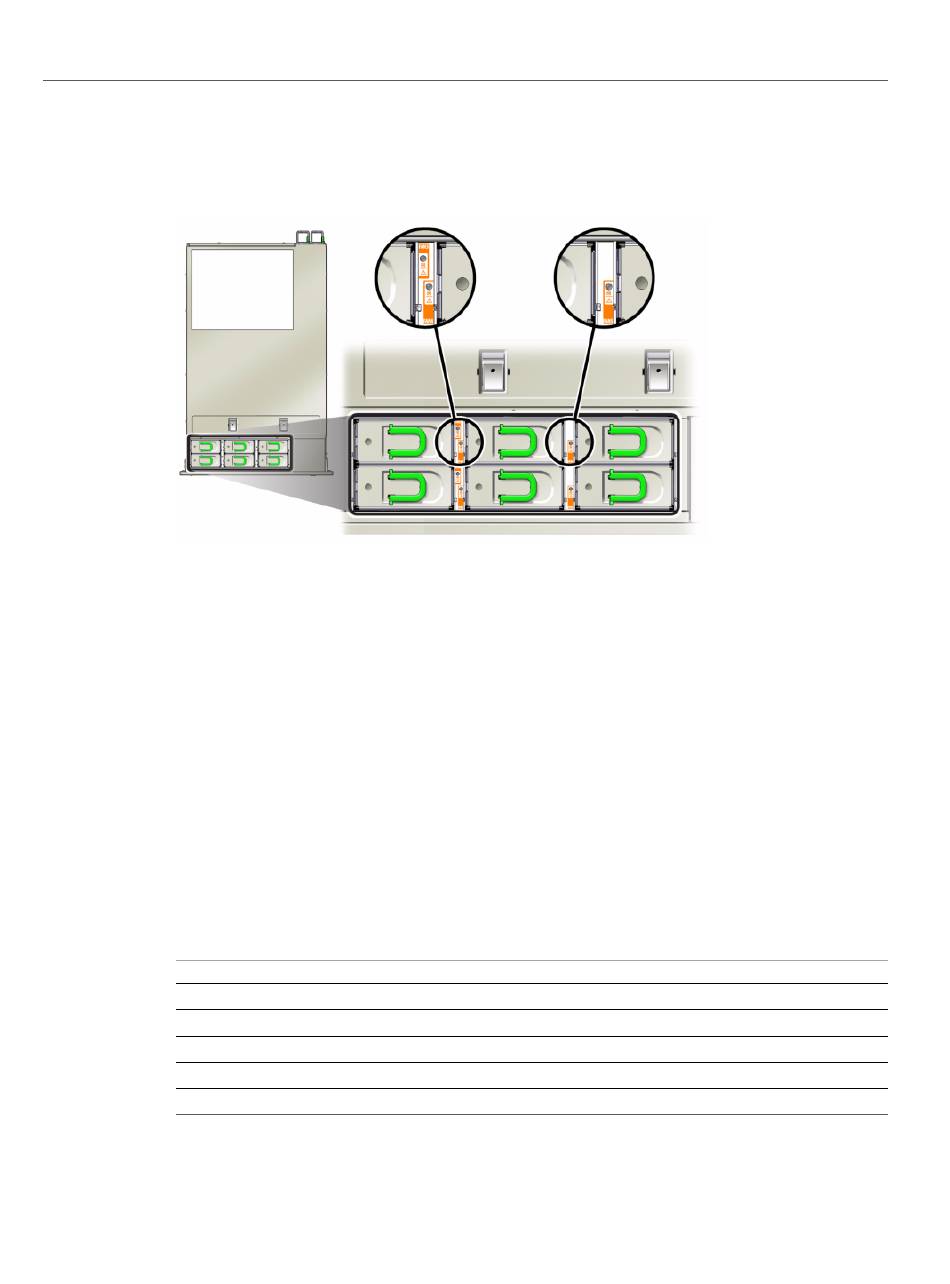

FIGURE 20
Front and rear Service Action Required LEDs
■
Fan Module Service Action Required (TOP) LED on the front of the server
■
Fan Fault LED on or adjacent to the faulty fan module
■
The system Overtemp LED might light if a fan fault causes an increase in system operating
temperature.
ZS3-4 NIC/HBA Options
This table describes NIC/HBA PCIe card options for ZS3-4 standalone and cluster
configurations.
TABLE 19 ZS3-4 Controller NIC/HBA Options
Mktg Part Number
SG-SAS6-INT-Z
SG-XPCIE2FC-QF8-Z
7103791
7101674
7100477
Servicing the ZS3-4 Controller
Description
8-port 6Gb/s SAS-2 internal HBA
2-port 8Gb FC HBA
4-port (4x4) SAS-2 6Gb/s external HBA
2-port 16Gb FC HBA
4-port 1Gb Ethernet Copper UTP
