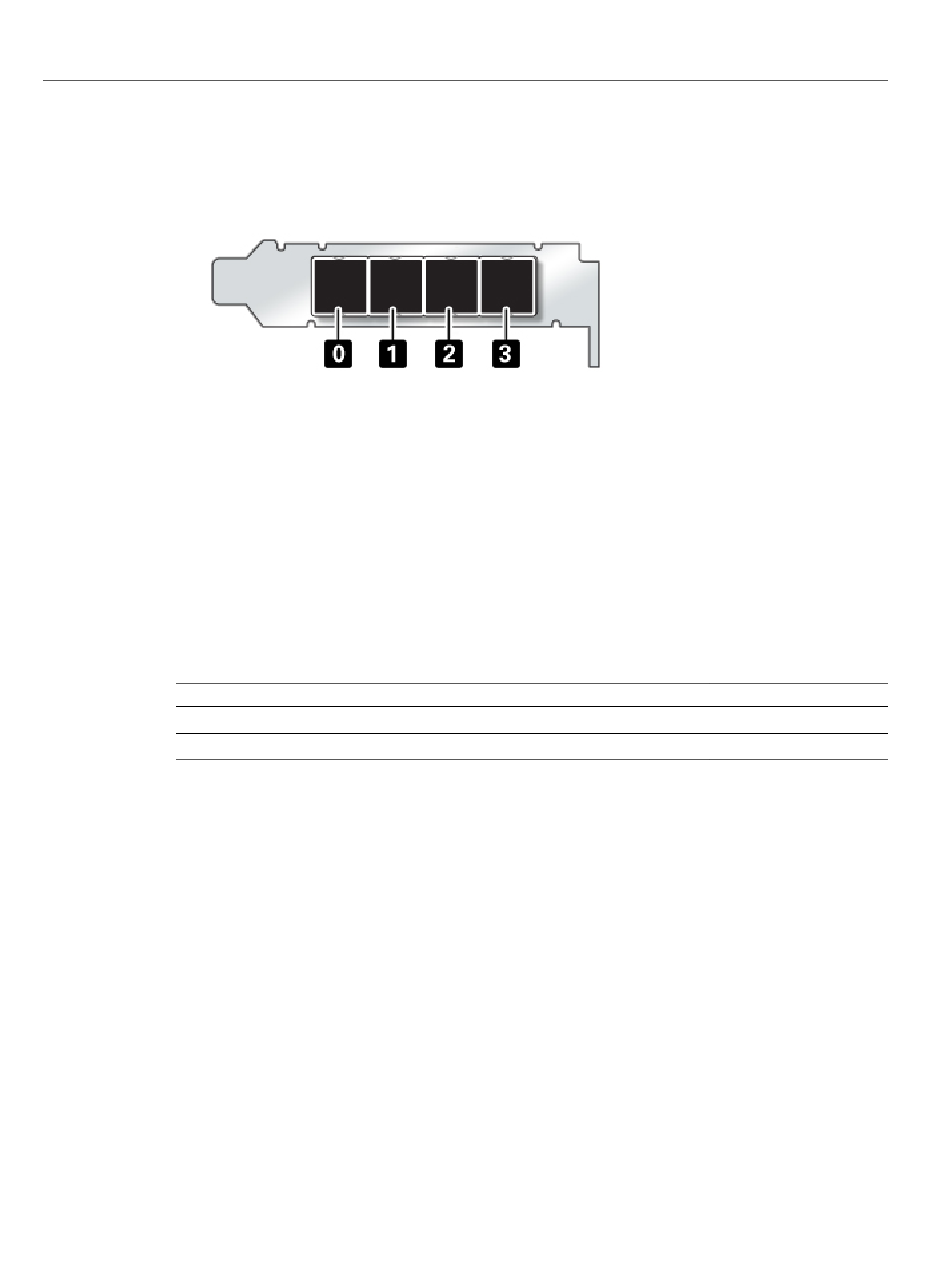

ZS3-2 Controller 4x4 SAS-2 HBA Port Numbers
FIGURE 26
For controllers with an additional 4x4 SAS-2 HBA, see
for slot placement.
ZS3-2 Physical Specifications
The ZS3-2 controller 2U chassis dimensions are as follows:
ZS3-2 Controller Physical Specifications
TABLE 23
Dimension
Height
Width
ZS3-2 Electrical Specifications
The ZS3-2 controller electrical specifications are listed below. The power dissipation numbers
listed are the maximum rated power numbers for the power supply. The numbers are not a rating
of the actual power consumption of the appliance.
Connectors
Two C13 connectors which work on 110-220v outlets
■
Input
Nominal frequencies: 50/60Hz (47 to 63 Hz range)
■
Nominal voltage range: 100 to 120/200 to 240 VAC
■
Measurement Dimension
3.44 in./87.4 mm Depth
17.52 in./445 mm Weight
Servicing the ZS3-2 Controller
"ZS3-2 PCIe Options" on page 123
Measurement
20.25 in./514 mm
41.23 lb/18.70 kg
