Oracle ZFS ZS3 Series Customer Service Manual page 57

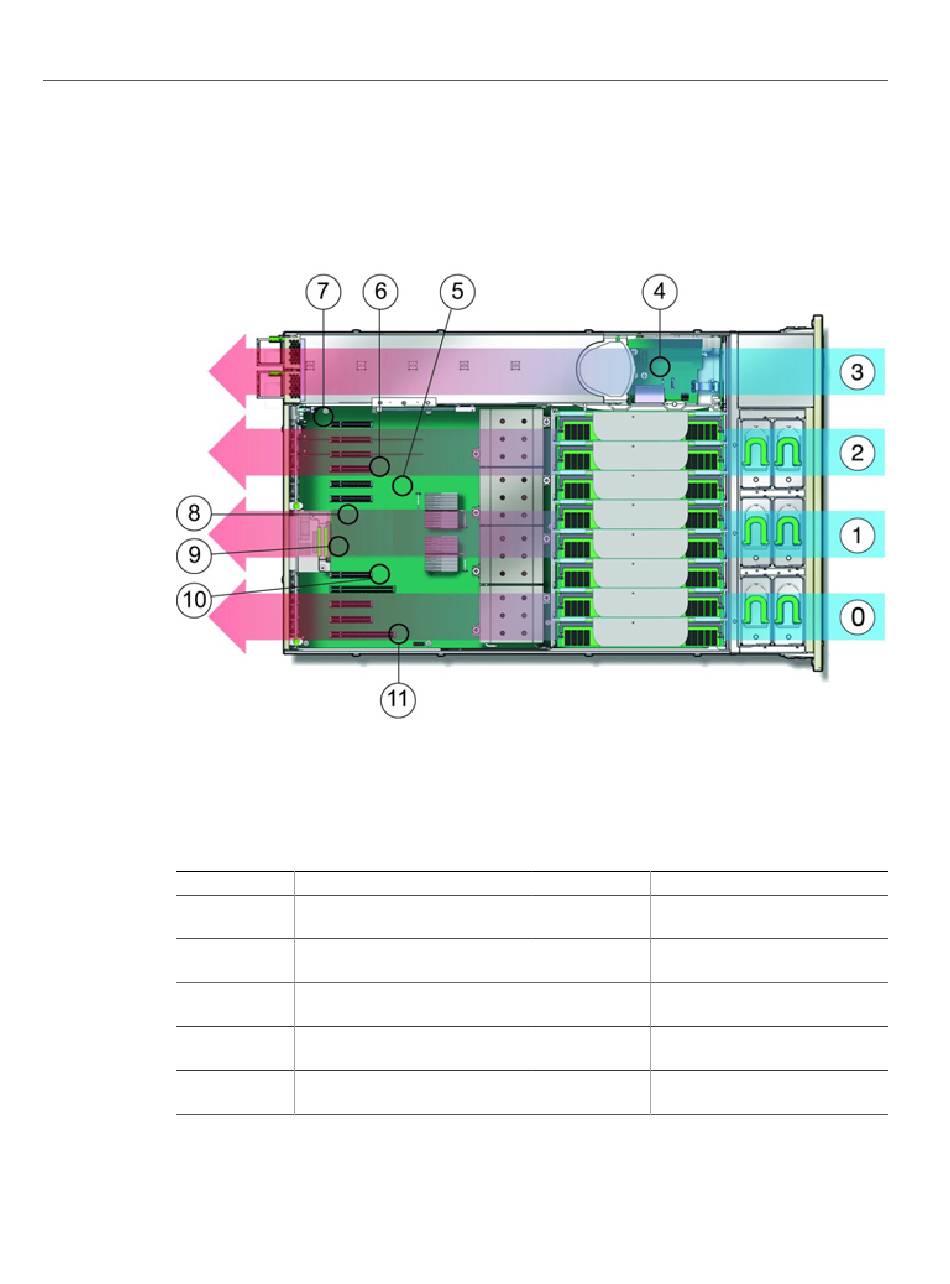

ZS4-4 Cooling Subsystem
FIGURE 12
Figure Legend
0 Cooling zone 0
1 Cooling zone 1
2 Cooling zone 2
3 Cooling zone 3 (power supply
backplane area)
4 Temperature sensor TS_PS (U4603)
Servicing the ZS4-4 Controller
Figure Legend
6 Temperature sensor TS_ZONE2
(U4505)
7 Temperature sensor TS_OUT
(U4506)
8 Temperature sensor TS_TVL_1
(U4002)
9 Temperature sensor TS_TVL_0
(U4302)
10 Temperature sensor TS_ZONE0_B
(U4509)
Servicing the Hardware 57
