Figure Legend
DIMMs
4
ZS3-2 CPU and Memory
The ZS3-2 controller motherboard has 16 slots in two groups that hold industry-standard DDR3
low voltage (LV) DIMMS.
ZS3-2 Controller CPU and Memory Components

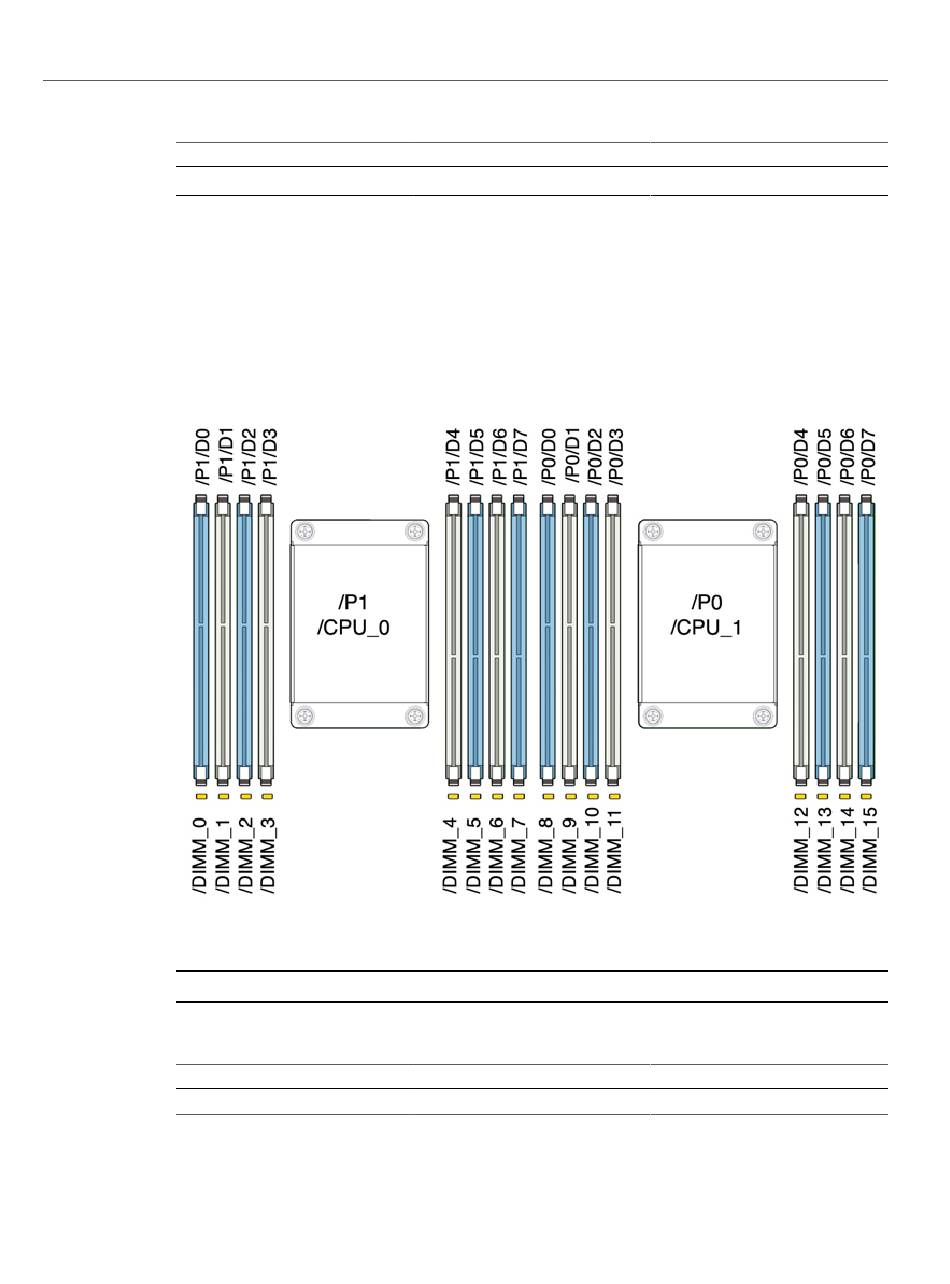

FIGURE 30
All sockets must be occupied by identical DDR3 DIMMs.
Note -
TABLE 24 ZS3-2 Controller CPU Descriptions
Capacity
256GB
USB flash drive
8
CPU 0
D0, D2, D5, D7 (blue)
Servicing the ZS3-2 Controller
CPU 1
D0, D2, D5, D7 (blue)
