Oracle ZFS ZS3 Series Customer Service Manual page 244

Servicing the Disk Shelves

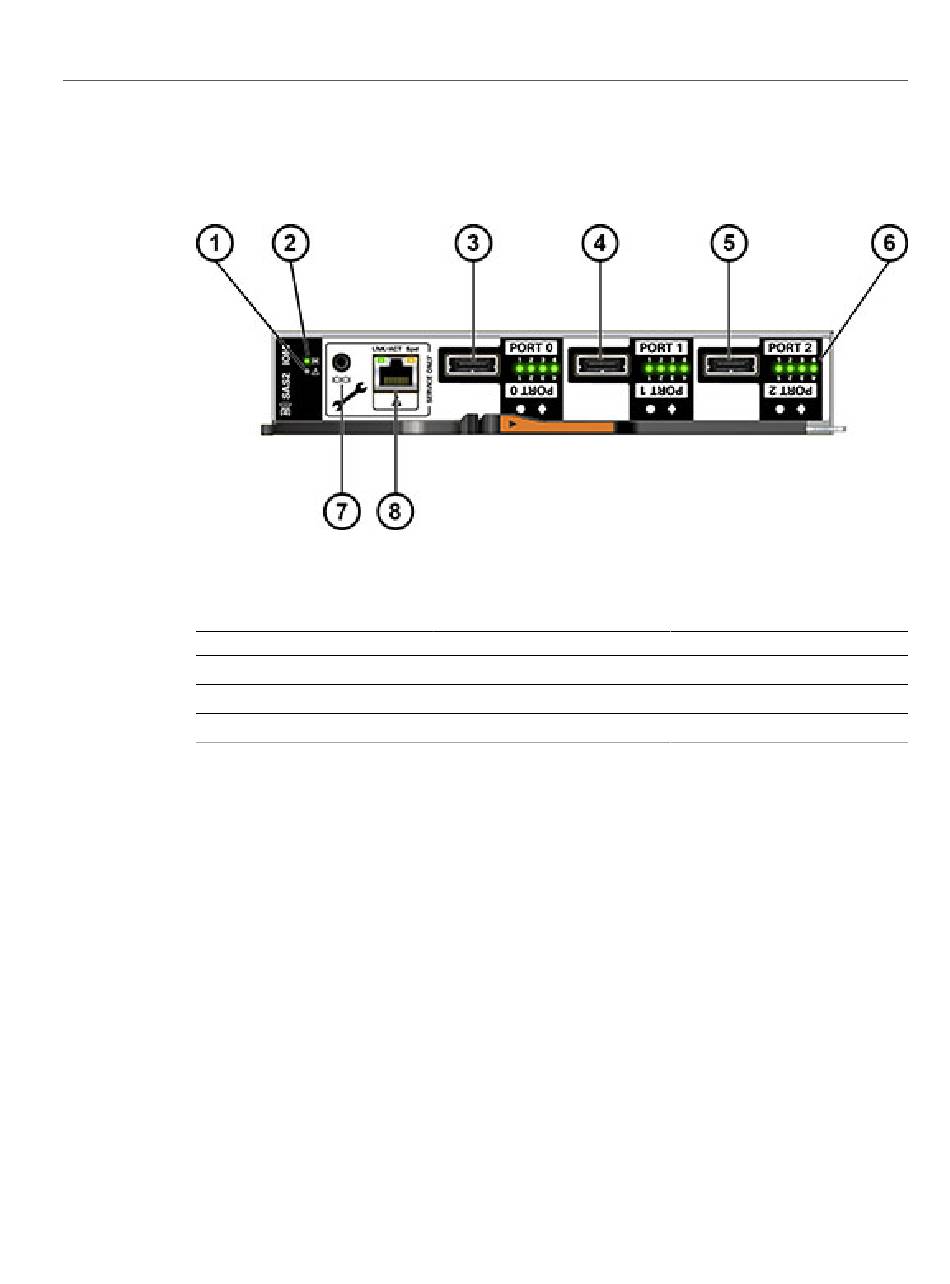

FIGURE 75
Figure Legend
Fault / Locate indicator
1
Power / OK indicator
2
SAS-2 Port 0
3
Disk Shelf SIM Board Indicators
The following disk shelves have SIM boards:
Sun Disk Shelf
■
The following figure shows the SIM board indicators for the Sun Disk Shelf.
244 Oracle ZFS Storage Appliance Customer Service Manual • February 2016
I/O Module Indicators
Figure Legend
SAS-2 Port 1
4
SAS-2 Port 2
5
Host port activity indicators
6
Figure Legend
For Oracle service only
7
For Oracle service only
8
