7420 Front Panel

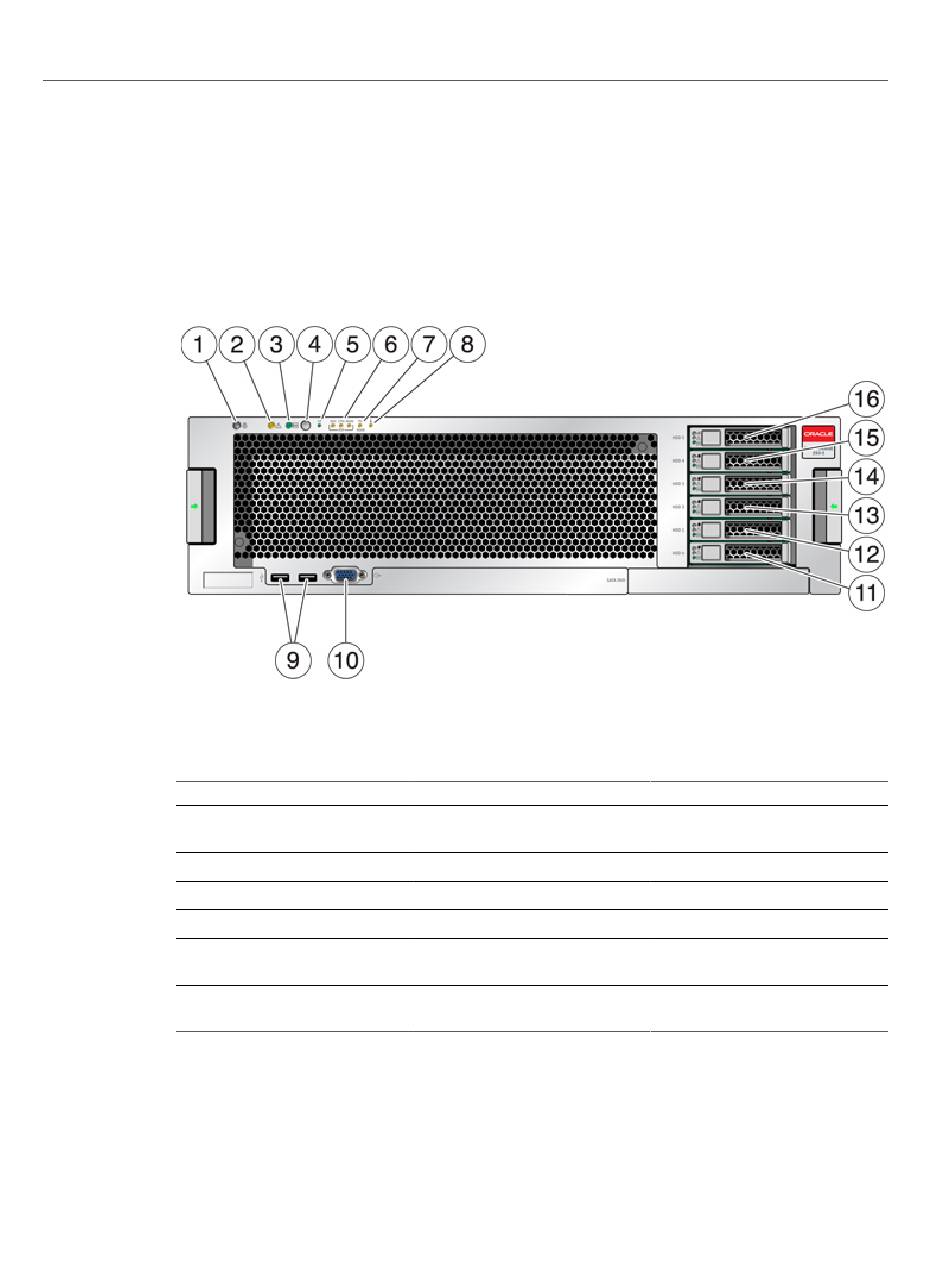

The 7420 controller drive slots and front panel components are shown in the following figure.
7420 Controller Front Panel
FIGURE 36
Figure Legend
Locator LED and button (white)
1
Service Required LED (amber)
2
Power/OK LED (green)
3
Power button
4
Service Processor (SP) OK LED
5
(green)
Fan/CPU/Memory Service
6
Required LED
Figure Legend
Power Supply (PS) Service
7
Required LED
Over Temperature Warning LED
8
USB 2.0 Connectors
9
DB-15 video connector
10
Boot drive 0 (mirrored)
11
Boot drive 1 (mirrored)
12
Servicing the 7x20 Controller
Figure Legend
SSD 2 (optional)
13
SSD 3 (optional)
14
SSD 4 (optional)
15
SSD 5 (optional)
16
