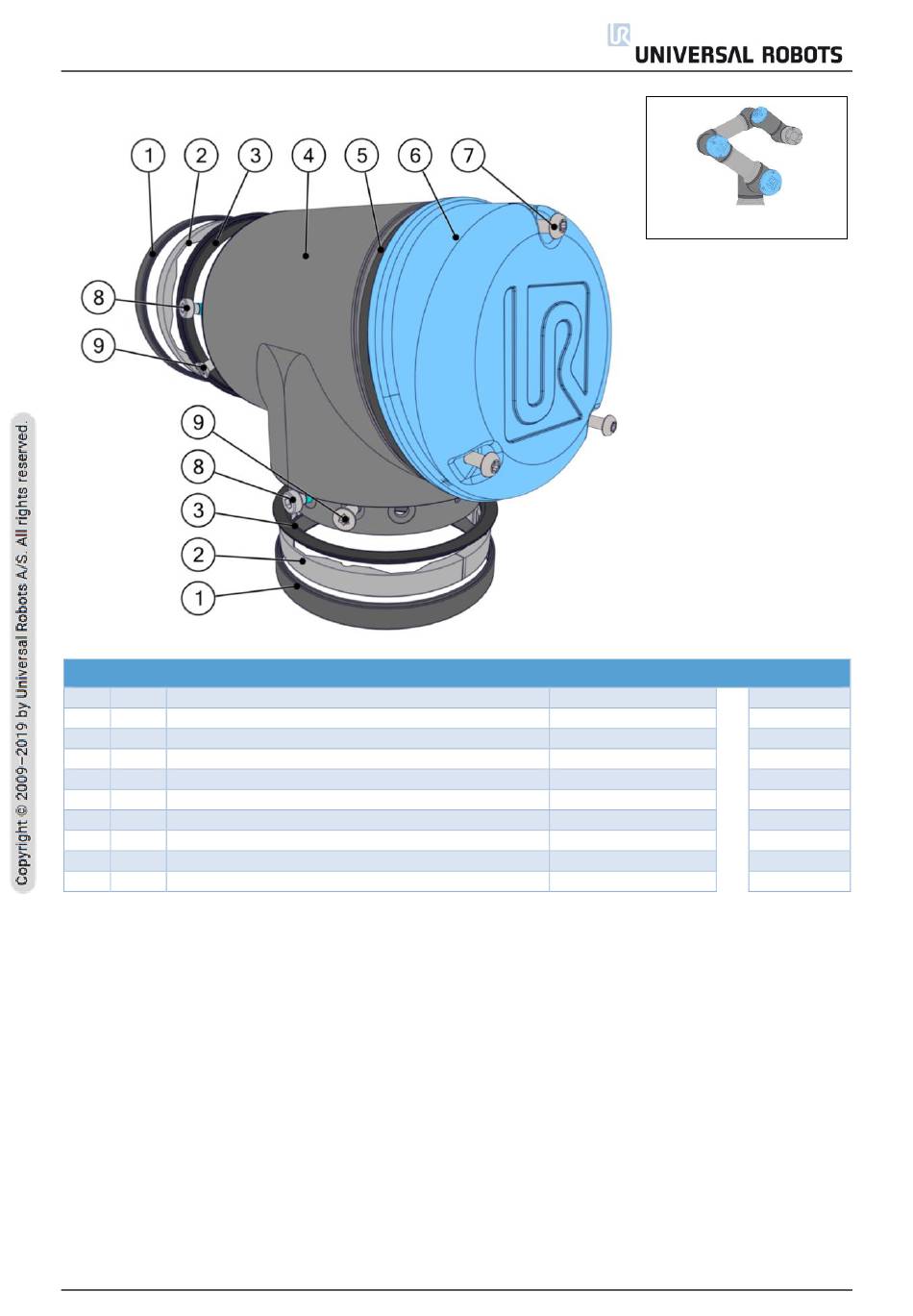

Base joint for UR3e – 124021
NO.
QTY.
DESCRIPTION
1
2
Flat ring for size 2
2
2
Form ring for size 2
3
2
Wear ring for size 2
4
1
Base joint, size 2
5
1
O-ring for lid size 2
6
1
Lid size 2
7
3
Screws for lid size 2
8
20
Screws
9
6
Screws counter sunk
All rights reserved
Base joint for UR3e – 124021
174
Return to overview
PART NUMBER(S)
103703
103703
103703
N/A
103413
103413
103413
N/A
N/A
Service Manual e-Series (EN) 1.1.8
PAGE NO.
147
147
147
N/A
150
150
150
N/A
N/A
