Universal Robots E Series Service Manual page 169

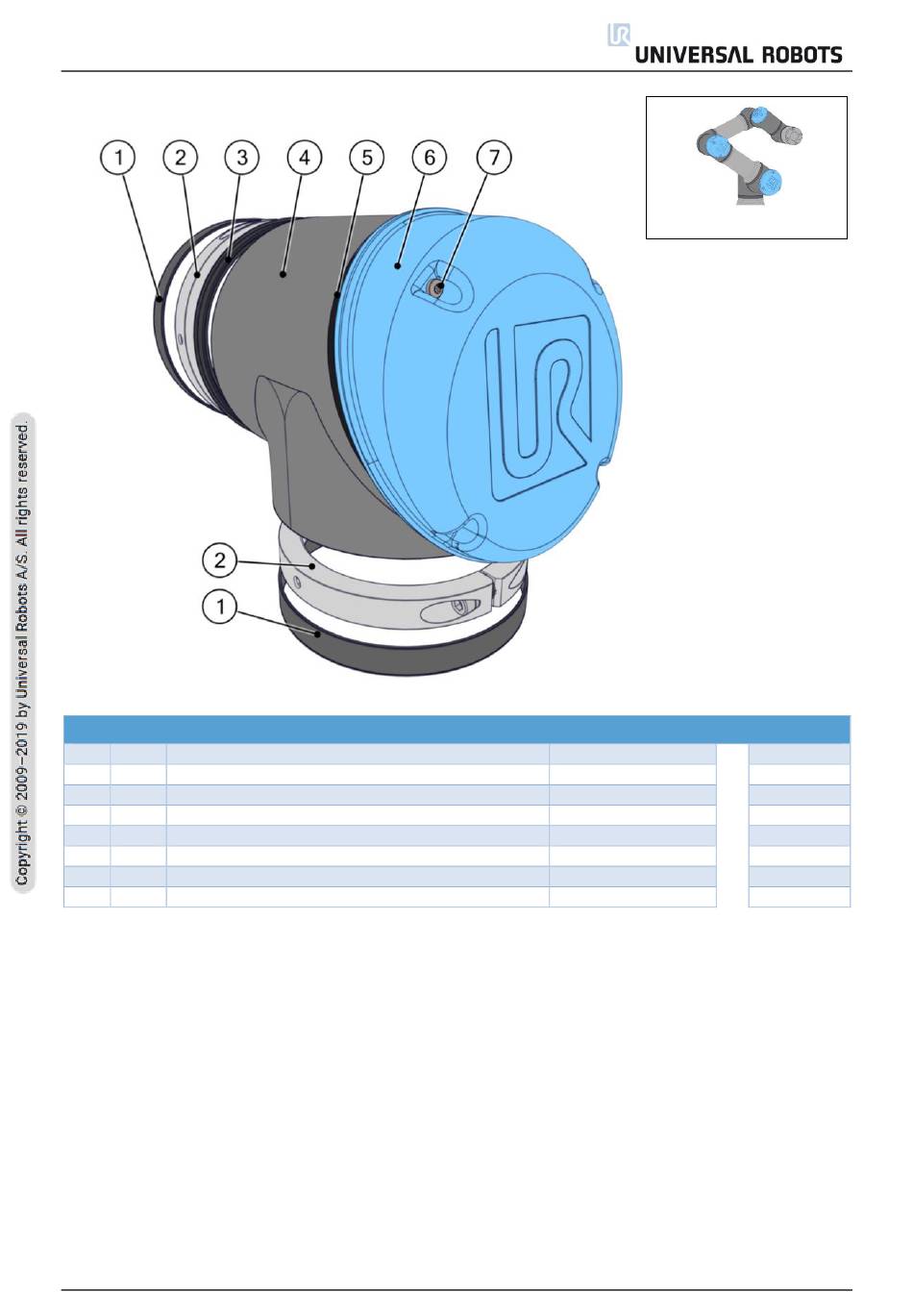

Elbow joint for UR10e/UR16e –124031
NO. QTY. DESCRIPTION
1 2 Flat ring for size 3
2 2 Bracket connection incl. bolts and seals size 1
3 1 Wear ring size 3
4 1 Elbow, size 3
5 1 O-ring for lid size 3
6 1 Lid size 3
7 3 Screws for lid size 3
All rights reserved
Elbow joint for UR10e/UR16e –124031
PART NUMBER(S)
103700
N/A
103700
N/A
103410
103410
103410
169 Service Manual e-Series (EN) 1.1.8
Return to overview
PAGE NO.
149
N/A
149
N/A
152
152
152
