Universal Robots E Series Service Manual page 168

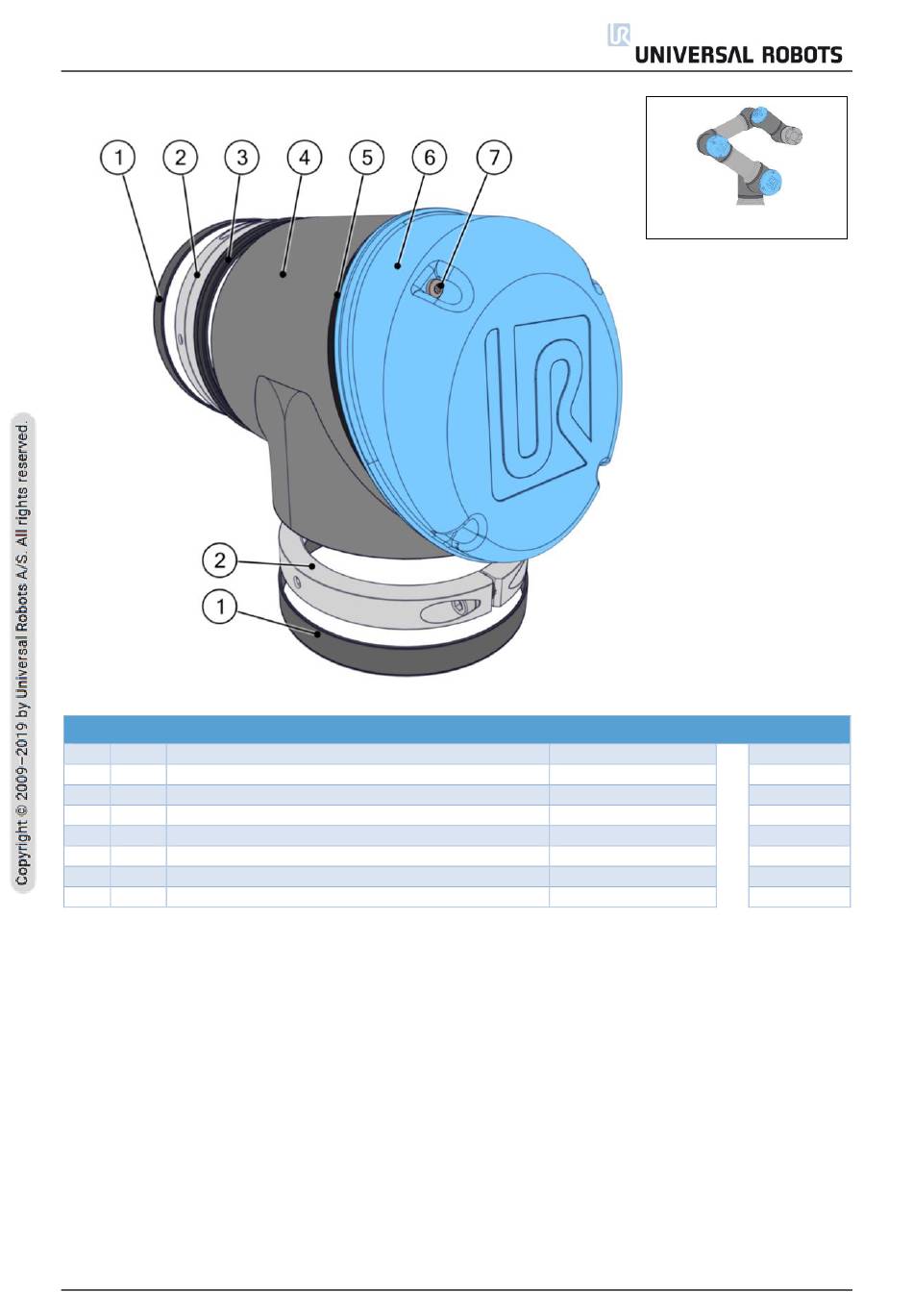

Elbow joint for UR5e –124031
NO. QTY. DESCRIPTION
1 2 Flat ring for size 3
2 2 Bracket connection incl. bolts and seals size 3
3 1 Wear ring size 3
4 1 Elbow, size 3
5 1 O-ring for lid size 3
6 1 Lid size 3
7 4 Screws for lid size 3
All rights reserved
Elbow joint for UR5e –124031
168
Return to overview
PART NUMBER(S)
103705
N/A
103705
N/A
103405
103405
103405
Service Manual e-Series (EN) 1.1.8
PAGE NO.
148
N/A
148
N/A
151
151
151
