ABOUT THE DV GATEWAY FUNCTION

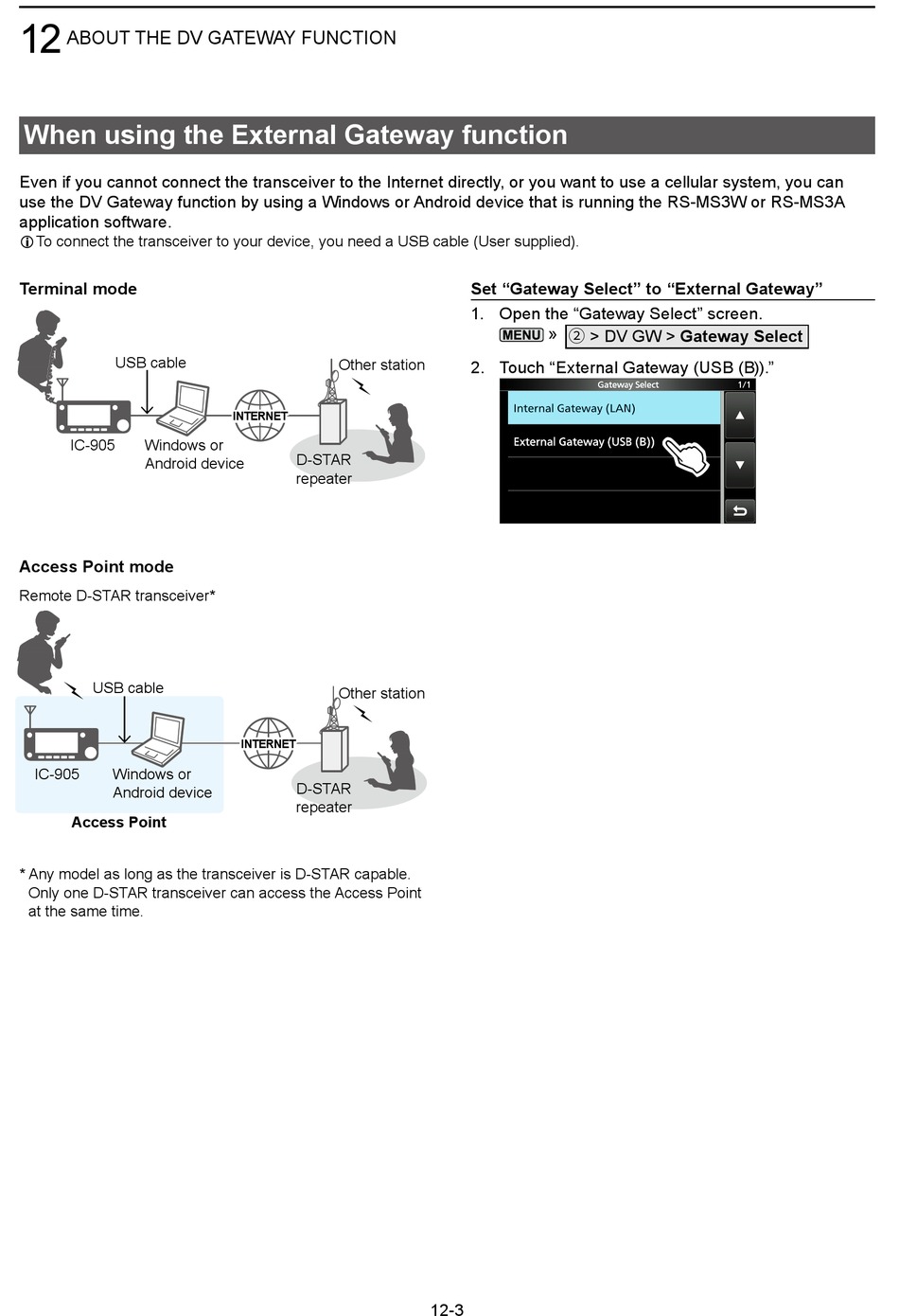

When using the External Gateway function

Even if you cannot connect the transceiver to the Internet directly, or you want to use a cellular system, you can
use the DV Gateway function by using a Windows or Android device that is running the RS-MS3W or RS-MS3A
application software�
L To connect the transceiver to your device, you need a USB cable (User supplied)�
Terminal mode
USB cable
IC-905 Windows or
Android device
Access Point mode
Remote D-STAR transceiver*
USB cable
IC-905 Windows or
Android device
Access Point
* Any model as long as the transceiver is D-STAR capable�
Only one D-STAR transceiver can access the Access Point
at the same time�
Other station
INTERNET INTERNET
D-STAR
repeater
Other station
INTERNET INTERNET
D-STAR
repeater
Set "Gateway Select" to "External Gateway"
1� Open the "Gateway Select" screen�
» 2 > DV GW > Gateway Select
2� Touch "External Gateway (USB (B))�"
12-3
