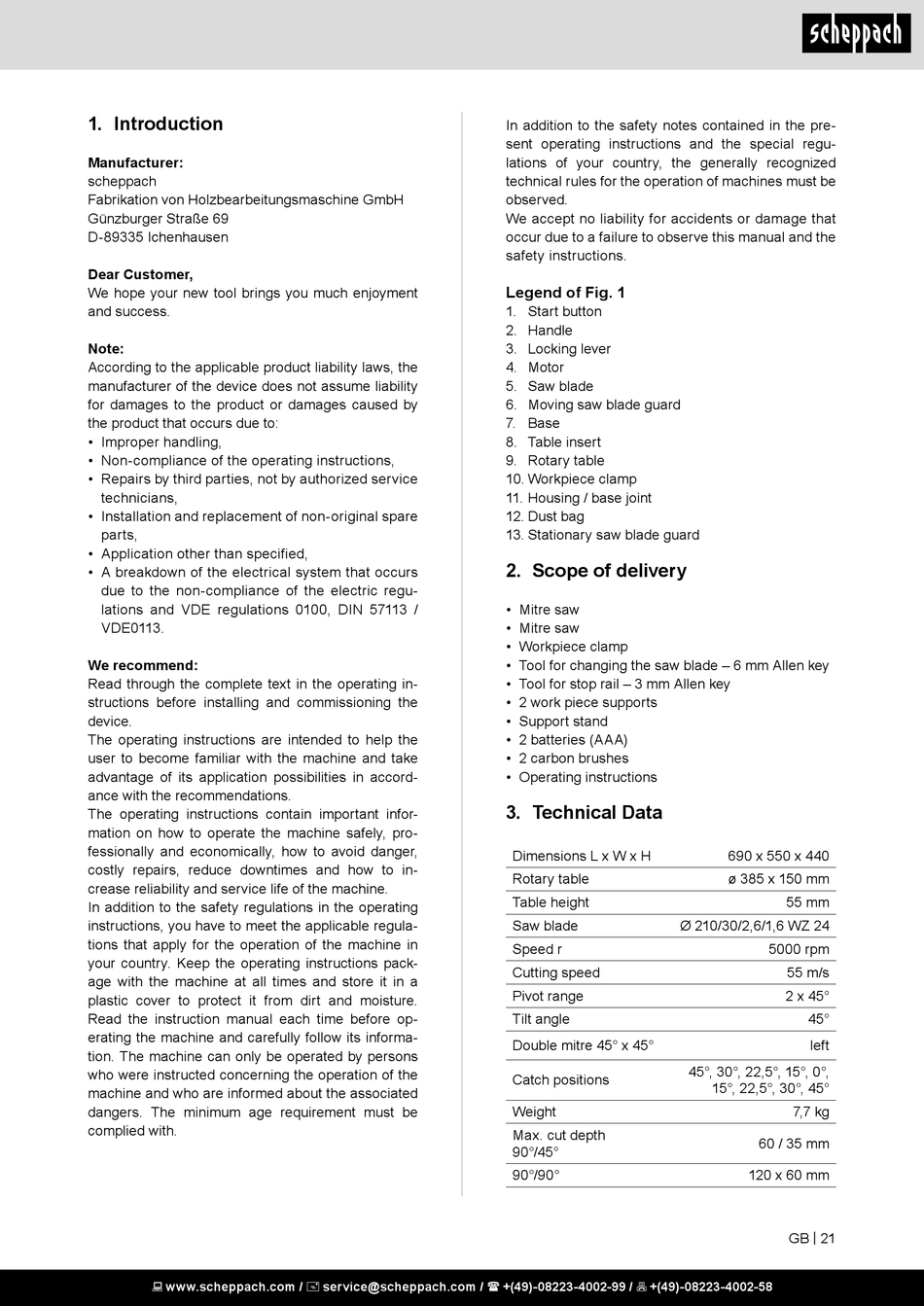

1. Introduction

Manufacturer:
scheppach
Fabrikation von Holzbearbeitungsmaschine GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer,
We hope your new tool brings you much enjoyment
and success.
Note:
According to the applicable product liability laws, the
manufacturer of the device does not assume liability
for damages to the product or damages caused by
the product that occurs due to:
• Improper handling,
• Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service
technicians,
• Installation and replacement of non-original spare
parts,
• Application other than specified,
• A breakdown of the electrical system that occurs
due to the non-compliance of the electric regu-
lations and VDE regulations 0100, DIN 57113 /
VDE0113.
We recommend:
Read through the complete text in the operating in-
structions before installing and commissioning the
device.
The operating instructions are intended to help the
user to become familiar with the machine and take
advantage of its application possibilities in accord-
ance with the recommendations.
The operating instructions contain important infor-
mation on how to operate the machine safely, pro-
fessionally and economically, how to avoid danger,
costly repairs, reduce downtimes and how to in-
crease reliability and service life of the machine.
In addition to the safety regulations in the operating
instructions, you have to meet the applicable regula-
tions that apply for the operation of the machine in
your country. Keep the operating instructions pack-
age with the machine at all times and store it in a
plastic cover to protect it from dirt and moisture.
Read the instruction manual each time before op-
erating the machine and carefully follow its informa-
tion. The machine can only be operated by persons
who were instructed concerning the operation of the
machine and who are informed about the associated
dangers. The minimum age requirement must be
complied with.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
In addition to the safety notes contained in the pre-
sent operating instructions and the special regu-
lations of your country, the generally recognized
technical rules for the operation of machines must be
observed.
We accept no liability for accidents or damage that
occur due to a failure to observe this manual and the
safety instructions.
Legend of Fig. 1
1. Start button
2. Handle
3. Locking lever
4. Motor
5. Saw blade
6. Moving saw blade guard
7. Base
8. Table insert
9. Rotary table
10. Workpiece clamp
11. Housing / base joint
12. Dust bag
13. Stationary saw blade guard

2. Scope of delivery

• Mitre saw
• Mitre saw
• Workpiece clamp
• Tool for changing the saw blade – 6 mm Allen key
• Tool for stop rail – 3 mm Allen key
• 2 work piece supports
• Support stand
• 2 batteries (AAA)
• 2 carbon brushes
• Operating instructions

3. Technical Data

Dimensions L x W x H
Rotary table
Table height
Saw blade Ø 210/30/2,6/1,6 WZ 24
Speed r
Cutting speed
Pivot range
Tilt angle
Double mitre 45° x 45°
Catch positions
Weight
Max. cut depth
90°/45°
90°/90°
690 x 550 x 440
ø 385 x 150 mm
55 mm
5000 rpm
55 m/s
2 x 45°
45°
left
45°, 30°, 22,5°, 15°, 0°,
15°, 22,5°, 30°, 45°
7,7 kg
60 / 35 mm
120 x 60 mm
