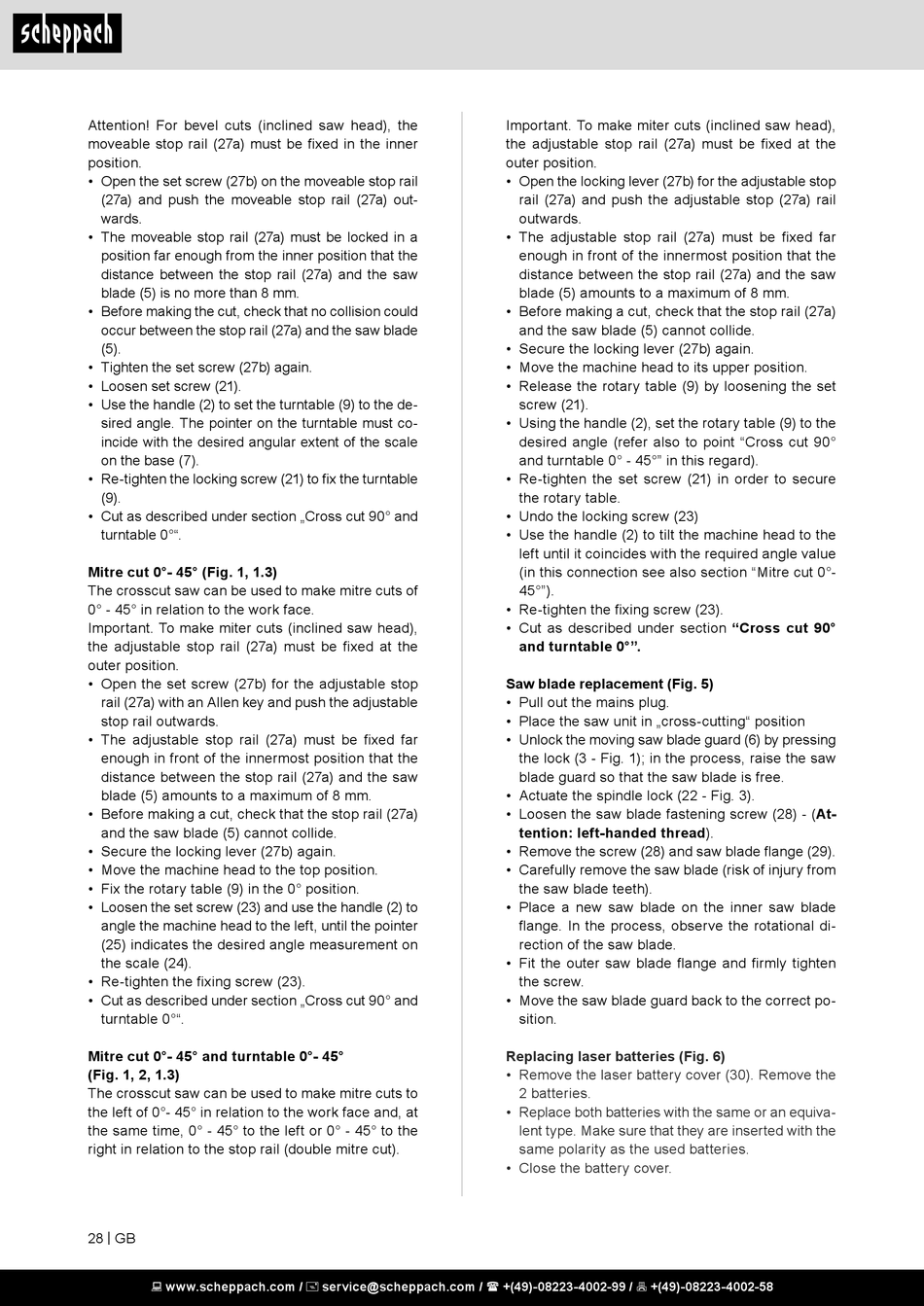

Scheppach HM80L Translation Of Original Instruction Manual page 28

Attention! For bevel cuts (inclined saw head), the
moveable stop rail (27a) must be fixed in the inner
position.
• Open the set screw (27b) on the moveable stop rail
(27a) and push the moveable stop rail (27a) out-
wards.
• The moveable stop rail (27a) must be locked in a
position far enough from the inner position that the
distance between the stop rail (27a) and the saw
blade (5) is no more than 8 mm.
• Before making the cut, check that no collision could
occur between the stop rail (27a) and the saw blade
(5).
• Tighten the set screw (27b) again.
• Loosen set screw (21).
• Use the handle (2) to set the turntable (9) to the de-
sired angle. The pointer on the turntable must co-
incide with the desired angular extent of the scale
on the base (7).
• Re-tighten the locking screw (21) to fix the turntable
(9).
• Cut as described under section „Cross cut 90° and
turntable 0°".
Mitre cut 0°- 45° (Fig. 1, 1.3)
The crosscut saw can be used to make mitre cuts of
0° - 45° in relation to the work face.
Important. To make miter cuts (inclined saw head),
the adjustable stop rail (27a) must be fixed at the
outer position.
• Open the set screw (27b) for the adjustable stop
rail (27a) with an Allen key and push the adjustable
stop rail outwards.
• The adjustable stop rail (27a) must be fixed far
enough in front of the innermost position that the
distance between the stop rail (27a) and the saw
blade (5) amounts to a maximum of 8 mm.
• Before making a cut, check that the stop rail (27a)
and the saw blade (5) cannot collide.
• Secure the locking lever (27b) again.
• Move the machine head to the top position.
• Fix the rotary table (9) in the 0° position.
• Loosen the set screw (23) and use the handle (2) to
angle the machine head to the left, until the pointer
(25) indicates the desired angle measurement on
the scale (24).
• Re-tighten the fixing screw (23).
• Cut as described under section „Cross cut 90° and
turntable 0°".
Mitre cut 0°- 45° and turntable 0°- 45°
(Fig. 1, 2, 1.3)
The crosscut saw can be used to make mitre cuts to
the left of 0°- 45° in relation to the work face and, at
the same time, 0° - 45° to the left or 0° - 45° to the
right in relation to the stop rail (double mitre cut).
28 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Important. To make miter cuts (inclined saw head),
the adjustable stop rail (27a) must be fixed at the
outer position.
• Open the locking lever (27b) for the adjustable stop
rail (27a) and push the adjustable stop (27a) rail
outwards.
• The adjustable stop rail (27a) must be fixed far
enough in front of the innermost position that the
distance between the stop rail (27a) and the saw
blade (5) amounts to a maximum of 8 mm.
• Before making a cut, check that the stop rail (27a)
and the saw blade (5) cannot collide.
• Secure the locking lever (27b) again.
• Move the machine head to its upper position.
• Release the rotary table (9) by loosening the set
screw (21).
• Using the handle (2), set the rotary table (9) to the
desired angle (refer also to point "Cross cut 90°
and turntable 0° - 45°" in this regard).
• Re-tighten the set screw (21) in order to secure
the rotary table.
• Undo the locking screw (23)
• Use the handle (2) to tilt the machine head to the
left until it coincides with the required angle value
(in this connection see also section "Mitre cut 0°-
45°").
• Re-tighten the fixing screw (23).
• Cut as described under section "Cross cut 90°
and turntable 0°".
Saw blade replacement (Fig. 5)
• Pull out the mains plug.
• Place the saw unit in „cross-cutting" position
• Unlock the moving saw blade guard (6) by pressing
the lock (3 - Fig. 1); in the process, raise the saw
blade guard so that the saw blade is free.
• Actuate the spindle lock (22 - Fig. 3).
• Loosen the saw blade fastening screw (28) - (At-
tention: left-handed thread).
• Remove the screw (28) and saw blade flange (29).
• Carefully remove the saw blade (risk of injury from
the saw blade teeth).
• Place a new saw blade on the inner saw blade
flange. In the process, observe the rotational di-
rection of the saw blade.
• Fit the outer saw blade flange and firmly tighten
the screw.
• Move the saw blade guard back to the correct po-
sition.
Replacing laser batteries (Fig. 6)
• Remove the laser battery cover (30). Remove the
2 batteries.
• Replace both batteries with the same or an equiva-
lent type. Make sure that they are inserted with the
same polarity as the used batteries.
• Close the battery cover.
