(11) Handset attaching
(11-1) When attaching the main unit directly
Handset installation requires the following parts.
Parts
Handset
Bundled parts of handset
Handset....................................................................1 pc
Handset holder.........................................................1 pc
Handset mounting plate ...........................................1pc
Protection cover .......................................................1pc
Pin 2 pcs
Telephone wire.........................................................1 pc
Modular cord ............................................................1 pc
Nut M4 .....................................................................2pcs
<Procedures>
1. After checking to press the power
source key, put out the power source
lamp and memory lamp, turn the main
power switch OFF and unplug the
power plug.
2. Attach the handset mounting bracket to
the right top of the main unit by using
two pins.
* : Use the lower screw holes of the handset
mounting bracket.
Number Parts number
1 1909AG9JP0 (Product)
1-2-41
Pins

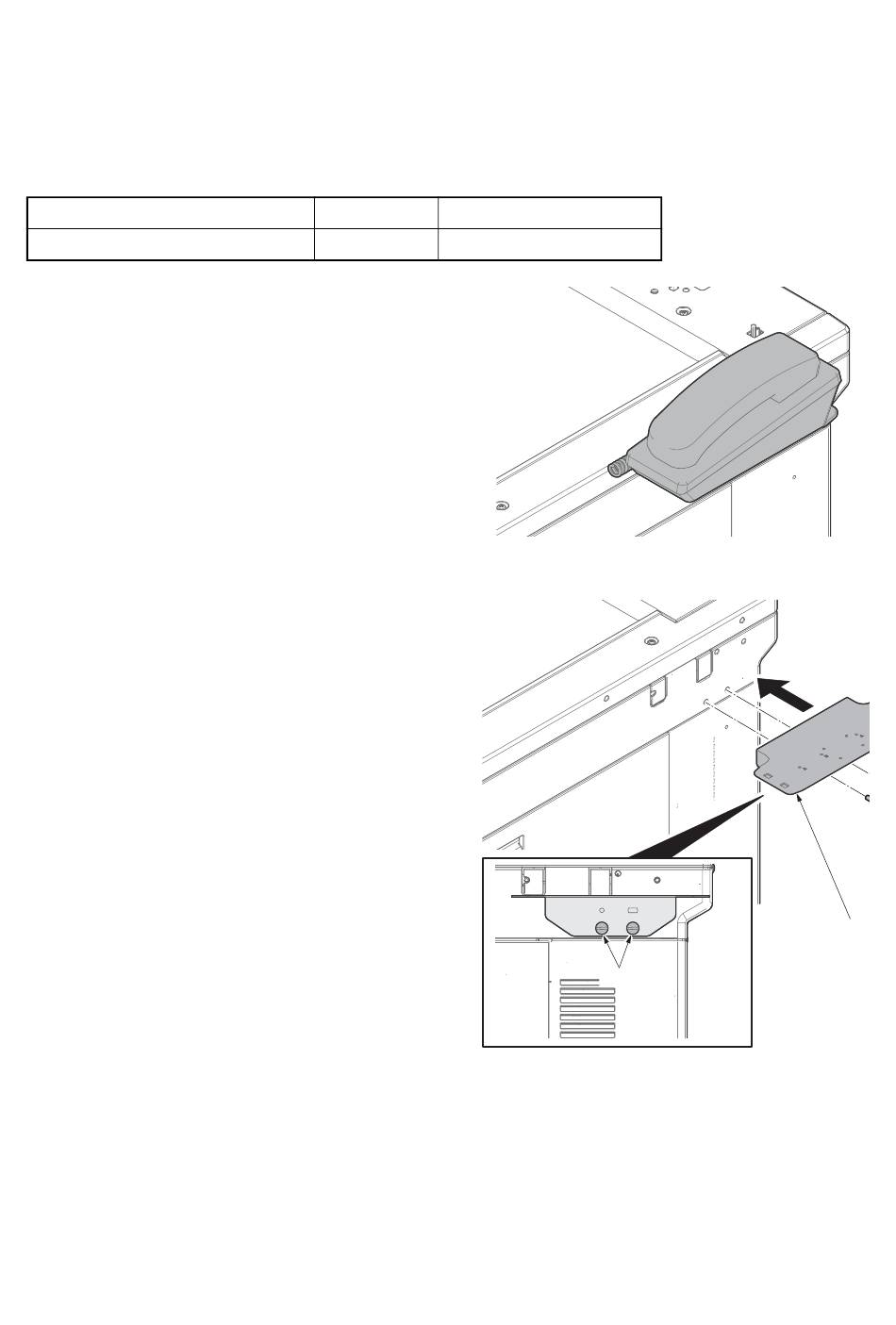

Figure 1-2-62
2RG/2RH
Handset
mounting
