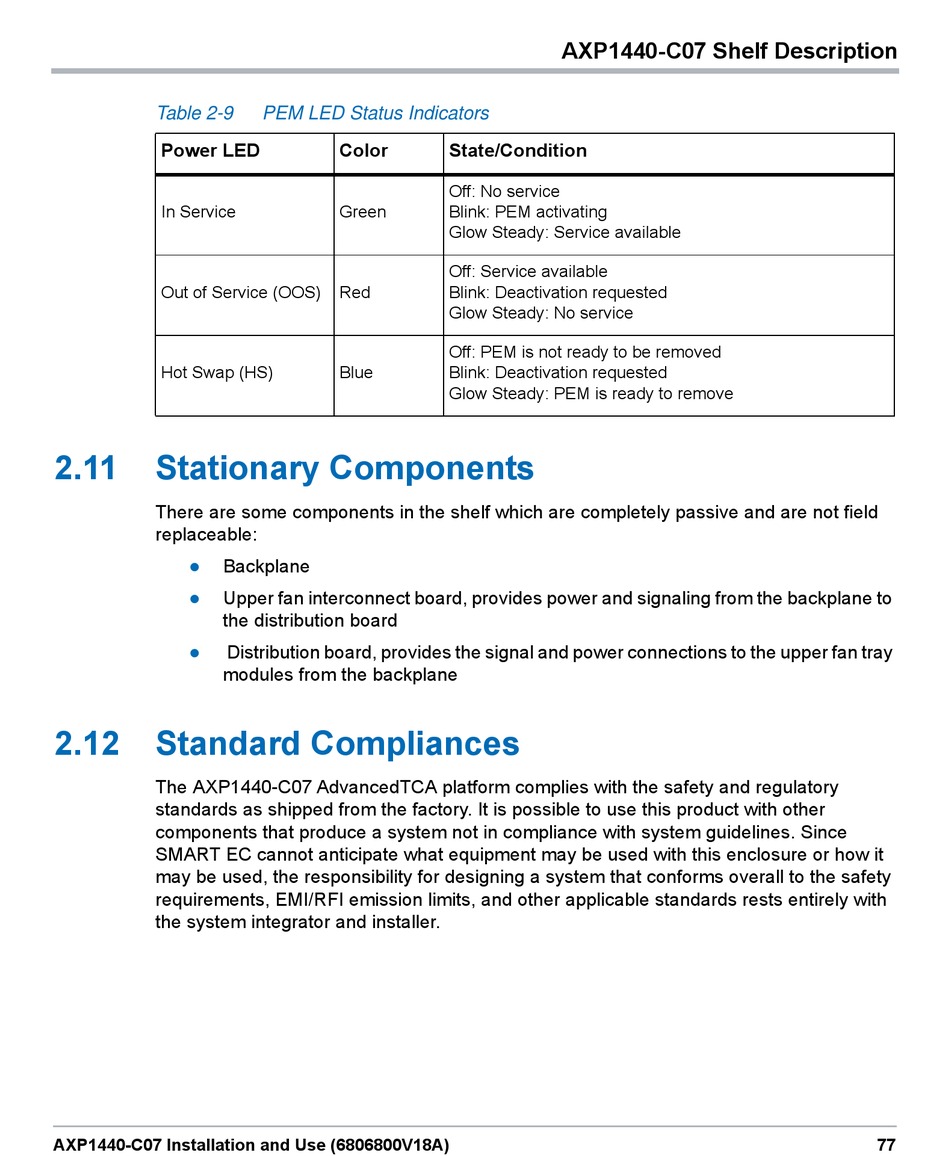

Table 2-9
Power LED
In Service
Out of Service (OOS)
Hot Swap (HS)
2.11

Stationary Components

There are some components in the shelf which are completely passive and are not field
replaceable:
Backplane

Upper fan interconnect board, provides power and signaling from the backplane to

the distribution board
Distribution board, provides the signal and power connections to the upper fan tray

modules from the backplane
2.12

Standard Compliances

The AXP1440-C07 AdvancedTCA platform complies with the safety and regulatory
standards as shipped from the factory. It is possible to use this product with other
components that produce a system not in compliance with system guidelines. Since
SMART EC cannot anticipate what equipment may be used with this enclosure or how it
may be used, the responsibility for designing a system that conforms overall to the safety
requirements, EMI/RFI emission limits, and other applicable standards rests entirely with
the system integrator and installer.
AXP1440-C07 Installation and Use (6806800V18A)
PEM LED Status Indicators
Color
Green
Red
Blue
AXP1440-C07 Shelf Description
State/Condition
Off: No service
Blink: PEM activating
Glow Steady: Service available
Off: Service available
Blink: Deactivation requested
Glow Steady: No service
Off: PEM is not ready to be removed
Blink: Deactivation requested
Glow Steady: PEM is ready to remove
77
