Figure 7-5 Interhub Slot And Shelf Manager Connectivity - SMART Embedded Computing AXP1440-C07 Installation And Use Manual

TP port 3 to Front panel RJ-45)

TP port 4 to ShMM-1500R

TP port 5 is not used

MII port is not used

The default state of the Ethernet switch is not to forward packets between ports. The correct
switch configuration for normal operation is to allow ingress from ports 1, 2 and 3 to port 4
and to allow egress from port 4 to ports 1, 2, and 3. With the exception of routing a port to
itself, all other routes are blocked.

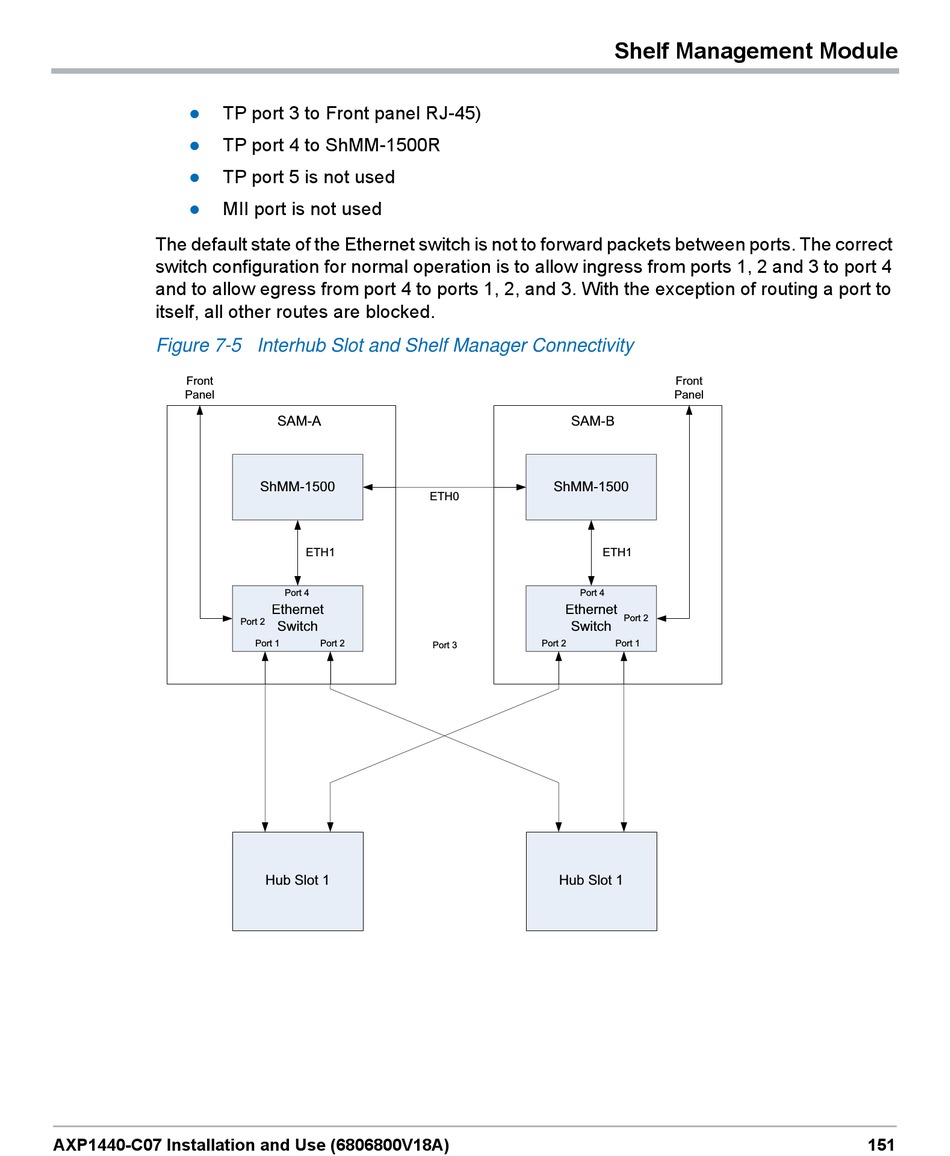

Figure 7-5 Interhub Slot and Shelf Manager Connectivity

Front
Panel
AXP1440-C07 Installation and Use (6806800V18A)
SAM-A
ShMM-1500 ShMM-1500
ETH1
Port 4
Ethernet Ethernet
Port 2
Switch Switch
Port 1 Port 2
Hub Slot 1
SAM-B SAM-B
ShMM-1500 ShMM-1500
ETH0
ETH1
Port 4
Ethernet Ethernet
Switch Switch
Port 2
Port 3
Hub Slot 1
Shelf Management Module
Front
Panel
Port 2
Port 1
151
