Platform Architecture
Platform Architecture
1.4.4

Update Channel Interface

The update channel interface consists of 10 differential pairs on the P20 connector. The
physical layer and protocol used on this interface is application specific.

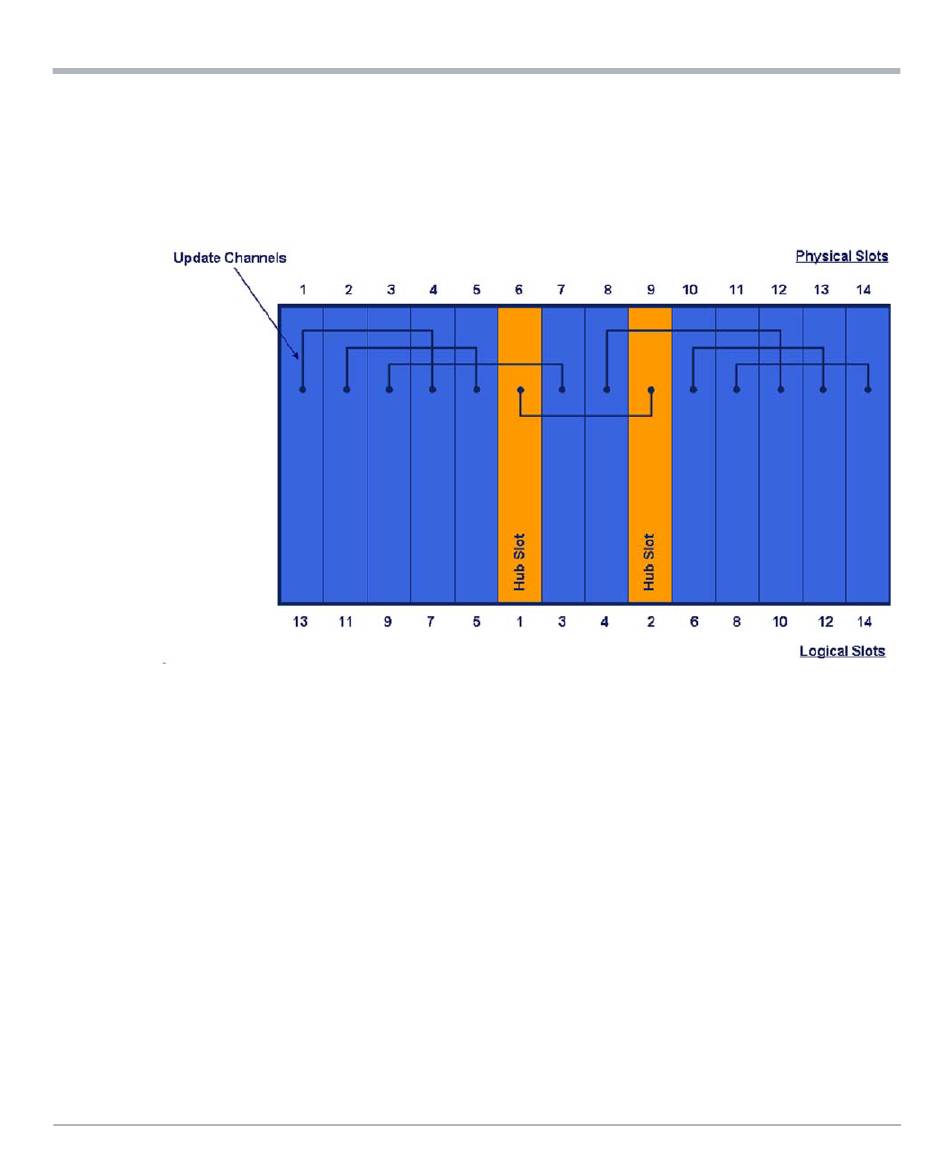

Figure 1-8 Update Channel

60
AXP1440-C07 Installation and Use (6806800V18A)
