Backplane and Component Connectivity

The blade connectivity on the AXP1440-C07 backplane is divided among three zones,
each with the following characteristics:
Zone 1 provides redundant, radial IPMI to all blade slots and redundant -48VDC to

all blade slots
Zone 2, the data transport interface, provides the dual star configuration for the

base interface, dual star configuration for the fabric interface, update channel
routing for all blade slots, and three redundant, bussed telecom clock signals to all
blade slots
Zone 3 provides the PICMG 3.0 defined open area that is application-specific

Rear Transition Modules connect directly with the connectors on the front-side
blade and do not make the connection through the backplane.

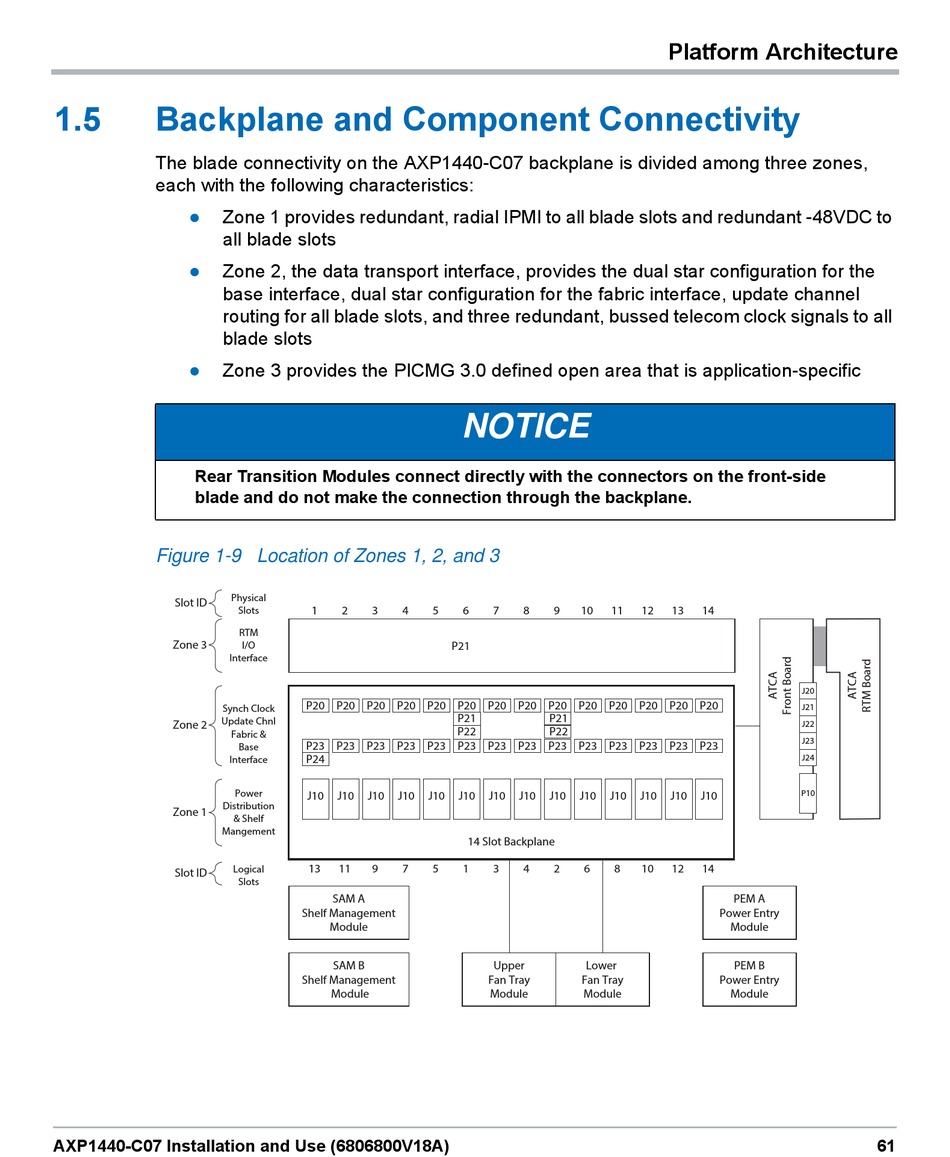

Figure 1-9 Location of Zones 1, 2, and 3

Physical
Slot ID
Zone 3
Interface
Synch Clock
Update Chnl
Zone 2
Fabric &
Interface
Distribution
Zone 1
Mangement
Slot ID
