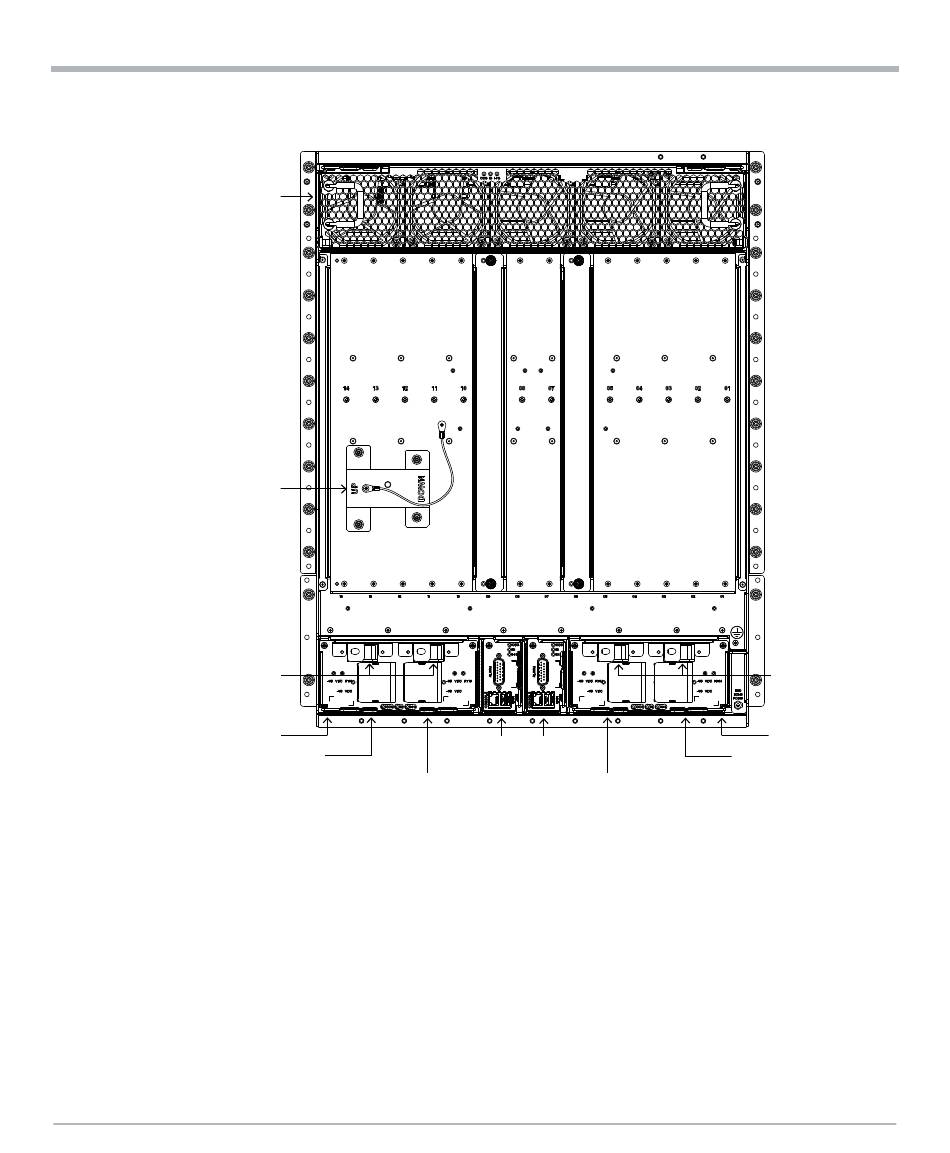

Figure 2-2 Rear Shelf View

Fan Tray
Alignment Tool
Circuit
Circuit
Breakers
Breakers
PEM-B
Phy Slots: 8 to 14
Lower FTM FTM-2
2.3

Enclosure

The AXP1440-C07 shelf consists of a formed 13U sheet metal card cage with structure and
support for the backplane, PEMs, FTMs, SAMs, and 14 card slots.
provides a front view of the shelf.
Mounting holes for bezel brackets are provided, which allows the use of power supply or
card cage (customer designed) bezels. See
characteristics of the enclosure.
AXP1440-C07 Installation and Use (6806800V18A)
Feed B2/B4
Feed B1/B3
Feed B1/B3
Phy Slots: 1 to 7
Phy Slots: 1 to 7
Upper FTM FTM-1
Upper FTM FTM-1
AXP1440-C07 Shelf Description
SAM-B SAM-A
Feed A2/A4
Phy Slots: 8 to 14
Lower FTM FTM-2
for details on the physical
Appendix A
Circuit
Breakers
PEM-A
Feed A1/A3
Phy Slots: 1 to 7
Upper FTM FTM-1
Figure 2-1 on page 64
65
