Shelf Management Module
Detail on the LEDs is provided in the following sections.

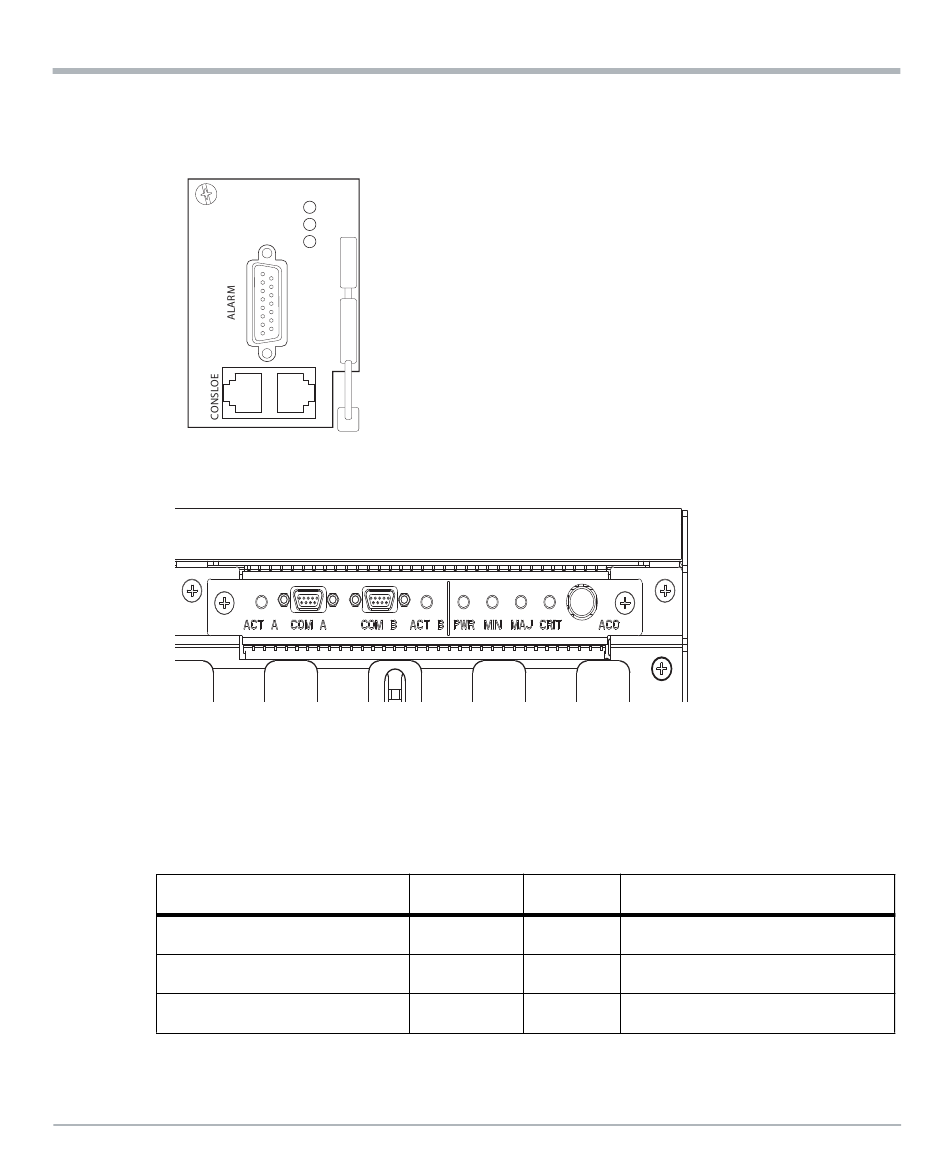

Figure 7-2 SAM1620-D Face Plate

Figure 7-3 ADP1440-D Face Plate

7.3.5.1

SAM1620-D/ADP1440-D Status LEDs

Status is shown using an LED on the SAM1620-D face plate and ADP1440-D. The
illumination state of the LED is normally controlled by the GPIO on the SAM1620-D. The
following tables describe the LED states.
Table 7-3
SAM1620-D Face Plate LED LED Color
IS (In Service)
OOS (Out of Service)
HS (How Swap)
144
OOS
IS
HS
SAM LED Status Indicators
Green
Red
Blue
State State/Condition
On Active, power good
On Failed
On Remove OK
