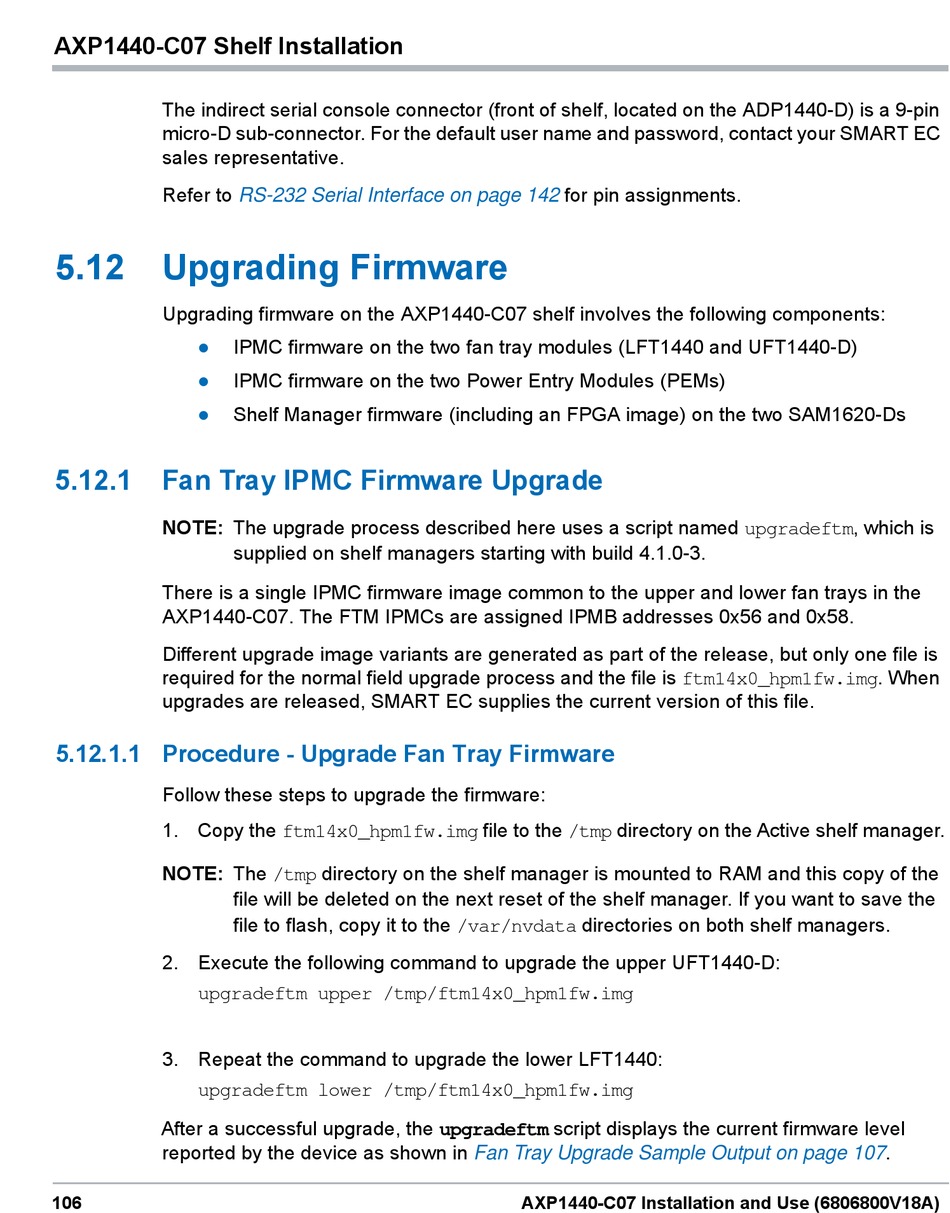

Upgrading Firmware

Upgrading firmware on the AXP1440-C07 shelf involves the following components:
IPMC firmware on the two fan tray modules (LFT1440 and UFT1440-D)

IPMC firmware on the two Power Entry Modules (PEMs)

Shelf Manager firmware (including an FPGA image) on the two SAM1620-Ds

5.12.1

Fan Tray IPMC Firmware Upgrade

NOTE: The upgrade process described here uses a script named upgradeftm, which is
supplied on shelf managers starting with build 4.1.0-3.
There is a single IPMC firmware image common to the upper and lower fan trays in the
AXP1440-C07. The FTM IPMCs are assigned IPMB addresses 0x56 and 0x58.
Different upgrade image variants are generated as part of the release, but only one file is
required for the normal field upgrade process and the file is ftm14x0_hpm1fw.img. When
upgrades are released, SMART EC supplies the current version of this file.

5.12.1.1 Procedure - Upgrade Fan Tray Firmware

Follow these steps to upgrade the firmware:
1. Copy the ftm14x0_hpm1fw.img file to the /tmp directory on the Active shelf manager.
NOTE: The /tmp directory on the shelf manager is mounted to RAM and this copy of the
file will be deleted on the next reset of the shelf manager. If you want to save the
file to flash, copy it to the /var/nvdata directories on both shelf managers.
2. Execute the following command to upgrade the upper UFT1440-D:
upgradeftm upper /tmp/ftm14x0_hpm1fw.img
3. Repeat the command to upgrade the lower LFT1440:
upgradeftm lower /tmp/ftm14x0_hpm1fw.img
After a successful upgrade, the upgradeftm script displays the current firmware level
reported by the device as shown in
106
for pin assignments.
Fan Tray Upgrade Sample Output on page
