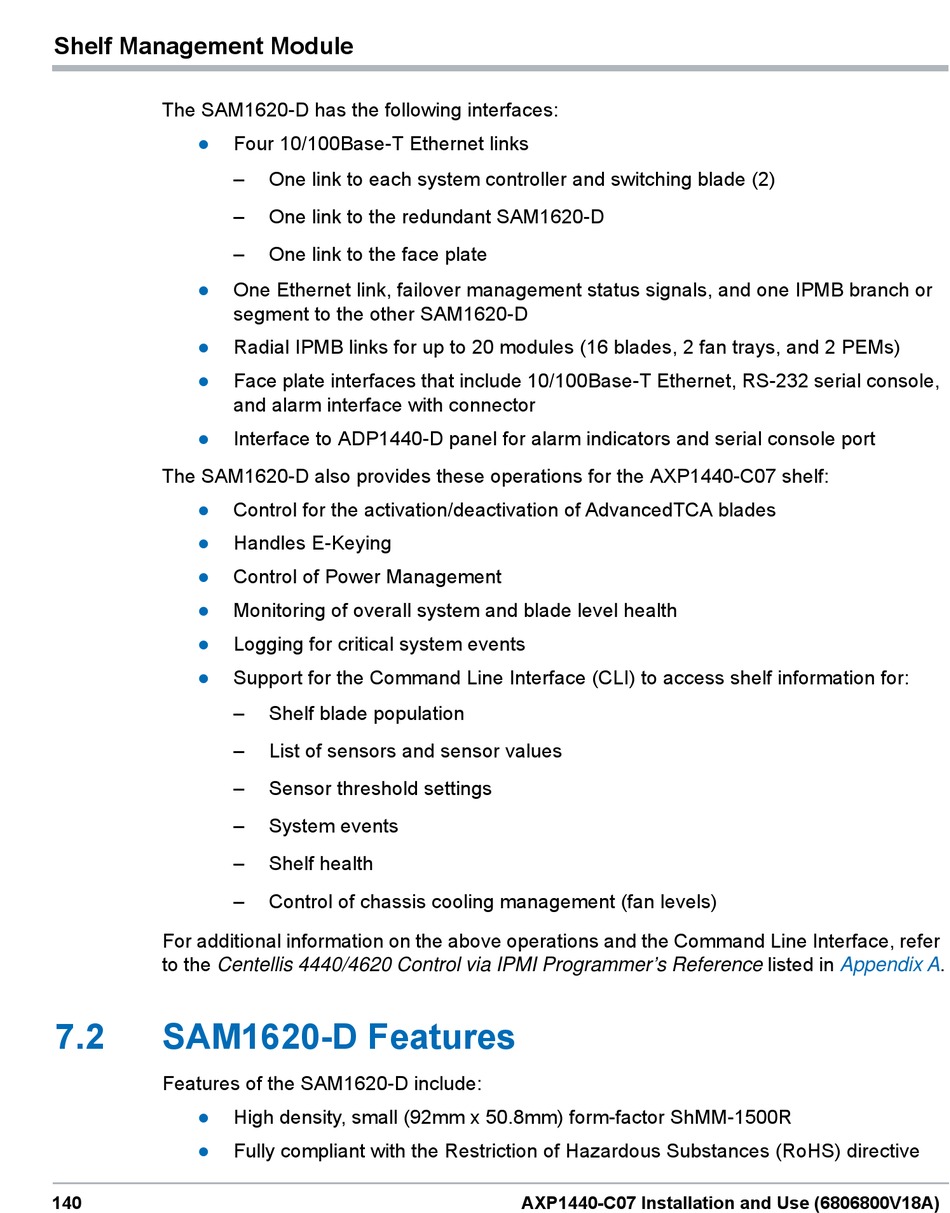

Shelf Management Module
The SAM1620-D has the following interfaces:
Four 10/100Base-T Ethernet links

–
–
–
One Ethernet link, failover management status signals, and one IPMB branch or

segment to the other SAM1620-D
Radial IPMB links for up to 20 modules (16 blades, 2 fan trays, and 2 PEMs)

Face plate interfaces that include 10/100Base-T Ethernet, RS-232 serial console,

and alarm interface with connector
Interface to ADP1440-D panel for alarm indicators and serial console port

The SAM1620-D also provides these operations for the AXP1440-C07 shelf:
Control for the activation/deactivation of AdvancedTCA blades

Handles E-Keying

Control of Power Management

Monitoring of overall system and blade level health

Logging for critical system events

Support for the Command Line Interface (CLI) to access shelf information for:

–
–
–
–
–
–
For additional information on the above operations and the Command Line Interface, refer
to the Centellis 4440/4620 Control via IPMI Programmer's Reference listed in
7.2

SAM1620-D Features

Features of the SAM1620-D include:
High density, small (92mm x 50.8mm) form-factor ShMM-1500R

Fully compliant with the Restriction of Hazardous Substances (RoHS) directive

140
One link to each system controller and switching blade (2)
One link to the redundant SAM1620-D
One link to the face plate
Shelf blade population
List of sensors and sensor values
Sensor threshold settings
System events
Shelf health
Control of chassis cooling management (fan levels)
AXP1440-C07 Installation and Use (6806800V18A)
Shelf Management Module
Appendix A.
