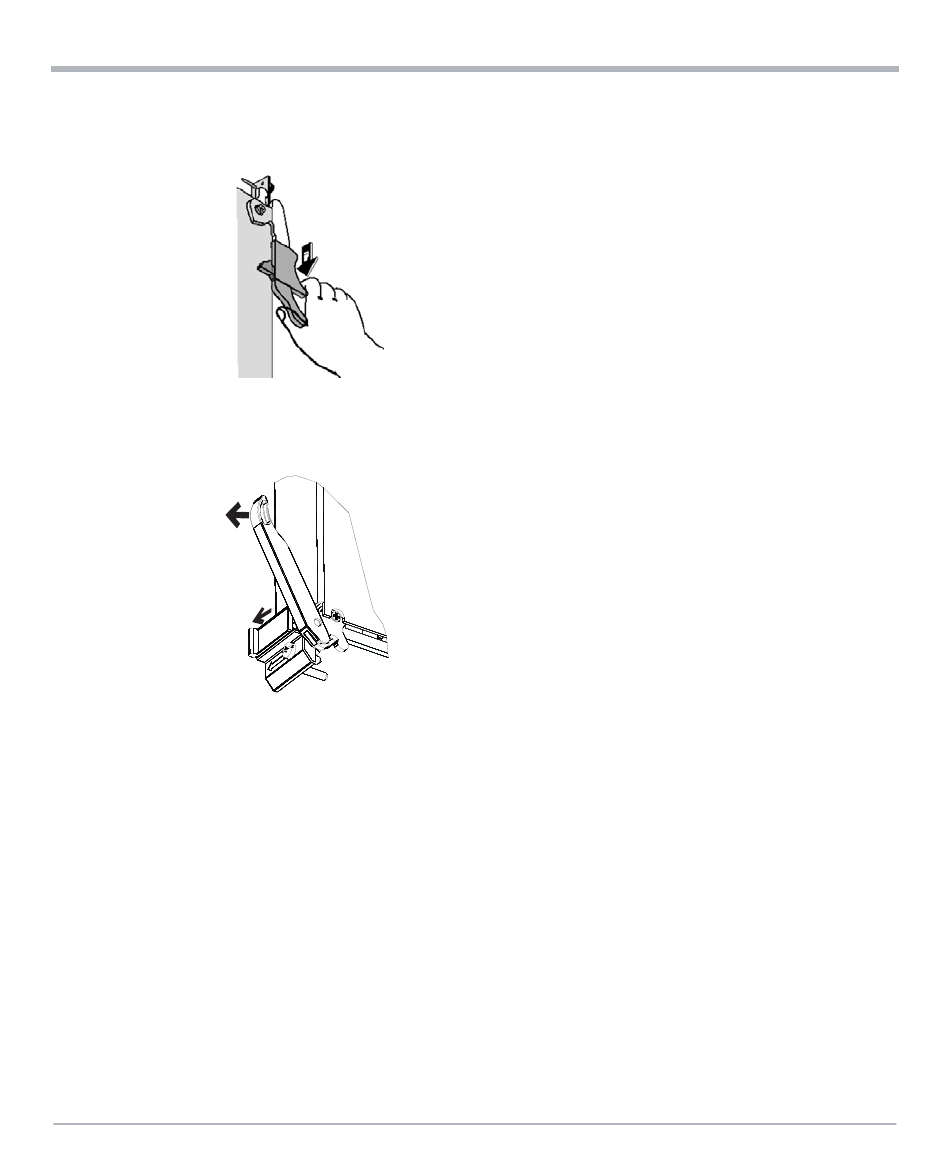

4. Make sure that the top handle of the RTM is in outward position by squeezing the lever
and the latch together.
5. Make sure the bottom handle of the RTM is in an outward position by sliding the latch
into the release position and pulling out the handle outward to unlatch the handle from
the face plate. Do not pull the handle fully outward.
6. Place the RTM's top and bottom edges in the card guides of the slot.
7. Apply equal and steady pressure to the RTM to carefully slide it into the shelf until you
feel resistance. Continue to gently push until the RTM connectors engage with the front
blade.
8. Squeeze the lever and the latch together and hook the upper handle into the shelf rail
recesses.
9. Fully insert the RTM and lock it to the shelf by pressing the two components of the
upper handle together and slide the latch of the bottom handle outward. Turn both the
upper and lower handles of the RTM toward the face plate.
If your shelf is powered, as soon as the RTM is connected to the front switch blade
the blue LED illuminates and remains illuminated until both the lower handle of the
RTM and the lower handle of the front switch blade are closed.
AXP1440-C07 Installation and Use (6806800V18A)
Top Handle
Bottom Handle
