■Wiring

•Connect the M12 connector cable.

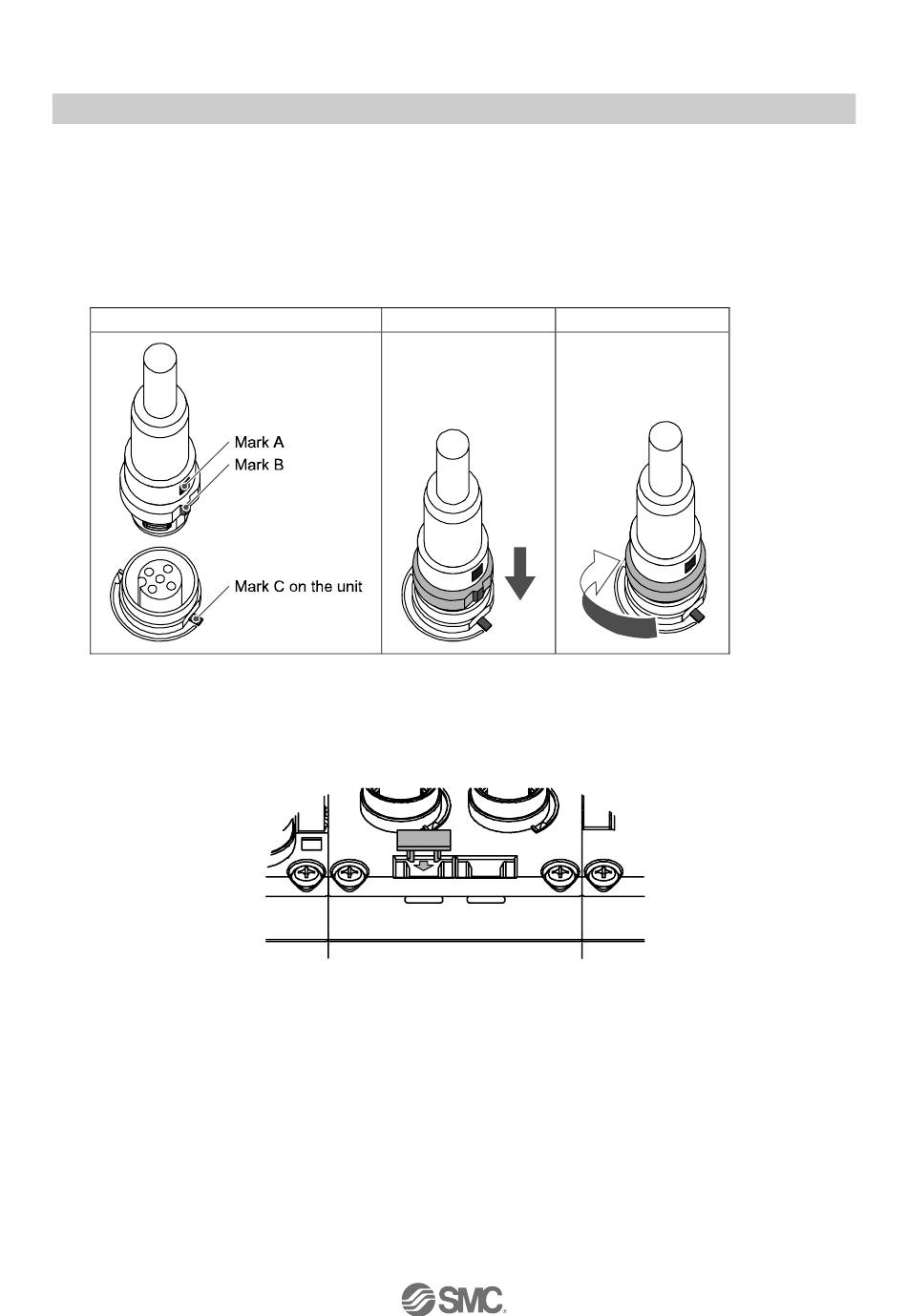

The M12 SPEEDCON connector connection method is explained below.
(1)Align mark B on the metal bracket of the cable connector (plug) with mark A.
(2)Align with mark C on the unit and insert the connector vertically.
If they are not aligned, the connector cannot be connected correctly.
(3)When mark B has been turned 180 degrees (1/2 turn), wiring is complete. Confirm that the connection is
not loose. If turned too far, it will become difficult to remove the connector.
(1)
•Mounting the marker
The signal name of the input or output devices and unit address can be written on the marker, and can be
installed on each unit.
Mount the marker (EX600-ZT1) into the marker groove as required.
(2)
-14-
(3)
No.EX##-OMO0027
