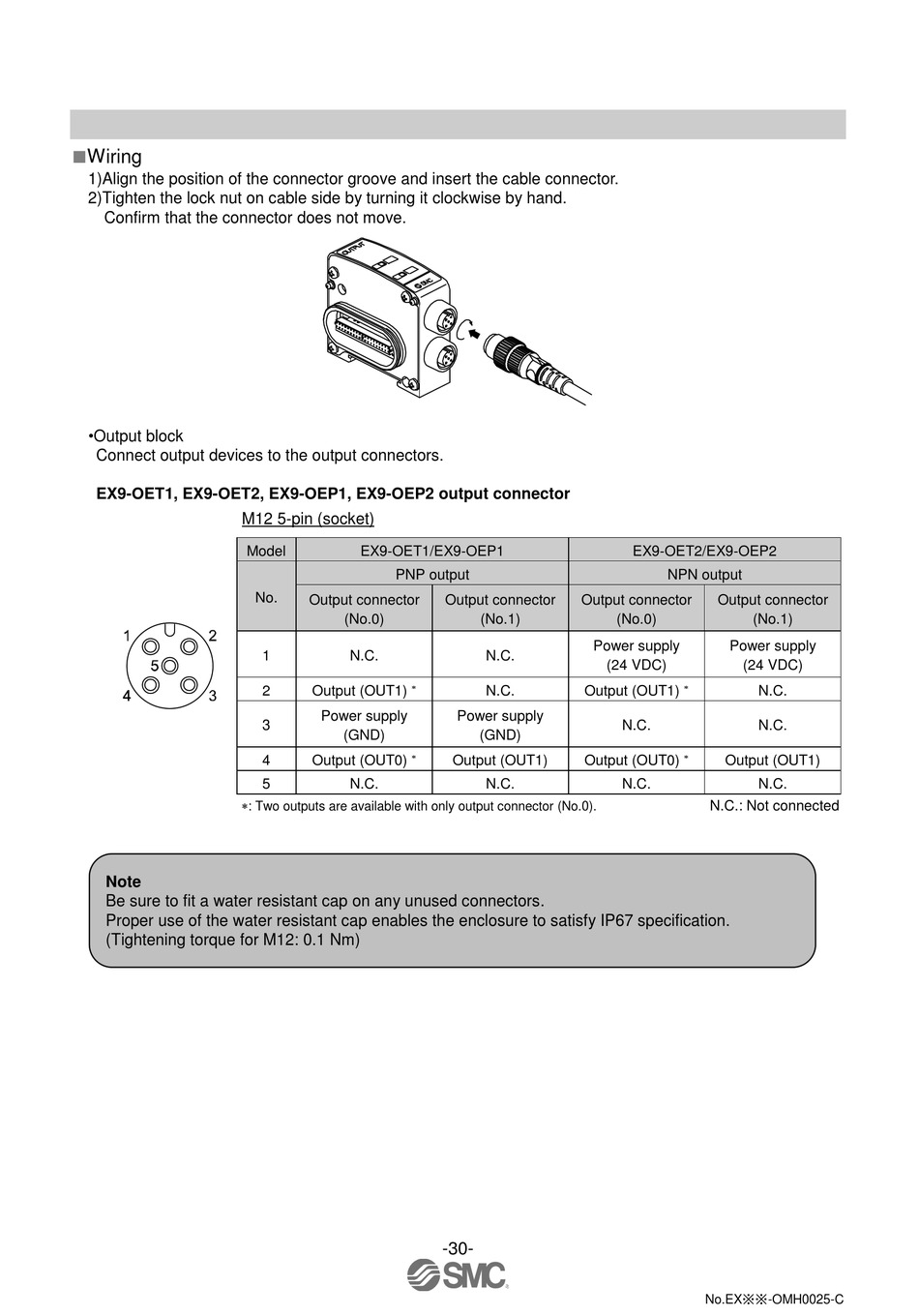

Wiring

1)Align the position of the connector groove and insert the cable connector.
2)Tighten the lock nut on cable side by turning it clockwise by hand.
Confirm that the connector does not move.
•Output block
Connect output devices to the output connectors.
EX9-OET1, EX9-OET2, EX9-OEP1, EX9-OEP2 output connector
M12 5-pin (socket)
: Two outputs are available with only output connector (No.0).
Note
Be sure to fit a water resistant cap on any unused connectors.
Proper use of the water resistant cap enables the enclosure to satisfy IP67 specification.
(Tightening torque for M12: 0.1 Nm)
Model EX9-OET1/EX9-OEP1
PNP output
No.
Output connector
(No.0)
1 N.C.

2 Output (OUT1)
Power supply
3
(GND)

4 Output (OUT0)
5 N.C.
Output connector Output connector
(No.1)
Power supply
N.C.
(24 VDC)
N.C. Output (OUT1)
Power supply
(GND)
Output (OUT1) Output (OUT0)
N.C.
-30-
EX9-OET2/EX9-OEP2
NPN output
Output connector
(No.0) (No.1)
Power supply
(24 VDC)

N.C.
N.C. N.C.

Output (OUT1)
N.C. N.C.
N.C.: Not connected
