•Similarly, allocate all of the I/O units, SI unit and diagnostic data (when the diagnostic data is specified.).
•Supply power after connecting the product. Then, click [Reload I/O Devices] to set the device on-line.

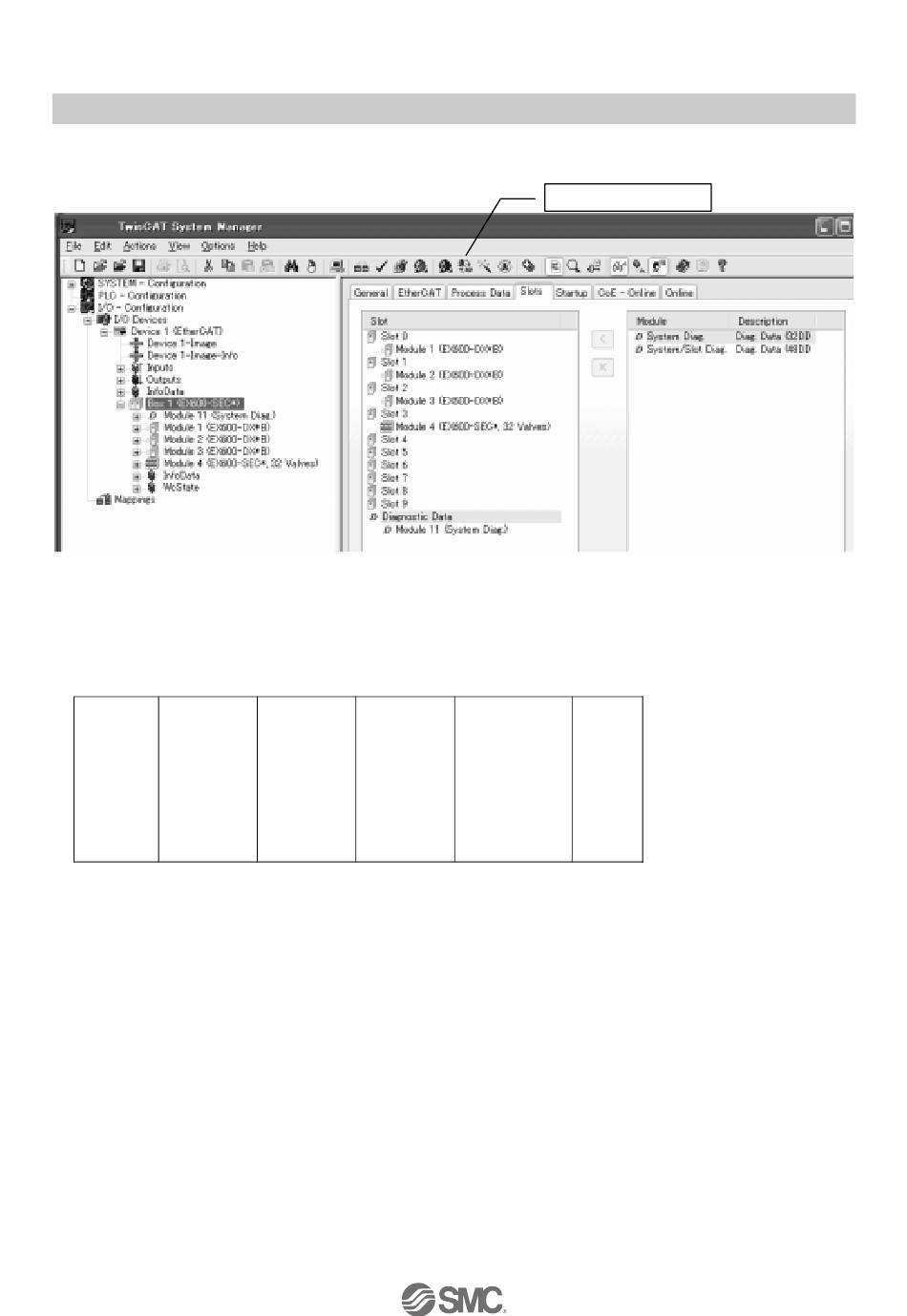

∗: The display above shows an example of the software configuration structure of the EX600 series.
∗: Allocate the diagnostic data to Module 11 when its setting is other than the diagnostic mode 0.
(The above shows when diagnostic mode 1 is selected)
Slot 0
DX B
Digital
End
output
plate
1 byte
Input
Module 1
Slot 1 Slot 2
DX B DX B
Digital Digital
output output
1 byte 1 byte
Input Input
Module 2 Module 3
-61-
Reload I/O Devices
Slot 3
SEC
SI unit
(32 output) Valve
4 byte
Output
Module 4
