Diagnostic

By changing the diagnosis switch, the diagnostic data shown below is assigned to the head of input data of
the I/O map. (Refer to "Setting and adjustment" for setting the switch.)
Mode
0 No diagnostic data.
1 System diagnosis
2 System diagnosis + Unit diagnosis (Up to 10 units)

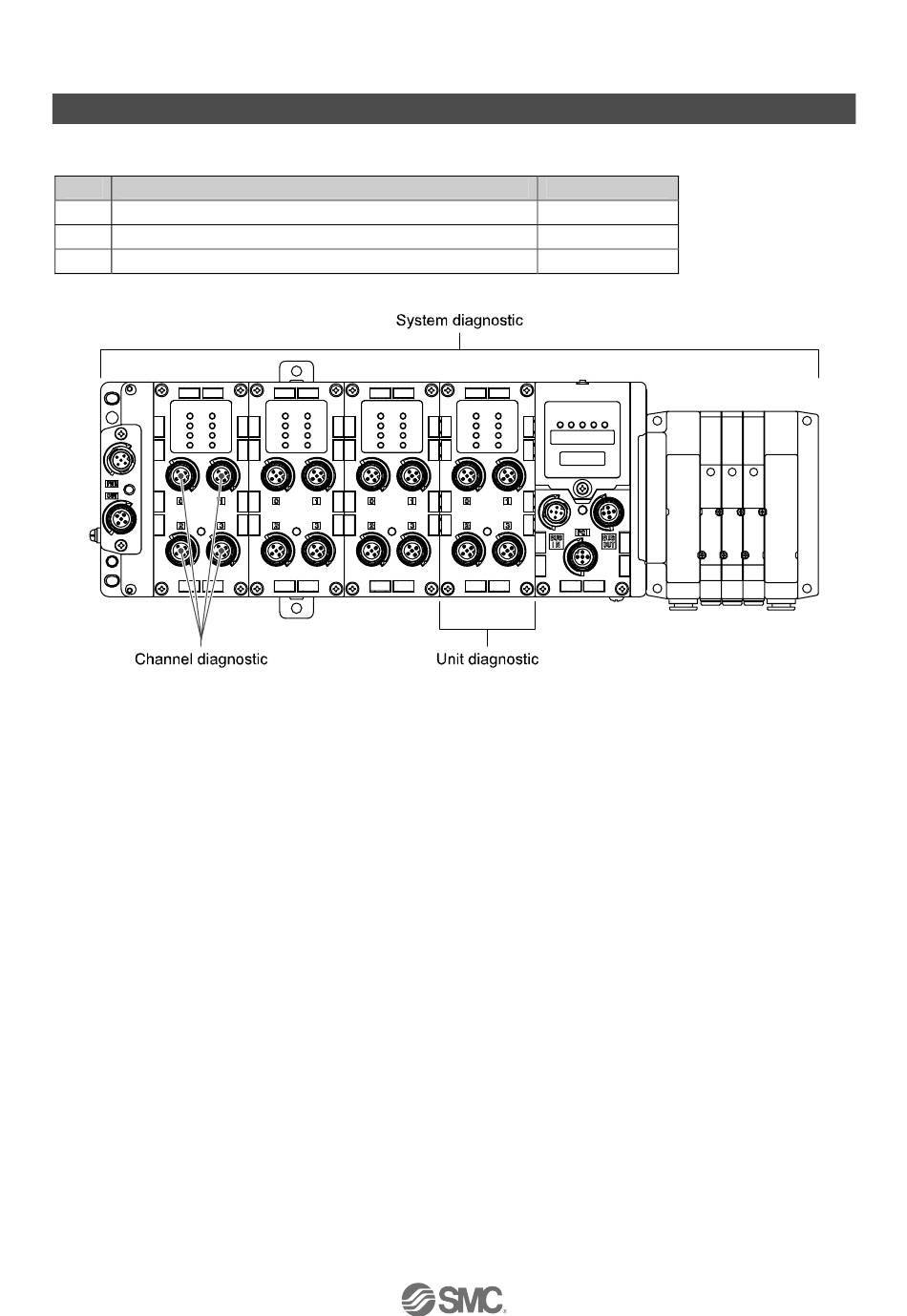

∗: Channel diagnosis cannot be assigned to the diagnosis area of the input.
Diagnostic data
-63-
Diagnostic size
0 byte
4 byte
6 byte
