Mounting and Installation

■Wiring

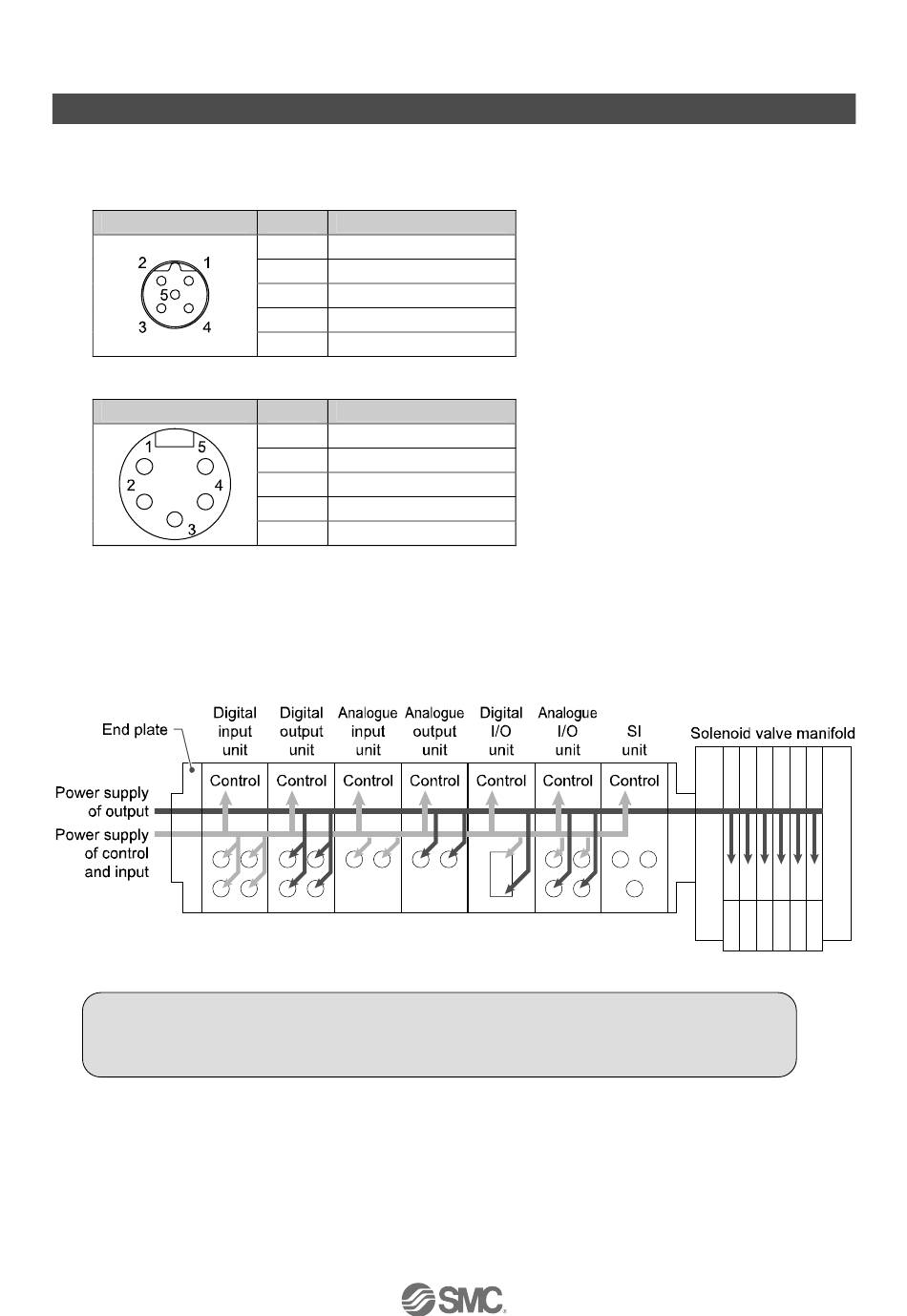

○Connector pin assignment
(1)EX600-ED2-
Configuration
(2)EX600-ED3-
Configuration
○Regarding the 2 types of power supply
•Power supply for control and input: Supplying power for control of each unit's power supply for control and
•Power supply for output: Supplying power for equipment connected to output port of Digital and Analogue
●Precautions for handling
Be sure to fit a seal cap on any unused connectors. Proper use of the seal cap enables the
enclosure to achieve IP67 specification.
Pin No. Signal name
1 24 V (Output)
2 0 V (Output)
3 24 V (Control and input)
4 0 V (Control and input)
5 F.E.
Pin No. Signal name
1 0 V (Output)
2 0 V (Control and input)
3 F.E.
4 24 V (Control and input)
5 24 V (Output)
also for device connected to input port of Digital and Analogue unit.
unit, and also power supply for solenoid valve manifold.
-26-
No.EX##-OMO0027
