Model Indication and how to order

EX600-ED -
End plate at D side
Connector
Symbol Content
2 M12 (5 pin)
3 7/8 inch (5 pin)

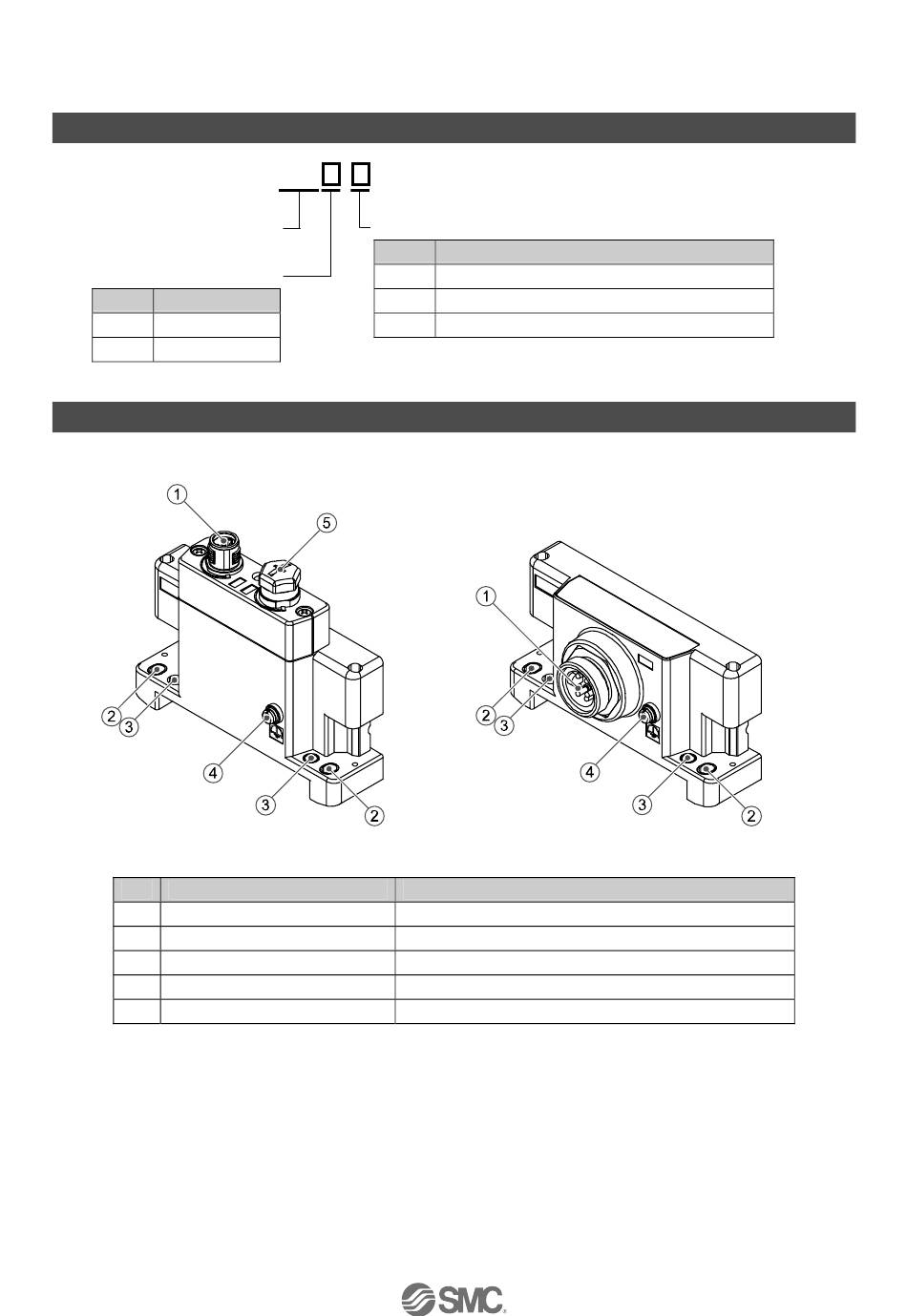

Summary of Product parts
•EX600-ED2-
No.
1 Power connector
2 Fixing hole for direct mounting
3 DIN rail fixing hole
4 F.E. terminal
5 Connector (Not used)
End plate
Mounting method
Symbol
Nil
2
3
Description
Connector for power supply to SI unit and I/O unit.
Holes for direct mounting.
Holes for fix DIN rail mounting.
Terminal for ground connection.
Unused connector. Do not remove seal cap.
Content
No DIN rail bracket
With DIN rail bracket
With DIN rail bracket (Specified for SY series)
•EX600-ED3-
Function
-25-
No.EX##-OMO0027
