SMC Networks EX600-SEC Series Operation Manual page 14

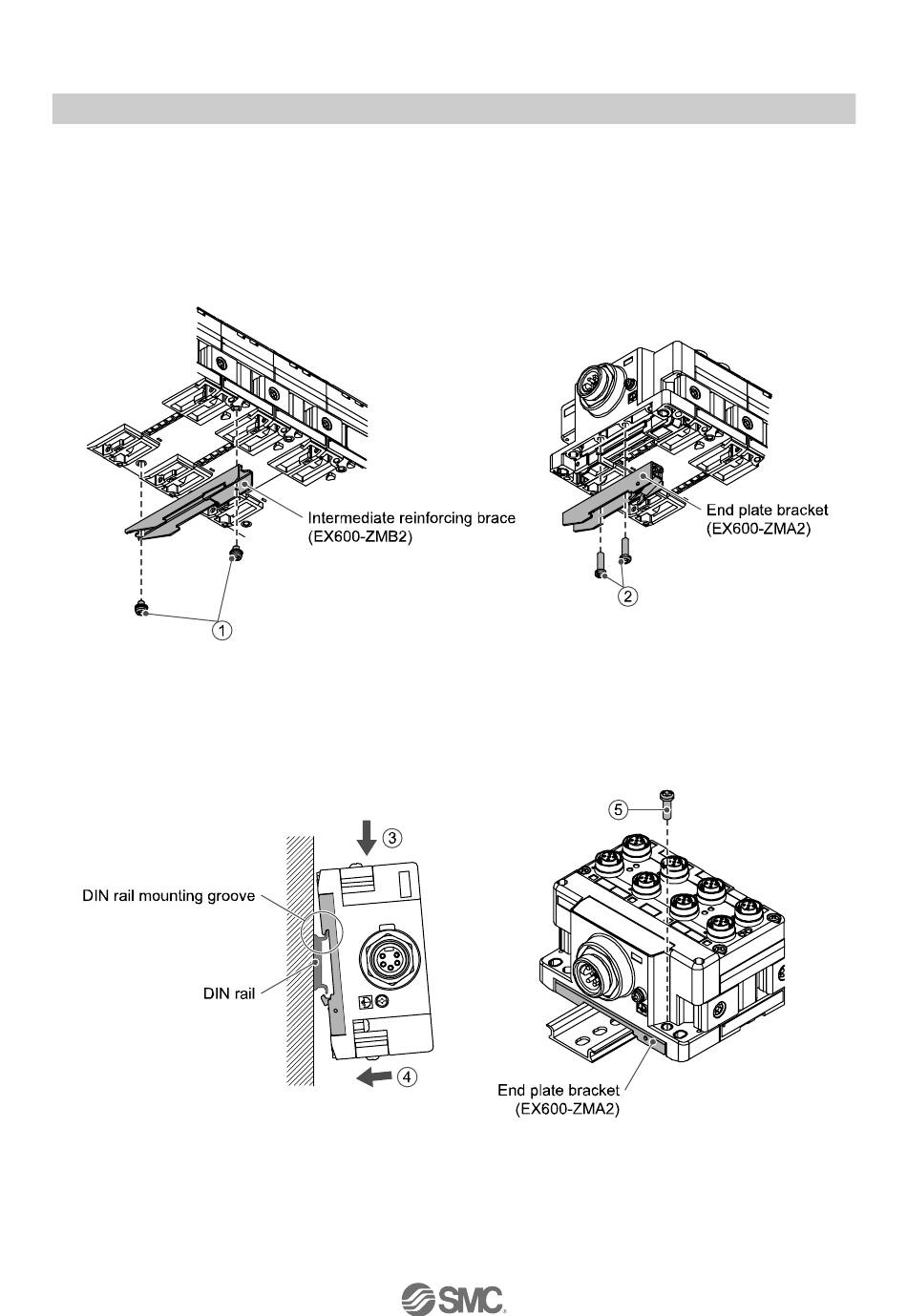

•DIN rail mounting
(Not available for SY series valves. Refer to the SY catalog.)
(1)When joining six or more units, fix the middle part of the complete EX600 unit with an intermediate
reinforcing brace (EX600-ZMB2) before mounting, using 2-M4 x 6 screws.
Tightening torque: 0.7 to 0.8 Nm.
(2)Mount the end plate bracket (EX600-ZMA2) to the end plate at the opposite end to the valves, using
2-M4 x 14 screws.
Tightening torque: 0.7 to 0.8 Nm.
(3)Hook the DIN rail mounting groove on to the DIN rail.
(4)Press the manifold using its side hooked to the DIN rail as a fulcrum until the manifold is locked.
(5)Fix the manifold by tightening the DIN rail fixing screws of the EX600-ZMA2. (M4 x 20)
Tightening torque: 0.7 to 0.8 Nm.
The tightening torque at the valve side depends on the valve type.
Refer to the operation manual of the corresponding valve manifold.
-13-
No.EX##-OMO0027
