Mounting and Installation
■Wiring

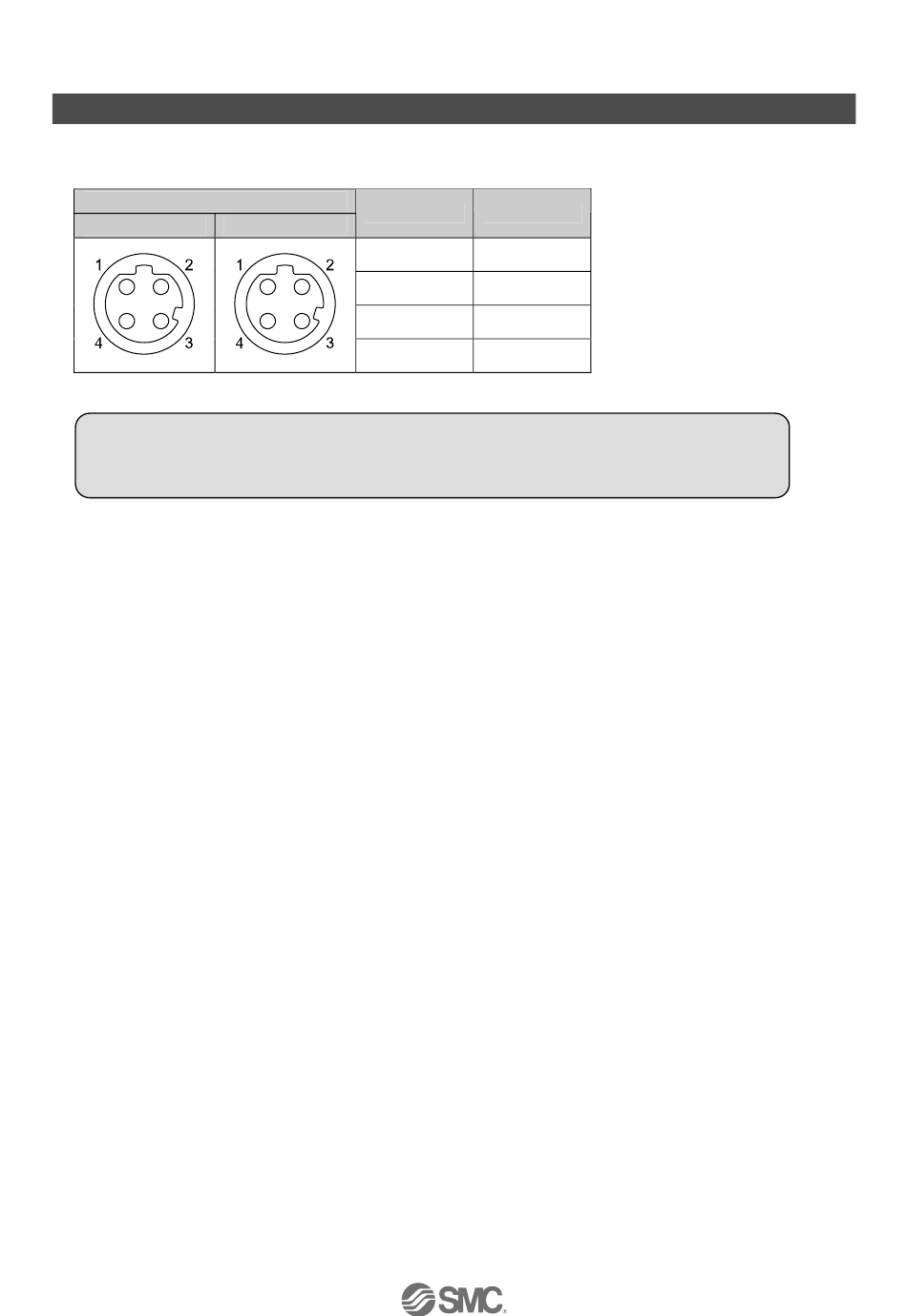

•Connector pin assignment
Configuration
BUS IN
●Precautions for handling
Be sure to fit a seal cap on any unused connectors. Proper use of the seal cap enables the
enclosure to achieve IP67 specification.
Pin number
BUS OUT
1
2
3
4
Signal name
TD+
RD+
TD-
RD-
