SMC Networks EX600-SEC Series Operation Manual page 20

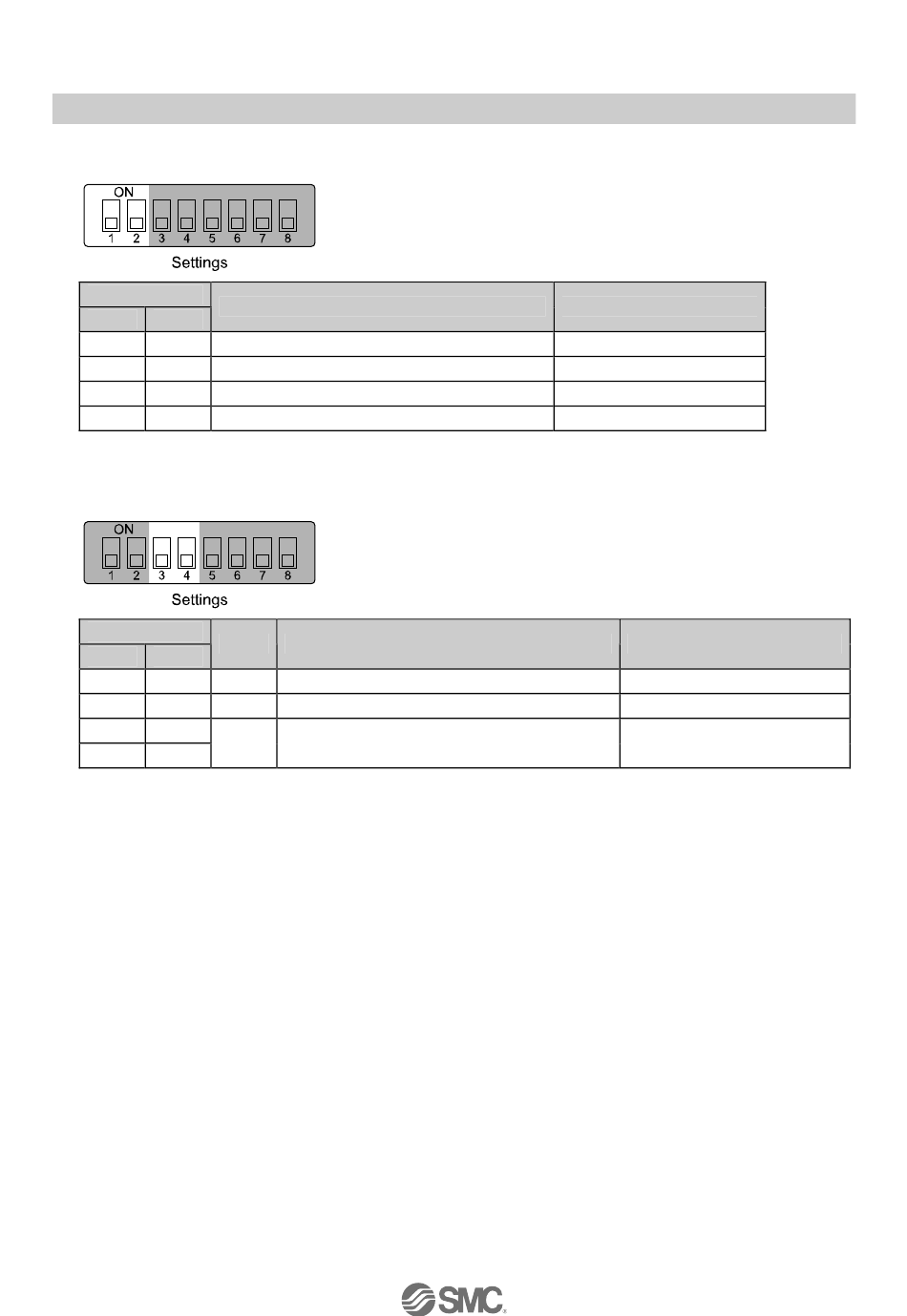

•V_SEL switch: A function to select the number of occupied valve outputs.
Select the number of outputs (size) occupied by the SI unit.
Settings
1 2
OFF OFF Number of valves = 32 outputs (Default setting)
OFF ON Number of valves = 24 outputs
ON OFF Number of valves = 16 outputs
ON ON Number of valves = 8 outputs
∗: Set the number of occupied valve outputs to at least the number of valves used.
•Diagnostics switch: Allocates the diagnostic data to the input data.
Settings
Mode
3 4
OFF OFF 0
OFF ON 1
ON OFF
2
ON ON
Content
Content
Input data only (Default setting)
Input data + System diagnosis
Input data + System diagnosis + Unit diagnosis
-19-
SI unit output data size
4 byte
3 byte
2 byte
1 byte
Diagnostic size set for the input
0 byte
4 byte
6 byte
No.EX##-OMO0027
