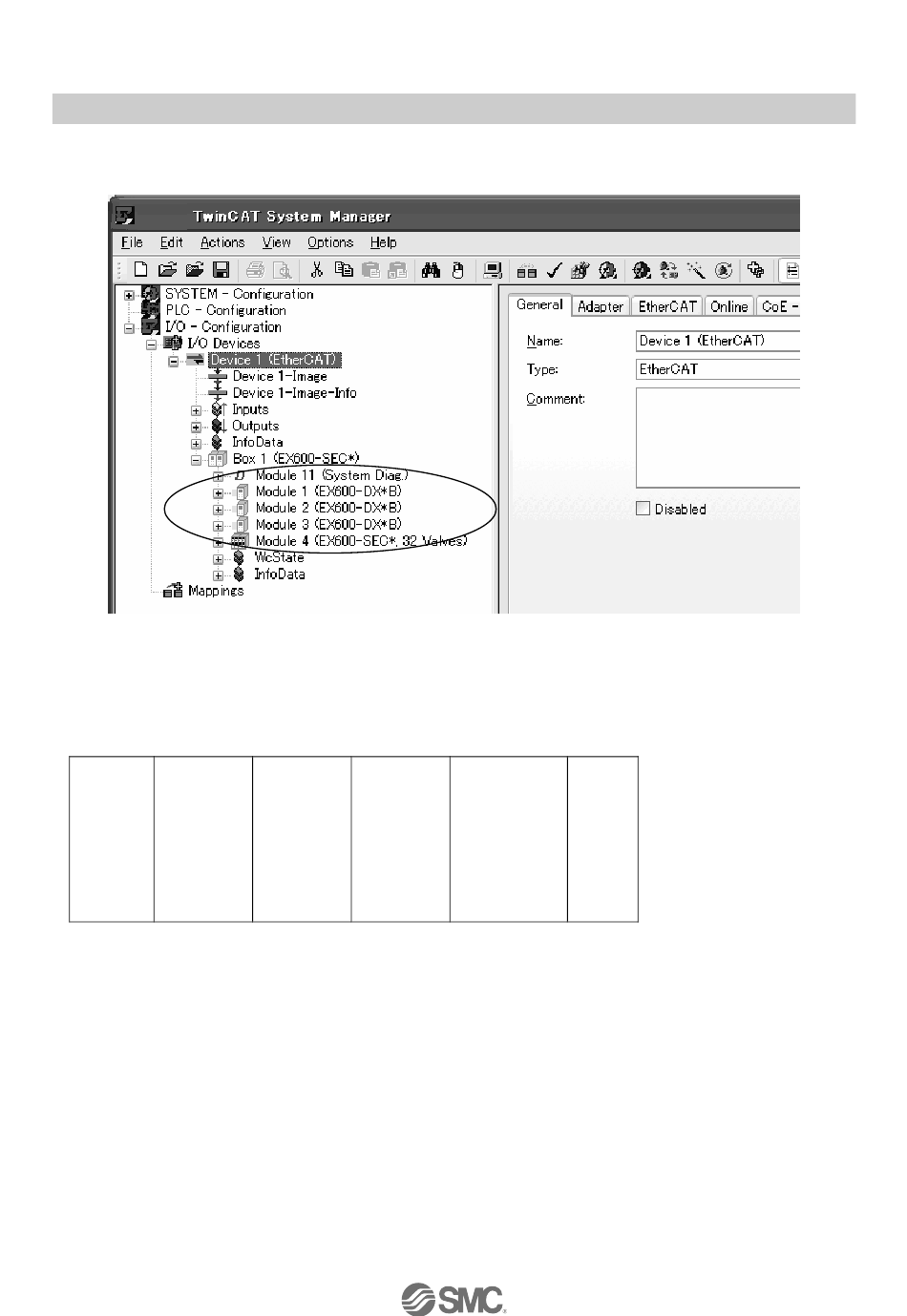

•Left click the [+] for [Box 1(EX600-SEC∗)], to display the unit connected and the diagnostic status, as shown
in the screen below.
∗: The display above shows an example of the software configuration structure of the EX600 series.
∗: Allocate the diagnostic data to Module 11 when its setting is other than the diagnostic mode 0.
(The above shows diagnostic mode 1 is selected)
Slot 0
DX B
Digital
End
input
plate
1 byte
Input
Module 1
Slot 1 Slot 2
DX B DX B
Digital Digital
input input
1 byte 1 byte
Input Input
Module 2 Module 3
-56-
Slot 3
SEC
SI unit
(32 output) Valve
4 byte
Output
Module 4
