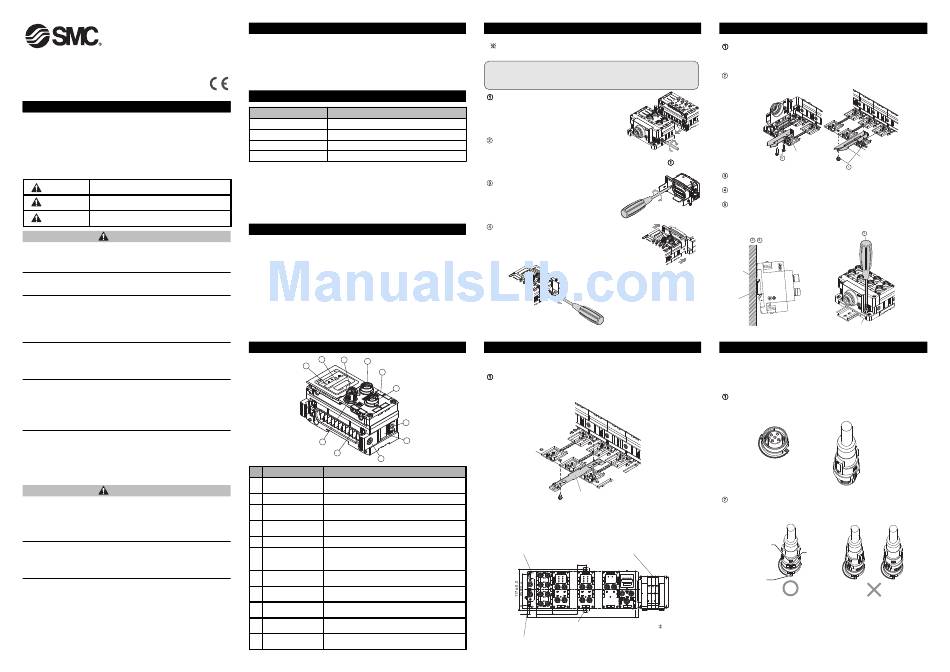

SMC Networks EX600-SPR1 Installation & Maintenance Manual

EX600-TFL28GB
Installation & Maintenance Manual
Fieldbus System - SI unit
Type EX600-SPR1 / EX600-SPR2
1. Safety Instructions
These safety instructions are intended to prevent hazardous situations
and/or equipment damage.
These instructions indicate the level of potential hazard by label of
"DANGER", "WARNING"or "CAUTION", followed by important safety
information which must be carefully followed.
To ensure safety of personnel and equipment the safety instructions in
this manual and the product catalogue must be observed, along with
other relevant safety practices.
In extreme conditions, there is a possible result
DANGER
of serious injury or loss of life.
If instructions are not followed there is a
WARNING
possibility of serious injury or loss of life.
If instructions are not followed there is a
CAUTION
possibility of injury or equipment damage.
WARNING
Do not disassemble, modify (including change of printed circuit
board) or repair this product.
Injury or failure can result.
Do not perform operation or setting with wet hands.
There is a risk of electric shock.
Do not operate the product beyond the specification range.
Do not use the product for flammable or harmful gases or liquids.
Fire, malfunction, or damage to the product can result.
Please confirm the specifications before use.
Do not operate the product in an environment where flammable
or explosive gases may be present.
Fire or an explosion can result.
The product is not designed to be explosion proof.
The following instructions must be followed when using the
product in an interlocking circuit:
• Provide a multiple interlocking system, such as a mechanical
protection system.
• Check the product regularly to ensure proper operation.
Otherwise malfunction can result, causing an accident.
The following instructions must be followed during maintenance:
• Turn off the power supply.
• Stop the air supply, exhaust the residual pressure and verify
that the air is released to atmosphere before performing
maintenance. Otherwise injury can result.
CAUTION
Perform a proper functional check after completing
maintenance.
Stop operation if the equipment does not function properly.
Safety cannot be assured due to unexpected malfunction.
Provide grounding to assure the safety and noise immunity of
the fieldbus system.
Individual grounding should be provided close to the product with an
earth cable as short as possible.
When handling, assembling and replacing the unit:
• Do not touch any sharp metal parts of the connector or plug.
• Do not apply excessive force to the unit.
The connecting portions of the unit are firmly joined with seals.
• When joining units, take care not to get fingers caught
between units.
Injury can result.
2. How to Order
Refer to the catalogue or operation manual for this product.
3. Specifications
Item Specifications
Enclosure IP67 (Combination with valve manifold)
Environment Pollution degree 2 (UL508)
Operating temperature -10 to +50 °C
Ambient humidity 35 to 85%RH (No dew condensation)
Refer to the catalogue or operation manual for this product to get
information about product specifications in detail.
4. Outline dimensions(mm)
Refer to the catalogue or operation manual for this product.
5. Names / Functions of individual Parts
2 3
4
1
5
6
7
8
11
10
9
No. Part Usage
Status Indicates the unit status. (Refer to the "Trouble
1
indication LED Shooting" section for further details.)
2 Indication cover Open to gain access to the setting switches.
Indication cover set
3 Loosen to open the indication cover.
screw
Connector (BUS Connector for FieldBus output. BUS IN and
4
OUT) (socket) BUS OUT are connected inside the unit.
5 Marker groove Groove to mount an indication marker.
Connector
6 (for handheld terminal) Connector to connect a handheld terminal.
(socket)
Valve plate mounting
7 Holes for fixing the valve plate.
holes
Valve plate mounting
8 Groove for mounting the valve plate.
groove
Joint bracket to join the adjacent unit, fixed with
9 Joint bracket
attached screws.
10 Connector for unit Conveys the signals and power supplies to the
(plug) adjacent unit.
Connector (BUS Connector for FieldBus input. BUS IN and
11
IN) (plug) BUS OUT are connected inside the unit.
6. Assembly
Composing the unit as a manifold.
: If the unit was purchased as a manifold, the work described in this
section is not necessary.
Note
Be sure to turn off the power when carrying out the work to
compose the unit as a manifold.
Connect a unit to the end plate. Digital input
units, digital output units and analog units
can be connected in any order.
(Tightening torque: 1.5 to 1.6 Nm)
Connection of SI unit
Connect the SI unit after connecting all of the
required I/O units together.
The connection procedure is the same as the previous step
Mounting the valve plate
Mount the valve plate to the manifold valve
with valve fixing screws.
(Tightening torque: 0.6 to 0.7 Nm)
Connect the SI unit to the manifold valves.
Insert the valve plate into the valve plate mounting
groove at the side of the SI unit.
Fix using the valve plate fixing screws.
(Tightening torque:0.7 to 0.8 Nm)
7. Installation
<Installation method>
Direct mounting
When joining six or more units, fix the middle part of the complete
EX600 unit with an intermediate reinforcing brace (EX600-ZMB1) before
mounting (Refer to the figure below.) using 2xM4 screws (Tightening
torque: 0.7 to 0.8 Nm)
Intermediate reinforcing brace
(EX600-ZMB1)
Fix and tighten the end plates at one end of the unit as shown in the
figure below. (Tightening torque: 0.7 to 0.8 Nm)
Fix the end plate at the valve side while referring to the operation
manual of the corresponding manifold valve.
End plate Manifold valve
23.5
5.5 47 47xm
26 47xn 8
Intermediate reinforcing brace
(Tolerance: 0.2 mm)
2xM4 screws
2xM4 screws (tightening torque: 0.7 to 0.8 Nm)
7. Installation
(continued)
<DIN rail mounting>
When joining six or more units, fix the middle part of the complete
EX600 unit with an intermediate reinforcing brace (EX600-ZMB2)
before mounting, using 2xM4 screws. (Tightening torque: 0.7 to 0.8
Nm)
Mount the end plate bracket (EX600-ZMA2) to the end plate, using
2xM4 screws. (Tightening torque: 0.7 to 0.8 Nm)
End plate bracket
(EX600-ZMA2)
.
Hook the DIN rail mounting groove to the DIN rail. (See the figure
below.)
Press the manifold using its side hooked to the DIN rail as a fulcrum
until the manifold is locked.
Fix the manifold by tightening the DIN rail fixing screws of the
EX600-ZMA2. (Tightening torque: 0.7 to 0.8 Nm)
The tightening torque at the valve side depends on the valve type.
Fulcrum
DIN rail
8. Wiring
<SPEEDCON Wiring method>
The M12 connector can be mated with a SPEEDCON
connector.
Set the projected portion of the cable connector metal ring (plug /
socket) to the mark at cable end.
Push the connector straight to insert it into the receptacle of the unit.
If inserted without aligning the mark, the connector will not mate with
the receptacle.
Mark at cable end
Projected
portion
Mark on the unit
Intermediate reinforcing
brace (EX600-ZMB2)
End plate bracket
(EX600-ZMA2)
