How to Programme

2.1.2 How to Operate Numeric LCP (NLCP)

The following instructions are valid for the NLCP (LCP 101).
The control panel is divided into four functional groups:
1. Numeric display.
2. Menu key and indicator lights (LEDs) - changing
parameters and switching between display
functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
NOTE
Parameter copy is not possible with Numeric Local Control
Panel (LCP101).
Select one of the following modes:
Status Mode: Displays the status of the frequency
converter or the motor.
If an alarm occurs, the NLCP automatically switches to
status mode.
A number of alarms can be displayed.
Quick Set-up or Main Menu Mode: Display parameters and
parameter settings.
1
Status
2
Menu
OK
On
3
Warn.
Alarm
Hand
4 O
on

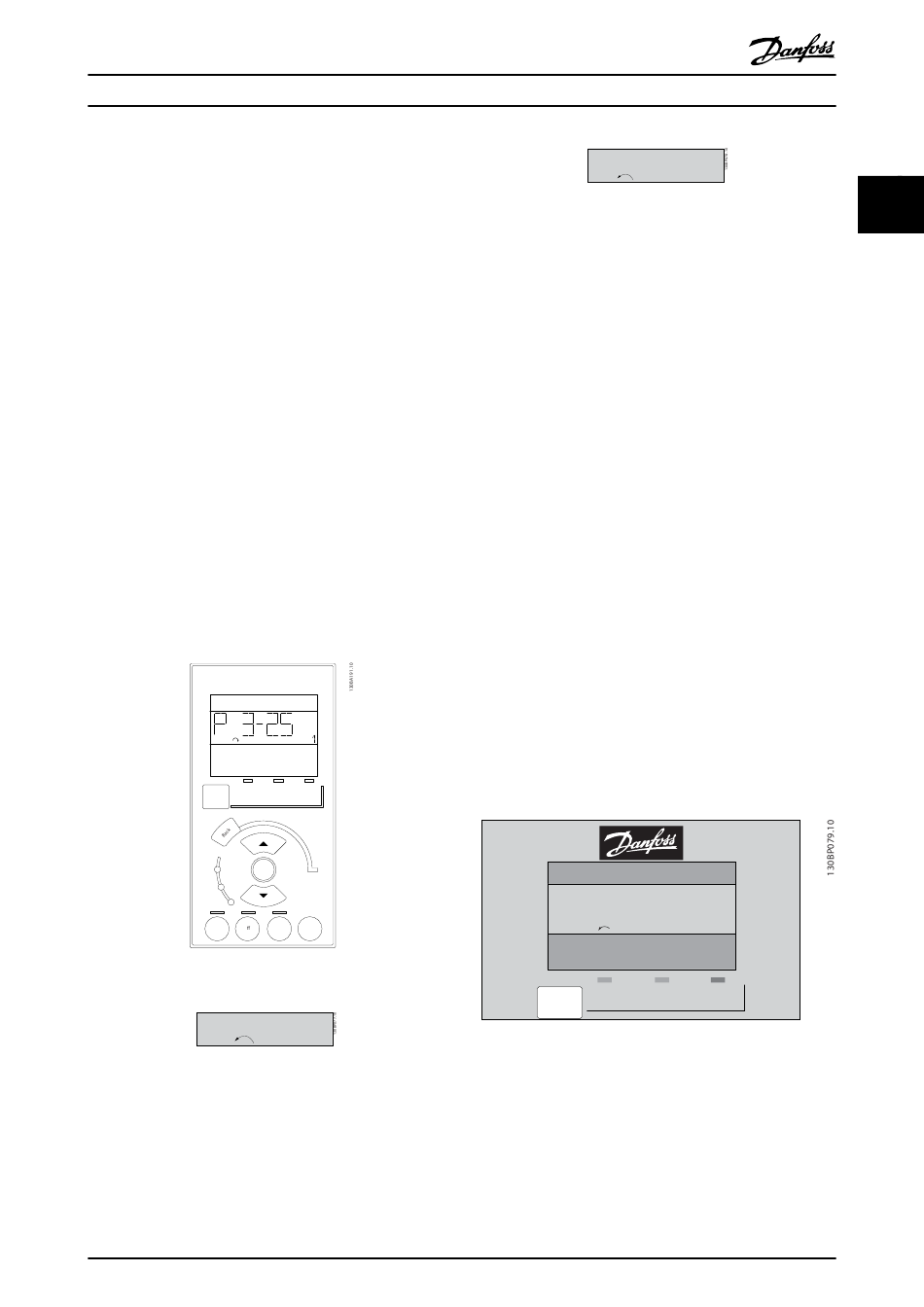

Illustration 2.1 Numerical LCP (NLCP)
22.8
Illustration 2.2 Status Display Example
Indicator lights (LEDs):
•
Green LED/On: Indicates if control section is on.
•
Yellow LED/Wrn.: Indicates a warning.
•
Flashing red LED/Alarm: Indicates an alarm.
®
VLT HVAC Drive Programming Guide
Setup
Quick Main
Setup Menu
Auto
Reset
on
rpm
Setup 1
®
MG.11.CC.02 - VLT is a registered Danfoss trademark
A 17
Illustration 2.3 Alarm Display Example
Menu key
[Menu] Select one of the following modes:
•
Status
•
Quick Setup
•
Main Menu
Main Menu is used for programming all parameters.
The parameters can be accessed immediately unless a
password has been created via 0-60 Main Menu Password,
0-61 Access to Main Menu w/o Password, 0-65 Personal Menu
Password or 0-66 Access to Personal Menu w/o Password.
Quick Setup is used to set up the frequency converter
using only the most essential parameters.
The parameter values can be changed using the up/down
arrows when the value is flashing.
Select Main Menu by pressing the [Menu] key a number of
times until the Main Menu LED is lit.
Select the parameter group [xx-__] and press [OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter select the array
number and press [OK]
Select the wanted data value and press [OK]
Navigation Keys [Back] for stepping backwards
▼ ▲
Arrow [ ] [ ] keys are used for manoeuvring between
parameter groups, parameters and within parameters.
[OK] is used for choosing a parameter marked by the
cursor and for enabling the change of a parameter.
P 2-03
Status Quick
Menu
Setup
Operation Keys
Keys for local control are found at the bottom of the
control panel.
Setup 1
2
Setup 1
Main
Menu
