7. How to operate the frequency converter
The parameter shortcut
can be carried out by holding down the [Main Menu] key for 3 seconds. The parameter shortcut allows direct access to any parameter.

7.1.3. How to operate numeric LCP (NLCP)

The following instructions are valid for the NLCP (LCP 101).
The control panel is divided into four functional groups:
1. Numeric display.
2. Menu key and indicator lights (LEDs) - changing parameters and
switching between display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
NB!
Parameter copy is not possible with Numeric Local
Control Panel (LCP101).
Select one of the following modes:
7
Status Mode: Displays the status of the drive or the motor.
If an alarm occurs, the NLCP automatically switches to status mode.
A number of alarms can be displayed.
Quick Setup or Main Menu Mode:
settings.
Indicator lights (LEDs):
• Green LED/On: Indicates if control section is on.
• Yellow LED/Wrn.: Indicates a warning.
• Flashing red LED/Alarm: Indicates an alarm.
Menu key
[Menu] Select one of the following modes:
• Status
• Quick Setup
• Main Menu
Main Menu
is used for programming all parameters.
The parameters can be accessed immediately unless a password has been created via par. 0-60, par. 0-61, par. 0-65 or par. 0-66.
Quick Setup is used to set up the drive using only the most essential parameters.
The parameter values can be changed using the up/down arrows when the value is flashing.
Select Main Menu by pressing the [Menu] key a number of times until the Main Menu LED is lit.
Select the parameter group [xx-__] and press [OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter select the array number and press [OK]
54
Display parameters and parameter
®
MG.20.M4.02 - VLT

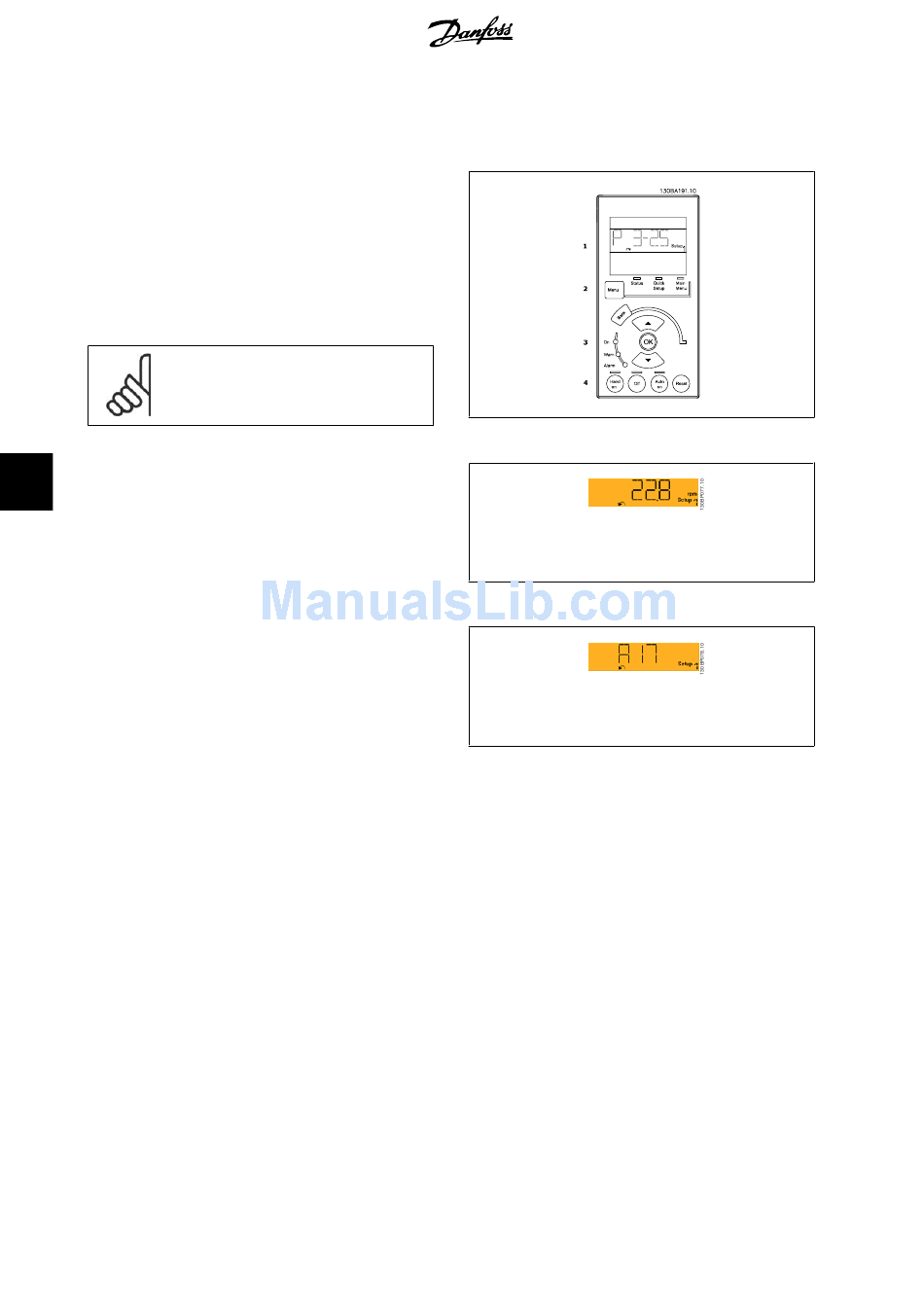

Illustration 7.1: Numerical LCP (NLCP)
Illustration 7.2: Status display example
Illustration 7.3: Alarm display example
