Parameter Description
16-69 Pulse Output #27 [Hz]
Range: Function:
0 [0 - 40000 ] View the actual value of impulses applied to
*
terminal 27 in digital output mode.
16-70 Pulse Output #29 [Hz]
Range: Function:
0 [0 - 40000 ] View the actual value of pulses to terminal 29
*
in digital output mode.

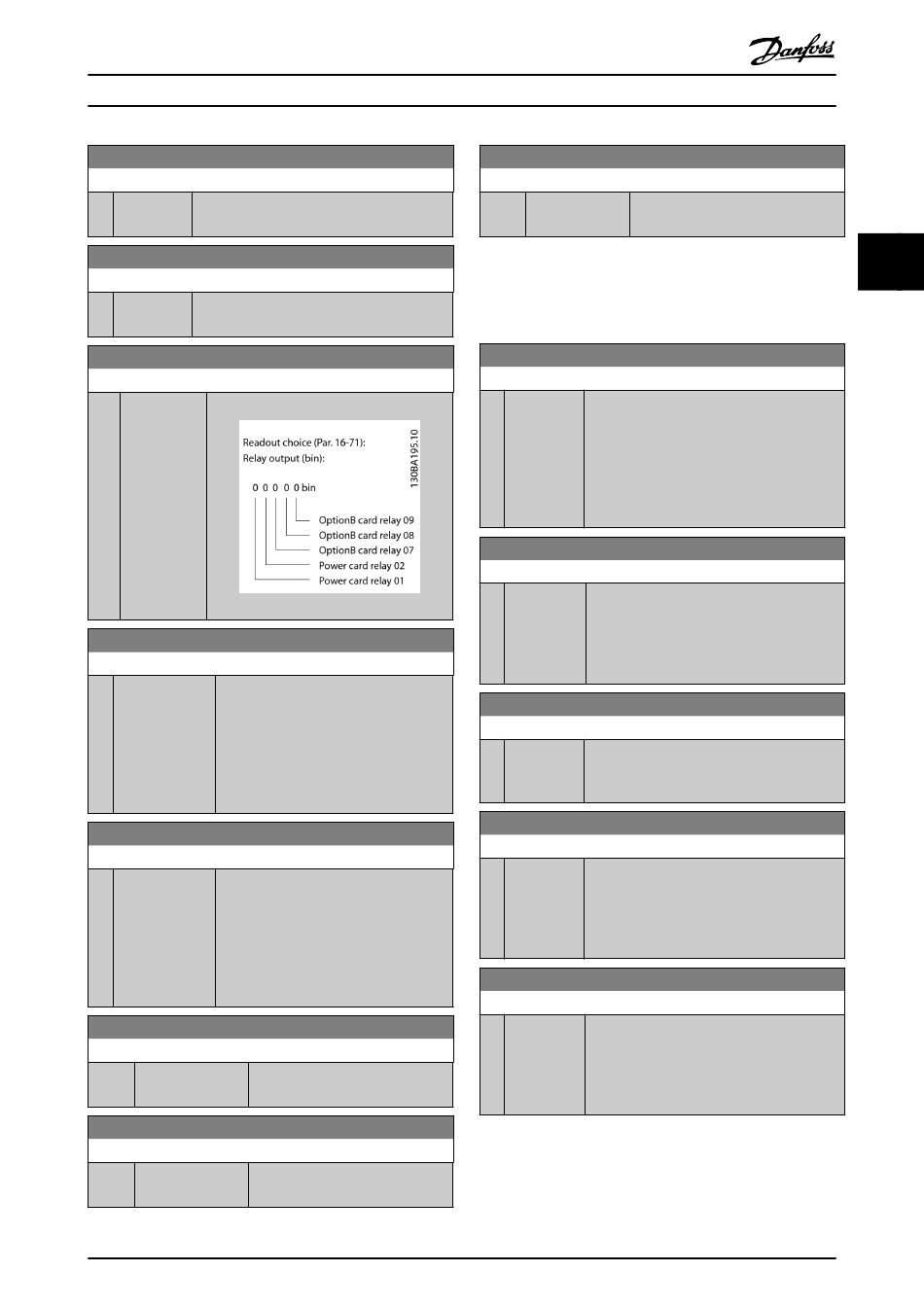

16-71 Relay Output [bin]
Range: Function:
0 [0 - 511 ] View the settings of all relays.
*
16-72 Counter A
Range: Function:
0 [-2147483648 - View the present value of Counter A.
*
2147483647 ] Counters are useful as comparator
operands, see 13-10 Comparator Operand.
The value can be reset or changed either
via digital inputs (parameter group 5-1*)
or by using an SLC action (13-52 SL
Controller Action).
16-73 Counter B
Range: Function:
0 [-2147483648 - View the present value of Counter B.
*
2147483647 ] Counters are useful as comparator
operands (13-10 Comparator Operand).
The value can be reset or changed either
via digital inputs (parameter group 5-1*)
or by using an SLC action (13-52 SL
Controller Action).
16-75 Analog In X30/11
Range: Function:
0.000 [-20.000 - 20.000 ] View the actual value at input
*
X30/11 of MCB 101.
16-76 Analog In X30/12
Range: Function:
0.000 [-20.000 - 20.000 ] View the actual value at input
*
X30/12 of MCB 101.
®
VLT HVAC Drive Programming Guide
16-77 Analog Out X30/8 [mA]
Range:
0.000
3.16.5 16-8* & FC Port
Parameters for reporting the BUS references and control
words.
16-80 Fieldbus CTW 1
Range:
0
16-82 Fieldbus REF 1
Range:
0
16-84 Comm. Option STW
Range:
0
16-85 FC Port CTW 1
Range:
0
16-86 FC Port REF 1
Range:
0
®
MG.11.CC.02 - VLT is a registered Danfoss trademark
Function:
[0.000 - 30.000 ] View the actual value at input X30/8
*
in mA.
Function:
[0 - 65535 ] View the two-byte Control word (CTW)
*
received from the Bus-Master. Interpretation of
the Control word depends on the option
installed and the Control word profile selected
in 8-10 Control Profile.
For more information please refer to the
relevant manual.
Function:
[-200 - View the two-byte word sent with the control
*
200 ] word form the Bus-Master to set the reference
value.
For more information please refer to the
relevant fieldbus manual.
Function:
[0 - 65535 ] View the extended comm. option status word.
*
For more information please refer to the
relevant manual.
Function:
[0 - 65535 ] View the two-byte Control word (CTW)
*
received from the Bus-Master. Interpretation of
the control word depends on the option
installed and the Control word profile selected
in 8-10 Control Profile.
Function:
[-200 - View the two-byte Status word (STW) sent to
*
200 ] the Bus-Master. Interpretation of the Status
word depends on the fieldbus option installed
and the Control word profile selected in
8-10 Control Profile.
