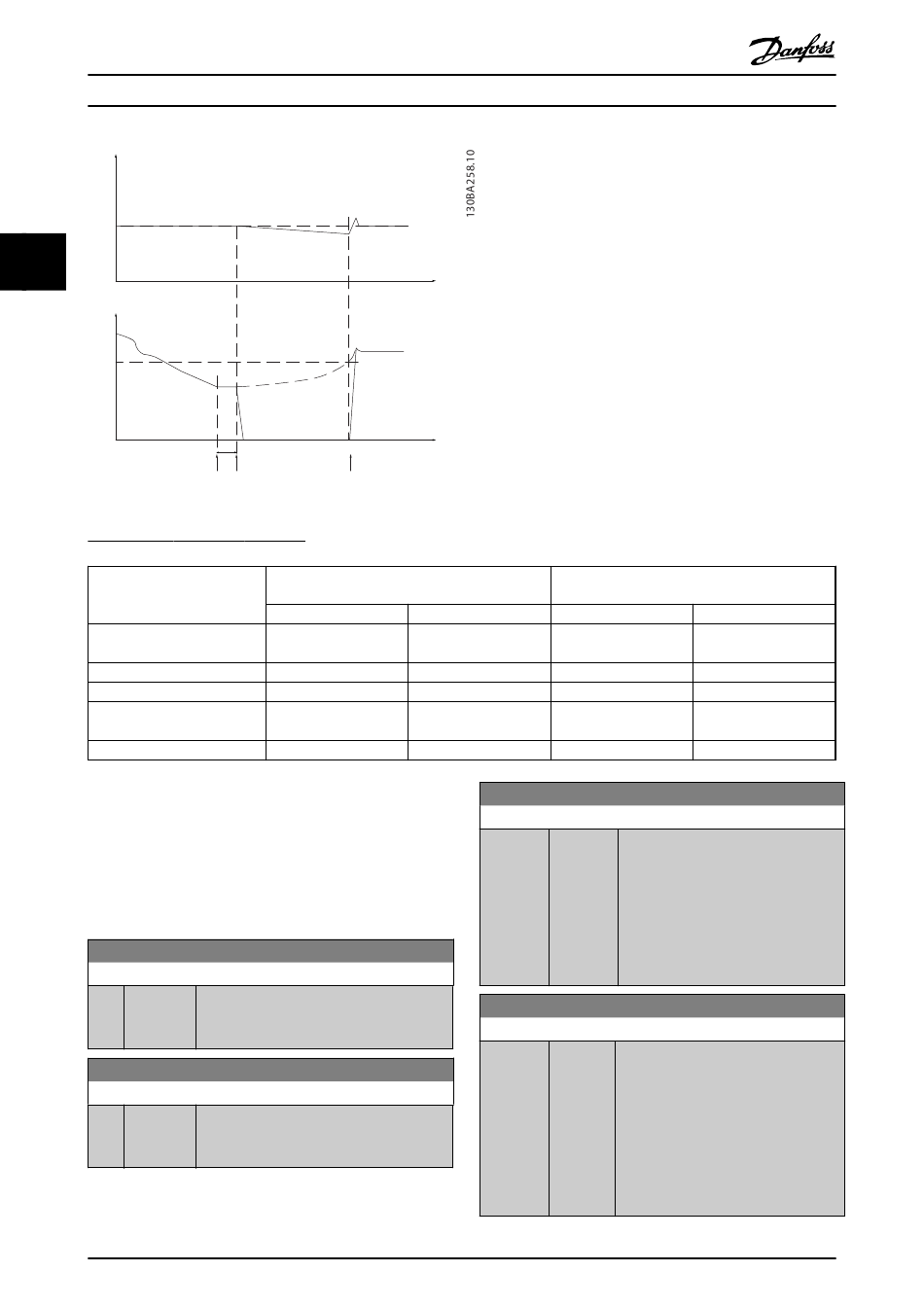

Danfoss VLT Series Programming Manual page 153

Parameter Description
p
(Pressure)
P
Set
3 3
f f
(Frequency)
Ref Out
f
Ref /
f
Wake
No/Low Flow
detected
Configuration possibilities, overview:
No Flow detection (pumps
only)
Low speed detection
External signal
Pressure/Temperature
(transmitter connected)
Output frequency
NOTE
Sleep Mode will not be active when Local Reference is
active (set speed manually by means of arrow buttons on
the LCP). See 3-13 Reference Site.
Does not work in Hand-mode. Auto set-up in open loop
must be carried out before setting input/output in closed
loop.
22-40 Minimum Run Time
Range:
10 s [0 - 600 s] Set the desired minimum running time for
*
22-41 Minimum Sleep Time
Range:
10 s [0 - 600 s] Set the desired Minimum Time for staying in
*
