3.18 Main Menu - FC Closed Loop - Group 20

This meter group is used for configuring the closed loop PID Controller, that controls the output frequency of the frequency
converter.
3.18.1 20-0* Feedback
3 3

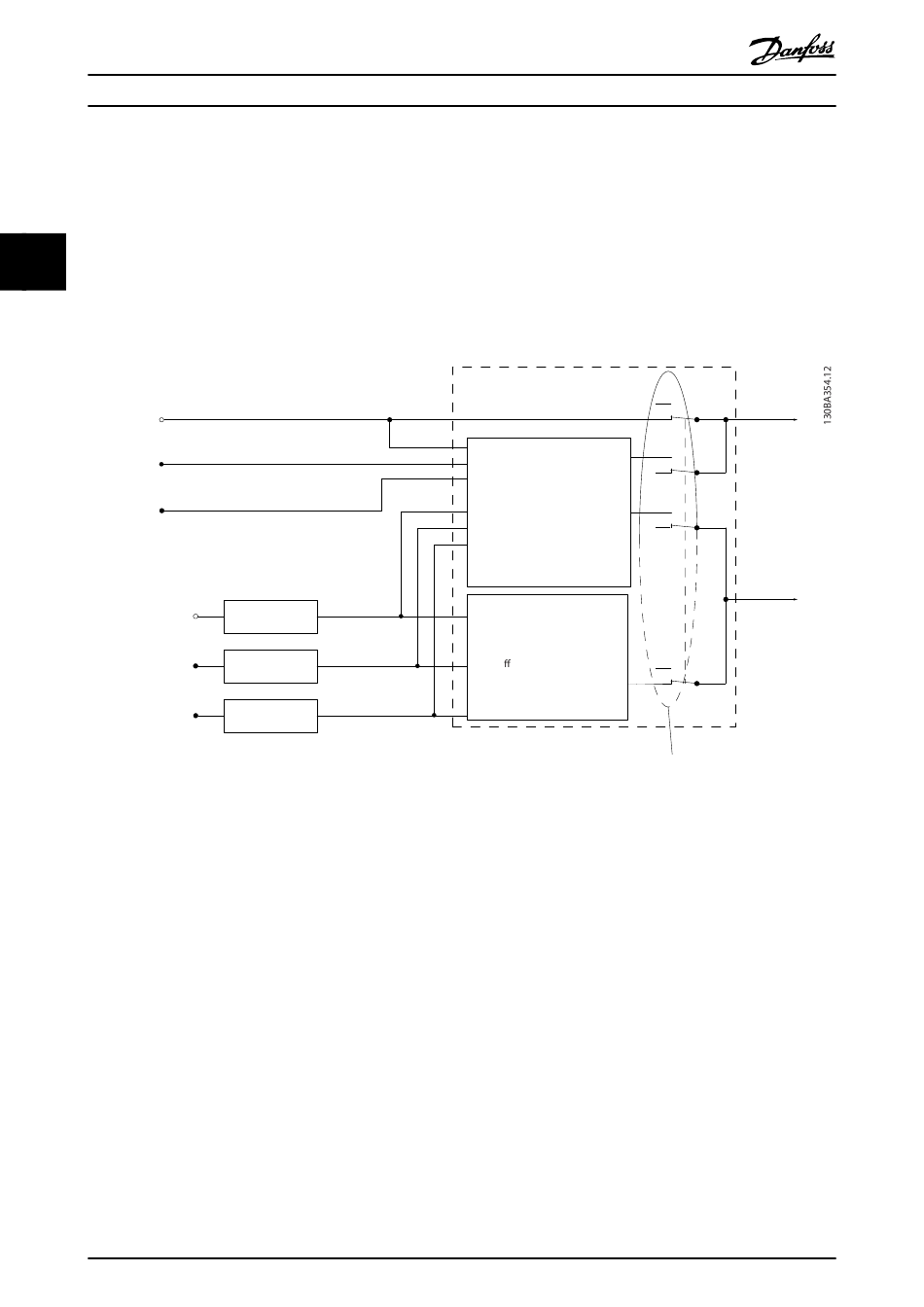

This meter group is used to configure the feedback signal for the frequency converter's closed loop PID Controller. Whether
the frequency converter is in Closed Loop Mode or Open Loop Mode, the feedback signals can also be shown on the
frequency converter's display, be used to control a frequency converter analog output, and be transmitted over various
serial communication protocols.
Setpoint 1
P 20-21
Setpoint 2
P 20-22
Setpoint 3
P 20-23
Feedback 1 Source
P 20-00
Feedback 2 Source
P 20-03
Feedback 3 Source
P 20-06
128
®
VLT HVAC Drive Programming Guide
Feedback 1
Feedback conv.
P 20-01
Feedback conv. Feedback 2
P 20-04
Feedback conv. Feedback 3
P 20-07
MG.11.CC.02 - VLT
Multi setpoint min.
Multi setpoint max.
Feedback 1 only
Feedback 2 only
Feedback 3 only
Sum (1+2+3)
Di erence (1-2)
Average (1+2+3)
Minimum (1|2|3)
Maximum (1|2|3)
®
is a registered Danfoss trademark
Setpoint to
0% Reference
Handling
0%
0%
Feedback
0%
Feedback Function
P 20-20
