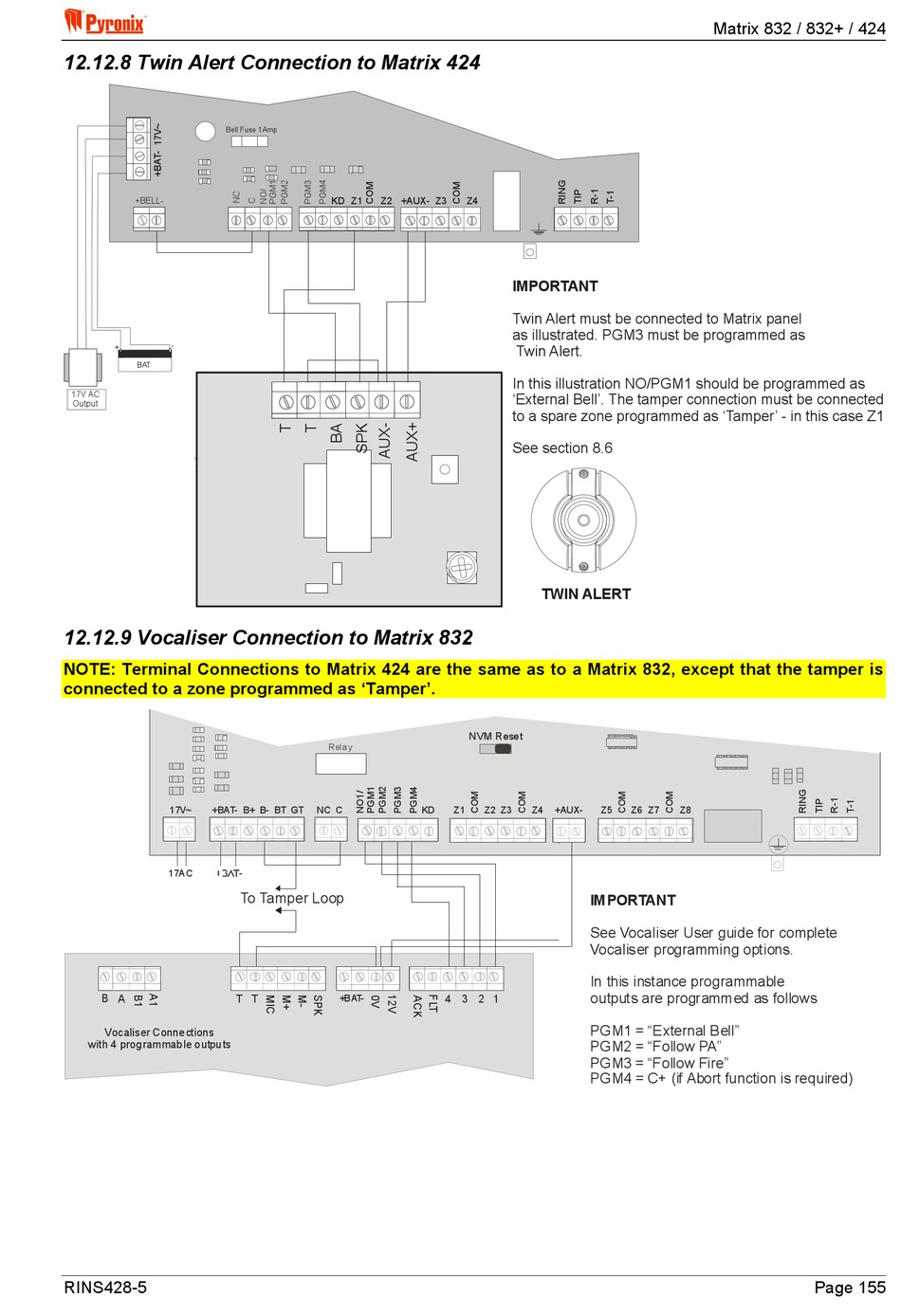

12.12.8 Twin Alert Connection to Matrix 424

Bell Fuse 1Amp
+BELL-
-
+
BAT
17V AC
Output

12.12.9 Vocaliser Connection to Matrix 832

NOTE: Terminal Connections to Matrix 424 are the same as to a Matrix 832, except that the tamper is
connected to a zone programmed as 'Tamper'.
17V~ +BAT- B+ B- BT GT
17AC
B A
Vocaliser Conne ctions
with 4 prog rammab le o utpu ts
RINS428-5
KD Z1 Z2 +AUX- Z3
Relay
NC C
To Tamper Loop
T T
Z4
IMPORTANT
Twin Alert must be connected to Matrix panel
as illustrated. PGM3 must be programmed as
Twin Alert.
In this illustration NO/PGM1 should be programmed as
'External Bell'. The tamper connection must be connected
to a spare zone programmed as 'Tamper' - in this case Z1
See section 8.6
TWIN ALERT
NVM Rese t
KD Z1 Z2 Z3 Z4 +AUX-
IMPORTANT
See Vocaliser User guide for complete
Vocaliser programming options.
In this instance programmable
outputs are programmed as follows
4 3 2 1
PGM1 = "External Bell"
PGM2 = "Follow PA"
PGM3 = "Follow Fire"
PGM4 = C+ (if Abort function is required)
Matrix 832 / 832+ / 424
Z5 Z6 Z7 Z8
Page 155
