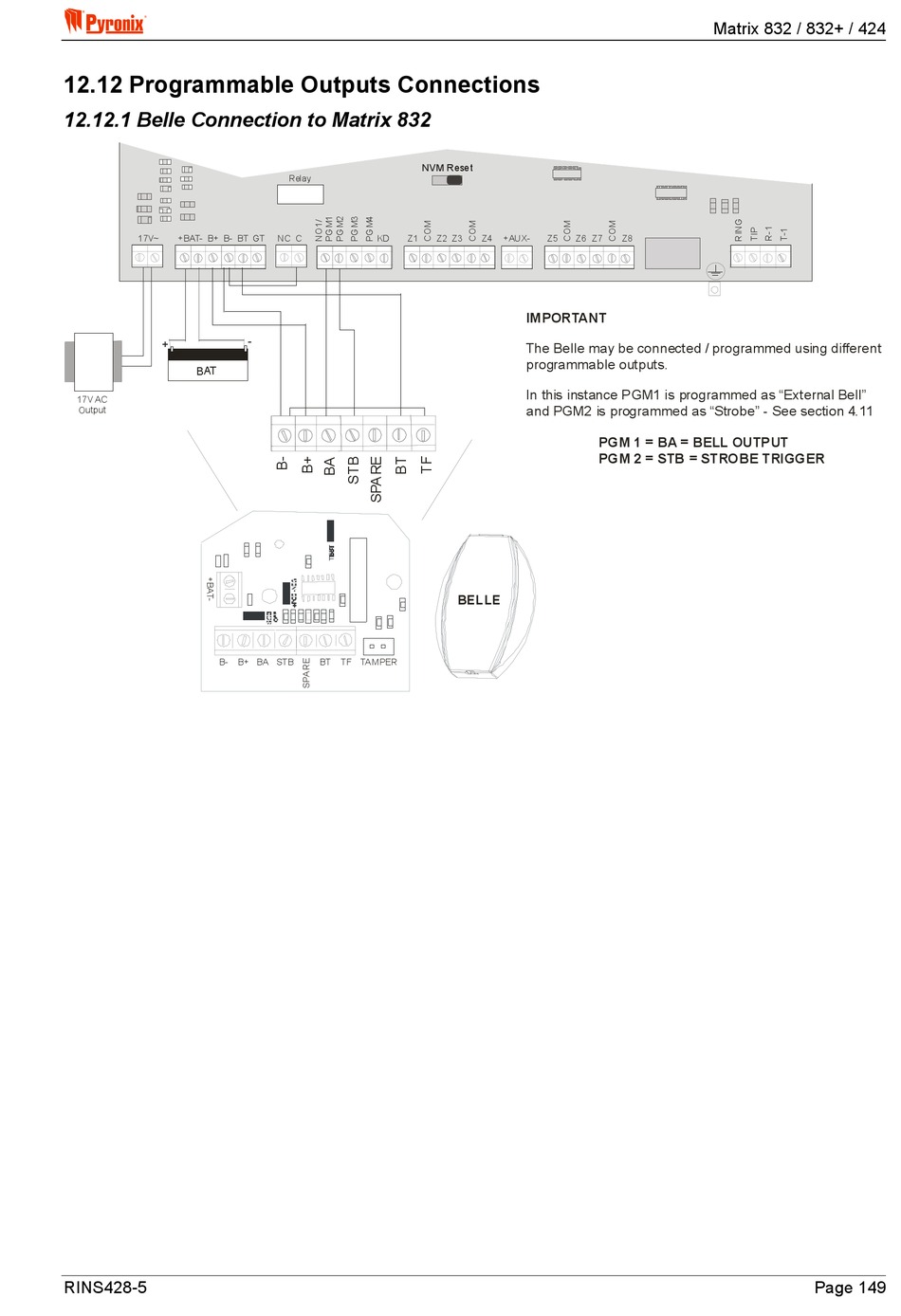

12.12 Programmable Outputs Connections

12.12.1 Belle Connection to Matrix 832

17V~ +BAT- B+ B- BT GT
B-
RINS428-5
Relay
NC C KD Z1
B+ BA STB BT TF TAMPER
NVM Rese t
Z2 Z3 Z4 +AUX- Z5 Z6 Z7
IMPORTANT
The Belle may be connected / programmed using different
programmable outputs.
In this instance PGM1 is programmed as "External Bell"
and PGM2 is programmed as "Strobe" - See section 4.11
BELLE
Matrix 832 / 832+ / 424
Z8
PGM 1 = BA = BELL OUTPUT
PGM 2 = STB = STROBE TRIGGER
Page 149
