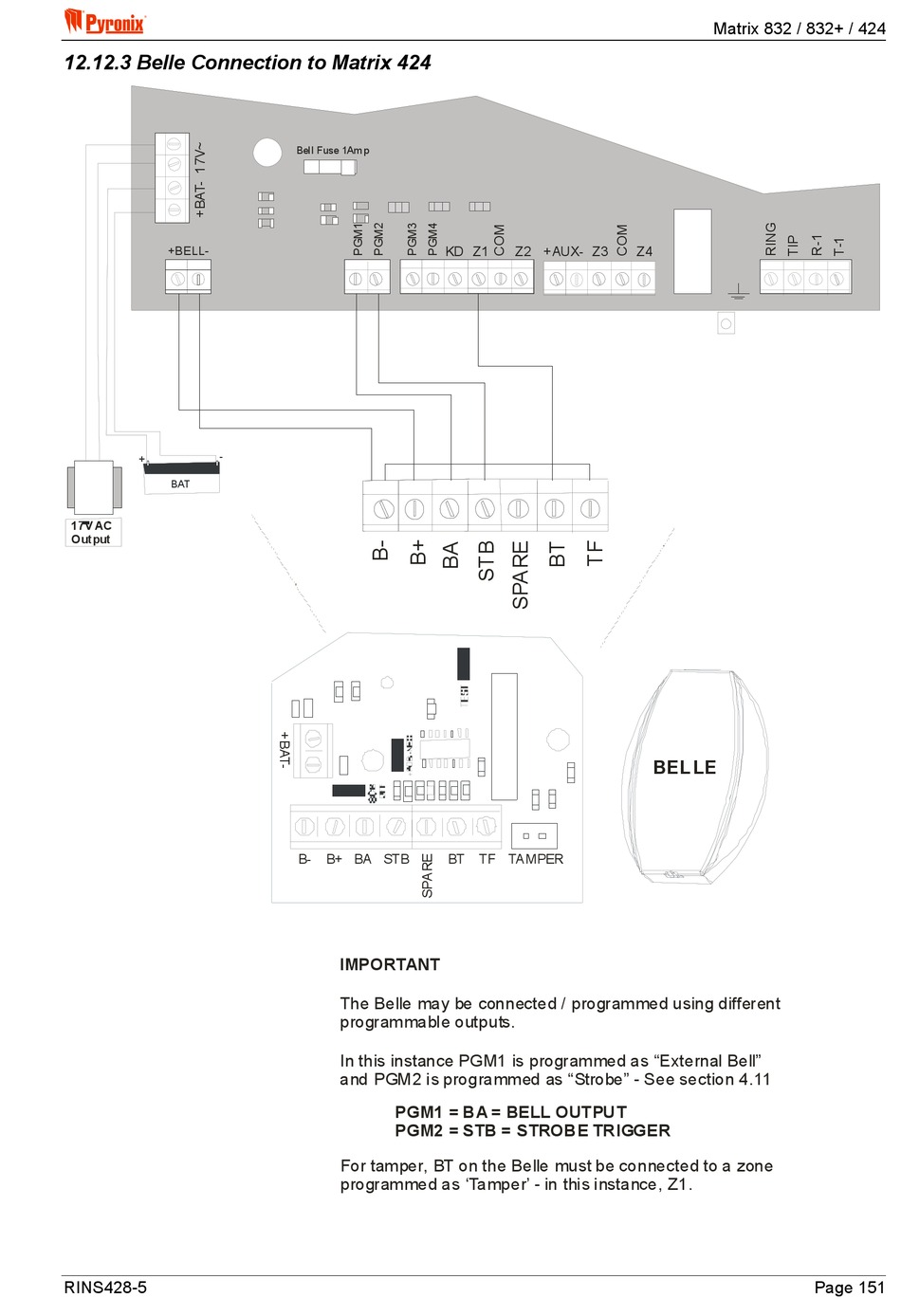

12.12.3 Belle Connection to Matrix 424

+BELL-
-
+
BAT
17V AC
Output
RINS428-5
Bel l Fuse 1Am p
KD Z1
B- B+ BA STB BT
IMPORTANT
The Belle may be connected / programmed using different
programmable outputs.
In this instance PGM1 is programmed as "External Bell"
and PGM2 is programmed as "Strobe" - See section 4.11
PGM1 = BA = BELL OUTPUT
PGM2 = STB = STROBE TRIGGER
For tamper, BT on the Belle must be connected to a zone
programmed as 'Tamper' - in this instance, Z1.
Z2 +AUX- Z3 Z4
TF TAMPER
Matrix 832 / 832+ / 424
BELLE
Page 151
