Matrix 832 / 832+ / 424

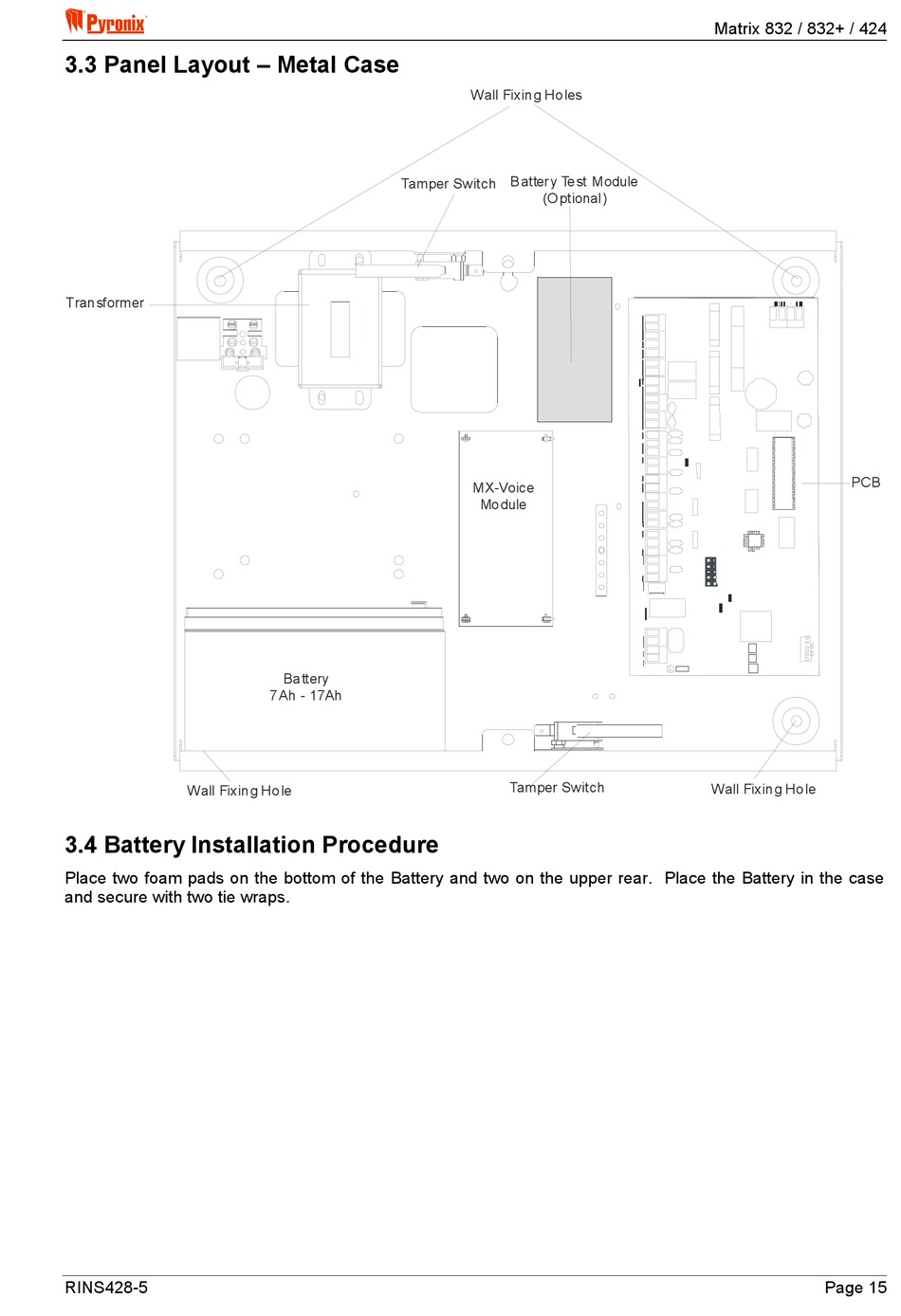

3.3 Panel Layout – Metal Case
Wall Fixin g Ho les
Tamper Switch B atter y Te st Module
(O ptional )
Tran sformer
PCB
MX-Voice
Mo dule
Ba ttery
7 Ah - 17Ah
Tamper Switch
Wall Fixin g Ho le
Wall Fixin g Ho le

3.4 Battery Installation Procedure

Place two foam pads on the bottom of the Battery and two on the upper rear. Place the Battery in the case
and secure with two tie wraps.
RINS428-5 Page 15
