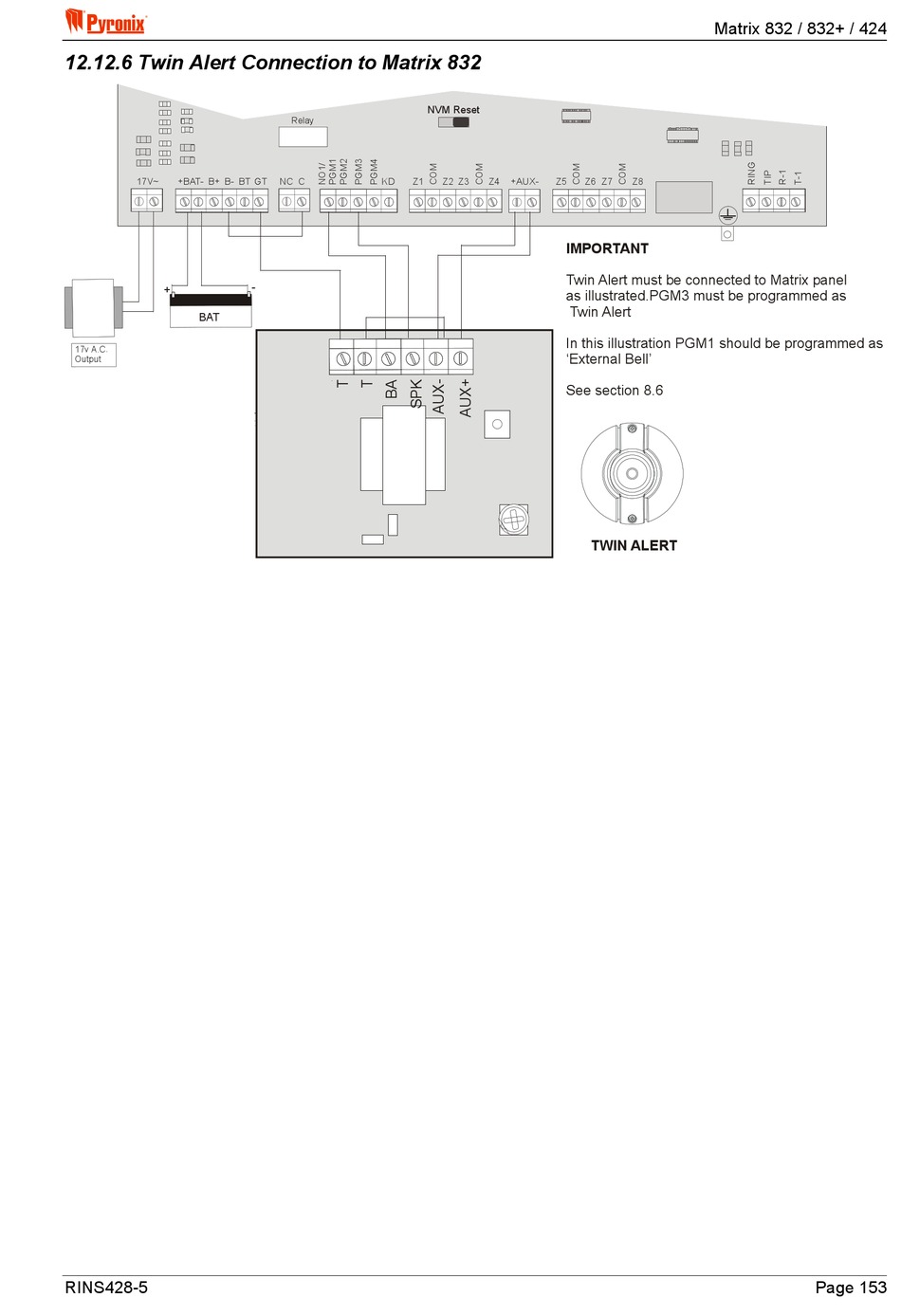

12.12.6 Twin Alert Connection to Matrix 832

17V~ +BAT- B+ B- BT GT
RINS428-5
NVM Reset
Relay
NC C KD Z1 Z2 Z3 Z4 +AUX- Z5 Z6 Z7 Z8
IMPORTANT
Twin Alert must be connected to Matrix panel
as illustrated.PGM3 must be programmed as
Twin Alert
In this illustration PGM1 should be programmed as
'External Bell'
See section 8.6
TWIN ALERT
Matrix 832 / 832+ / 424
Page 153
