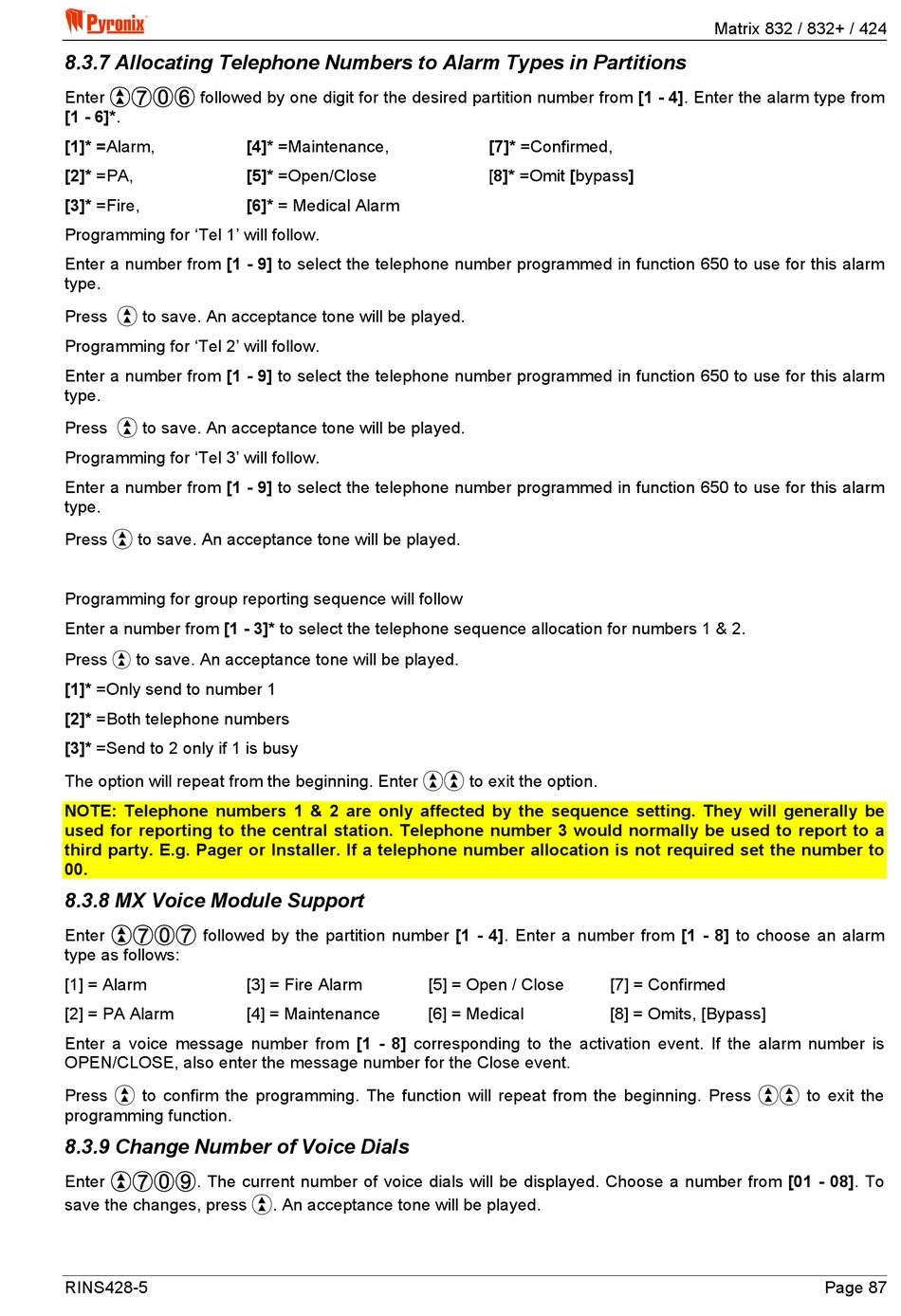

8.3.7 Allocating Telephone Numbers to Alarm Types in Partitions

BY X
Enter followed by one digit for the desired partition number from [1 - 4]. Enter the alarm type from
[1 - 6]*.
[1]* =Alarm,
[2]* =PA,
[3]* =Fire,
Programming for 'Tel 1' will follow.
Enter a number from [1 - 9] to select the telephone number programmed in function 650 to use for this alarm
type.
B
Press to save. An acceptance tone will be played.
Programming for 'Tel 2' will follow.
Enter a number from [1 - 9] to select the telephone number programmed in function 650 to use for this alarm
type.
B
Press to save. An acceptance tone will be played.
Programming for 'Tel 3' will follow.
Enter a number from [1 - 9] to select the telephone number programmed in function 650 to use for this alarm
type.
B
Press to save. An acceptance tone will be played.
Programming for group reporting sequence will follow
Enter a number from [1 - 3]* to select the telephone sequence allocation for numbers 1 & 2.
B
Press to save. An acceptance tone will be played.
[1]* =Only send to number 1
[2]* =Both telephone numbers
[3]* =Send to 2 only if 1 is busy
The option will repeat from the beginning. Enter
NOTE: Telephone numbers 1 & 2 are only affected by the sequence setting. They will generally be
used for reporting to the central station. Telephone number 3 would normally be used to report to a
third party. E.g. Pager or Installer. If a telephone number allocation is not required set the number to
00.

8.3.8 MX Voice Module Support

BY Y
Enter followed by the partition number [1 - 4]. Enter a number from [1 - 8] to choose an alarm
type as follows:
[1] = Alarm
[2] = PA Alarm
Enter a voice message number from [1 - 8] corresponding to the activation event. If the alarm number is
OPEN/CLOSE, also enter the message number for the Close event.
B
Press to confirm the programming. The function will repeat from the beginning. Press
programming function.

8.3.9 Change Number of Voice Dials

BY [
Enter . The current number of voice dials will be displayed. Choose a number from [01 - 08]. To
save the changes, press
RINS428-5
[4]* =Maintenance,
[5]* =Open/Close
[6]* = Medical Alarm
[3] = Fire Alarm
[4] = Maintenance
B
. An acceptance tone will be played.
[7]* =Confirmed,
[8]* =Omit [bypass]
BB
to exit the option.
[5] = Open / Close
[6] = Medical
Matrix 832 / 832+ / 424
[7] = Confirmed
[8] = Omits, [Bypass]
BB
to exit the
